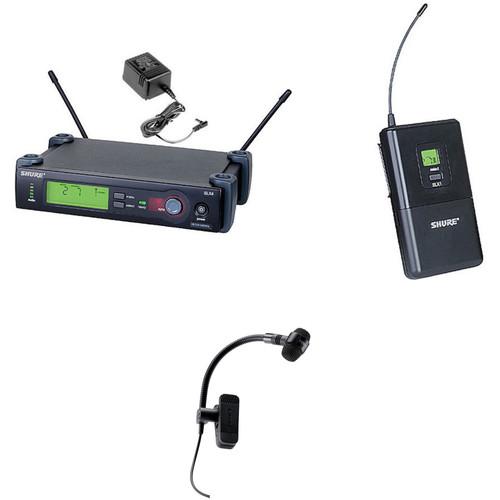

User Manual for Shure SLX4 UHF Wireless Receiver Bodypack Transmitter and PGA98H Horn Microphone Kit Click to enlarge the picture
Contents of the user manual for the Shure SLX4 UHF Wireless Receiver Bodypack
- Product category: Wireless Systems Shure
- Brand: Shure
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Shure Wireless Systems
|
User manual for the Shure SLX4 UHF Wireless Receiver Bodypack contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Shure product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Shure user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Shure product will considerably shorten its lifespan!
|
Product description The Shure SLX4 UHF Wireless Receiver/Bodypack Transmitter and PGA98H Horn Microphone Kit from B&H includes the Shure SLX4 UHF wireless receiver, the SLX1 wireless bodypack transmitter, and the Shure PGA98H-TQG clip-on gooseneck cardioid condenser horn mic with a TA4F connector. Accessories include a power supply, two AA batteries, rackmount hardware, and two 1/4 wave antennas. This kit can be used to capture audio for woodwind and brass instruments in applications for live stage, theater, and recording environments. - Shure SLX4 Diversity UHF Wireless Microphone Receiver (G5: 494 to 518 MHz) The Shure SLX4 is a UHF wireless microphones receiver designed for use with the Shure SLX wireless microphone series. The diversity design allows dual receiver circuits and antennas to compete for the strongest possible reception. XLR microphone level, and 1/4" phone line level outputs are featured. A comprehensive LCD display provides Frequency, Group, and Channel information, as well as transmitter battery status, audio level, and more. Note: For system compatibility, the component's frequency MUST match your existing system/component frequency.
- UHF Diversity
- The SLX4 receiver features UHF diversity reception. Dual receivers compete for the strongest possible reception, reducing noise and dropout due to RF interference
- Mic & Line Level Output
- The SLX4 receiver features an XLR mic level and 1/4" phone line level output
- Sync Between Transmitter & Receiver
- Infrared link automatically syncs the transmitter and receiver
UPC: 042406146265 - Shure SLX1 Wireless Bodypack Transmitter (G5: 494 to 518 MHz) The SLX1 Wireless Bodypack Transmitter from Shure is ideal for use with headworn, lavalier, and instrument microphones, as well as with guitars and basses. Shure's Audio Reference Companding technology provides premium sound quality, even at high audio levels.
- Automatic transmitter setup
- Backlit LCD with timeout feature
- Frequency and power lockout
- Two AA batteries (included) provide up to eight hours of continuous use
UPC: 042406146203 - Shure PGA98H-TQG Clip-On Cardioid Condenser Horn Mic with TA4F The Shure PGA98H-TQG is a professional-quality cardioid condenser gooseneck microphone that is optimized for woodwind and brass instruments. It can be used to capture audio in various environments for applications such as live stage, theater, recording studios, and more. The PGA98H-TQG's updated industrial design features a black metallic finish and grill; also, its flexible gooseneck design is featured with an integrated horn clamp and a TA4F connector, which is compatible with Shure wireless microphone systems (sold separately). The PGA98H-TQG includes a windscreen and a zippered pouch for protection during storage or transport.
- Tailored microphone cartridge design for clear reproduction of wind instrument sound sources
- Flexible gooseneck design makes accurate positioning quick and easy
- Integrated horn clamp for quick and easy mounting
- Cardioid polar pattern picks up audio from the source while rejecting unwanted noise
- Updated industrial design with black metallic finish and grill for unobtrusive visual presence
- Shure quality design and construction for durable performance in rigorous environments
UPC: 042406396738 In the Box - SLX4 Diversity UHF Wireless Microphone Receiver (G5: 494 to 518 MHz) xbcwcxtaawcfyvefszxbqtdtqyxssdb
- Power Supply
- Rackmount Hardware
- 2 x 1/4 Wave Antennas
- Limited 2-Year Warranty
- SLX1 Wireless Bodypack Transmitter (G5: 494 to 518 MHz)
- PGA98H-TQG Clip-On Cardioid Condenser Horn Mic with TA4F
Table of Contents
|
Upload User Manual
Have you got an user manual for the Shure SLX4 UHF Wireless Receiver Bodypack Transmitter and PGA98H Horn Microphone Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - Shure SLX4 Diversity UHF Wireless Microphone Receiver (G5: 494 to 518 MHz)
| Type of Receiver | UHF Diversity Half-Rack Mountable | | RF Carrier Frequency Range | G5: 494 to 518 MHz | | Approx. Working Range | 300' (100 m) | | Overall Frequency Response | 45 Hz to 15 kHz +/-2 dB | | Sensitivity | -105 dBm for 12 dB SINAD, typical | | Dynamic Range | > 100 dB A-weighted | | # Of Channels | 960 operating frequencies across a 24 MHz bandwidth | | Configuration | Impedance balanced | | Type of Output(s) | XLR connection: 200 Ohms
1/4" connection: 1 kOhm | | Image Rejection | > 70 dB, typical | | Headphone Monitoring | No | | Power Requirements | 12-18 VDC at 150 mA, supplied by external power supply | | Display | Backlit LCD | | Mounting Options | Short and long rackmount hardware included | | Antenna Type | Dual 1/4 wave BNC type | | Dimensions | 1.65 x 7.76 x 5.26" (42 x 197 x 134 mm) | | Weight | 1.8 lb (816 g) | | | | Box Dimensions (LxWxH) | 18.0 x 14.5 x 4.0" | - Shure SLX1 Wireless Bodypack Transmitter (G5: 494 to 518 MHz)
| Frequency Bands | G5: 494 to 518 MHz | | Audio Input Level | Mic: −10 dBV maximum
0 dB: +10 dBV maximum
-10 dB: +20 dBV maximum | | Gain Adjustment Range | 30 dB | | Input Impedance | 1 MOhm | | RF Output Power | 10-30 mW (varies by region) | | Pin Assignments | TA4M 1: Ground (cable shield)
2: +5 V Bias
3: Audio
4: Tied through active load to ground (on instrument adapter cable, pin 4 floats) | | Battery Type | 2 x AA size alkaline or rechargeable | | Battery Life | Up to 8 hours (alkaline) | | Material of Construction | Housing: Galvanized steel | | Dimensions (H x W x D) | 4.3 x 2.5 x 0.75" (108 x 64 x 19 mm) | | Weight | 3 oz (81 g), without batteries | | | | Box Dimensions (LxWxH) | 11.102 x 5.276 x 3.15" | - Shure PGA98H-TQG Clip-On Cardioid Condenser Horn Mic with TA4F
| Type | Electret condenser | | Frequency Response | 60 Hz to 20 kHz | | Polar Pattern | Cardioid | | Output Impedance | 850 ohms | | Sensitivity | -52 dBV/Pa (2.51 mV) 1 Pa=94 dB SPL @ 1 kHz, open circuit voltage | | Maximum SPL | 130 dB @ 1 kHz at 1% THD, 1 kOhms | | Self Noise | 27 dB SPL-A, A-weighted, typical | | Polarity | Positive pressure on diaphragm produces positive voltage on pin 2 with respect to pin 3 | | Output Connector | 4-pin female TA4F miniature XLR connector | | Cable Length | N/A | | Housing | Cast Zinc | | Power Requirements | 11-52 VDC phantom power (2 mA) | | Dimensions | Not specified by manufacturer | | Weight | 9.9 oz (280 g) | | | | Box Dimensions (LxWxH) | 10.1 x 5.0 x 3.4" |
