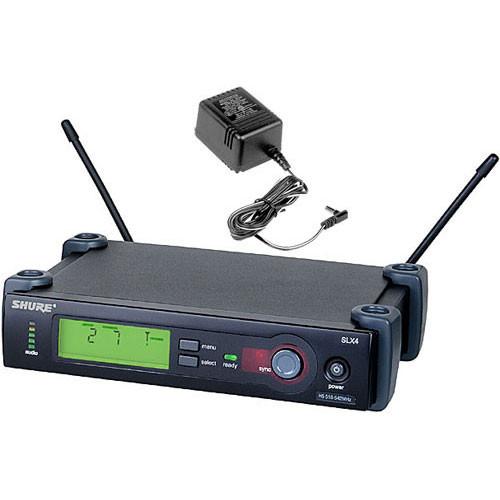

User Manual for Shure SLX4L Wireless Microphone Receiver Click to enlarge the picture
Contents of the user manual for the Shure SLX4L Wireless Microphone Receiver
- Product category: Wireless Receivers Shure
- Brand: Shure
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Shure Wireless Receivers
|
User manual for the Shure SLX4L Wireless Microphone Receiver contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Shure product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Shure user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Shure product will considerably shorten its lifespan!
|
Product description The Shure SLX4L is a UHF wireless microphones receiver, designed for use with the Shure SLX wireless microphone series. The diversity design allows dual receiver circuits and antennas to compete for the strongest possible reception. XLR microphone level, and 1/4" phone line level outputs are featured. A comprehensive LCD display provides Frequency, Group and Channel information as well as transmitter battery status, audio level and more. - UHF Diversity
- The SLX4L receiver features UHF diversity reception. Dual receivers compete for the strongest possible reception, reducing noise and dropout due to RF interference.
- Mic & Line Level Output
- The SLX4L receiver features an XLR mic level and 1/4" phone line level output.
- Sync Between Transmitter & Receiver
- The SLX4L receiver features an XLR mic level and 1/4" phone line level output.
UPC: 042406153669 In the Box Shure SLX4L Diversity UHF Wireless Microphone Receiver with Logic (H5 518-542 MHz) Rack-Mount Hardware PS-20 Power Supply 2 x Antennas 1 Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Shure SLX4L Wireless Microphone Receiver in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersShure SLX4L Specs | Type of Receiver | UHF Diversity Half-Rack Mountable | | RF Carrier Frequency Range | H5: 518-542 MHz | | Approx. Working Range | 300' (100m) | | Overall Frequency Response | 45Hz - 15kHz +/- 2dB | | Signal-to-Noise Ratio | > 100 dB A-weighted | | # Of Channels | 960 operating frequencies across a 24MHz | | Type of Output(s) | XLR connection: 200 ohms
1/4" connection: 1k ohm | | Headphone Monitoring | No | | Power Requirements | 12-18 VDC at 150 mA, supplied by external power supply | | Battery Type/Approx. Life | Not Applicable - external power only | | Display | Backlit LCD | | Mounting Options | Short and Long Rack-Mount Hardware Included | | Antenna Type | Dual 1/4 wave BNC type | | Dimensions | 1.65 x 7.76 x 5.26" (42 x 197 x 134mm) | | Weight | 1 lb 13 oz (816 g) | | | | Package Weight | 6.5 lb | | Box Dimensions (LxWxH) | 18.1 x 14.5 x 3.7" |
Rating70% users recommend this product to others. And what about you?
This product has already been rated by 58 owners. Add your rating and experience with the product.
