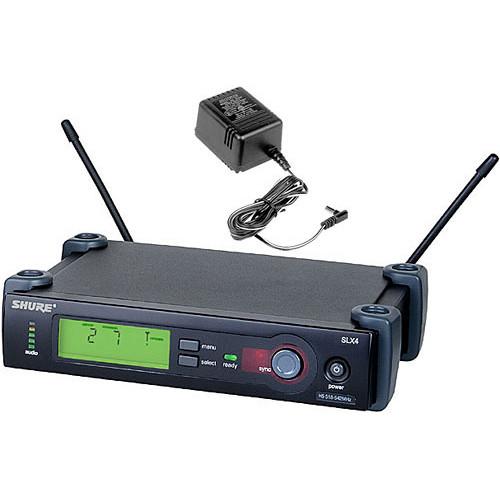

User Manual for Shure SLX4L Wireless Receiver with Antennas and Power Supply Click to enlarge the picture
Contents of the user manual for the Shure SLX4L Wireless Receiver with Antennas
- Product category: Wireless Receivers Shure
- Brand: Shure
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Shure Wireless Receivers
|
User manual for the Shure SLX4L Wireless Receiver with Antennas contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Shure product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Shure user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Shure product will considerably shorten its lifespan!
|
Product description The Shure SLX4L is a UHF wireless microphones receiver, designed for use with the Shure SLX wireless microphone series. The diversity design allows dual receiver circuits and antennas to compete for the strongest possible reception. XLR microphone level, and 1/4" phone line level outputs are featured. A comprehensive LCD display provides Frequency, Group and Channel information as well as transmitter battery status, audio level and more. - Automatic frequency selection
- Automatic transmitter setup
- 960 selectable frequencies across 24MHz bandwidth
- Detachable 1/4 wave antennas
- Microprocessor-controlled diversity
- Multi-function, backlit LCD
- Frequency and power lockout
- Volume control on rear of unit
- Non-slip bumpers for use out of rack
- Logic functionality for software echo cancellation and remote battery life monitoring
UPC: 042406153744 In the Box Shure SLX4L Wireless Receiver with Antennas and Power Supply (494-518MHz) PS20 Power Supply Rack Ears 2 x Antenna 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Shure SLX4L Wireless Receiver with Antennas and Power Supply in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersShure SLX4L Specs | Type of Receiver | UHF Diversity Half-Rack Mountable | | RF Carrier Frequency Range | 494-518MHz | | Approx. Working Range | 300' (100 m) | | Overall Frequency Response | 45Hz - 15KHz ±2dB | | Signal-to-Noise Ratio | > 100dB A-weighted | | # Of Channels | 960 operating frequencies across a 24MHz | | Type of Output(s) | XLR connection: 200 Ω
1/4" connection: 1kΩ | | Headphone Monitoring | No | | Power Requirements | 12-18 VDC at 150mA, supplied by external power supply | | Display | Backlit LCD | | Mounting Options | Short and Long Rack-Mount Hardware Included | | Antenna Type | Dual 1/4 wave BNC type | | Dimensions | 1.65 x 7.76 x 5.26" (42 x 197 x 134mm) | | Weight | 28.78 oz (816g) | | | | Package Weight | 6.5 lb | | Box Dimensions (LxWxH) | 18.2 x 14.7 x 3.7" |
