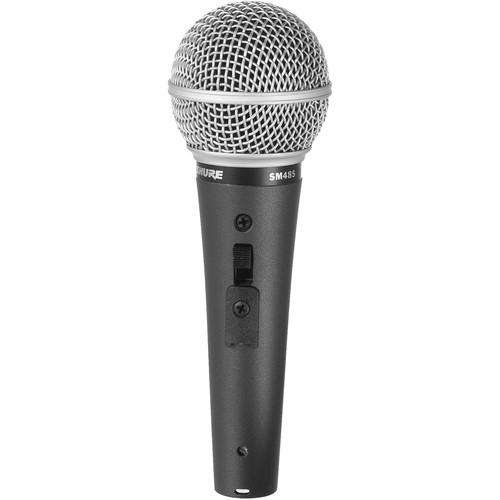

User Manual for Shure SM48S-LC Vocal Microphone with On Off Switch Click to enlarge the picture
Contents of the user manual for the Shure SM48S-LC Vocal Microphone with On
- Product category: Dynamic Microphones Shure
- Brand: Shure
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Shure Dynamic Microphones
|
User manual for the Shure SM48S-LC Vocal Microphone with On contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Shure product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Shure user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Shure product will considerably shorten its lifespan!
|
Product description - Shure Mike's "Ultimate Chopper Drop Test
- Shure Mics vs. Tour Bus
- Shure Mics vs Prairie Fire
The Shure SM48S-LC Vocal Microphone features a unidirectional (cardioid) dynamic design, well suited for lead vocals, backup vocals, and spoken word applications. The microphone features an internally shock-mounted cartridge, a steel mesh grille, and an internal pop filter for mitigating plosives. The durable construction can withstand the rigors of on-the-road wear and tear. The SM48S-LC is designed to perform consistently both outdoors and indoors, and when used for singing or speech applications. The microphone features an integrated on/off switch and includes a microphone clip and a zippered pouch. -
- Cardioid pickup pattern rejects off-axis sound and provides superior gain before feedback
- Frequency response tailored for vocals, with brightened midrange and bass roll-off to control proximity effect
- Shock-mounted cartridge for exceptional ruggedness and reduced handling noise
- Built-in "pop" filter that reduces plosive breath sounds and wind noise
- Supplied stand adapter and carrying/storage bag
- Lockable On/Off switch
- Shure quality and ruggedness
UPC: 042406051323 In the Box Shure SM48S-LC Vocal Microphone with On/Off Switch Zippered Pouch Microphone Clip Limited 2-Year Warranty User Manual PDF 419.7kb Table of Contents
|
Upload User Manual
Have you got an user manual for the Shure SM48S-LC Vocal Microphone with On Off Switch in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersShure SM48 Specs | Type | Dynamic | | Frequency Response | 55 Hz to 14 kHz | | Polar Pattern | Cardioid | | Impedance | Microphone rating impedance is 150 Ohms (270 Ohms actual) for connection to microphone inputs rated at 19 to 300 Ohms | | Output Level | Output Level (at 1 kHz): Open circuit voltage, -57.5 dBV/Pa (1.3 mV) 1 Pa = 94 dB SPL | | Polarity | Positive pressure on diaphragm produces positive voltage on pin 2 with respect to pin 3 | | Connector | XLR-M 3-pin | | Dimensions (Ø x L) | 2.1 x 6.5" / 54.2 x 166.0 mm | | Weight | 13.1 oz / 370.0 g | | | | Package Weight | 1.5 lb | | Box Dimensions (LxWxH) | 11.0 x 5.0 x 3.3" |
