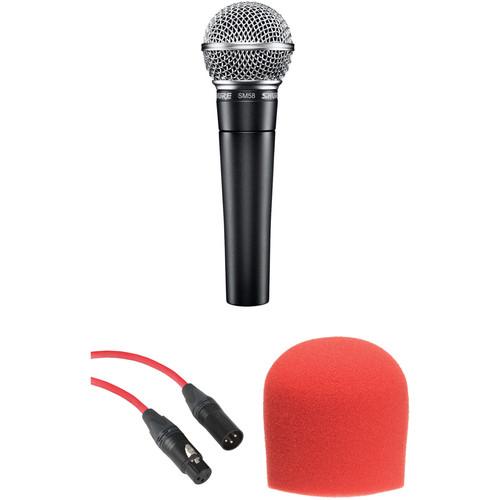

Shure SM58 Handheld Dynamic Microphone Kit

User Manual for Shure SM58 Handheld Dynamic Microphone Kit

• Product category: Dynamic Microphones Shure
• Brand: Shure
• Description and content of package
• Technical information and basic settings
• Frequently asked questions – FAQ
• Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
• Authorized service for Shure Dynamic Microphones

Product description

• Shure SM58-LC Vocal Microphone
  • Shure Mike's "Ultimate Chopper Drop Test
  • Shure Mics vs. Tour Bus
  • Shure Mics vs Prairie Fire
  The Shure SM58-LC Vocal Microphone features a unidirectional (cardioid) dynamic vocal design, well suited for professional vocal use in live performances, sound reinforcement, and studio recording. A built-in spherical filter minimizes wind and breath "pop" noise, while the cardioid pickup pattern isolates the main sound source while minimizing unwanted background noise. The microphone offers durable construction, a high-quality, internal shock-mount system, and a steel mesh grille for withstanding rough handling. The SM58-LC is designed to perform consistently both outdoors and indoors, and when used for singing or speech applications. The microphone includes a microphone clip and a zippered pouch.
  • • Frequency response tailored for vocals, with brightened midrange and bass roll-off
    • Uniform cardioid pickup pattern isolates the main sound source and minimizes background noise
    • Pneumatic shockmount system cuts down handling noise
    • Effective, built-in spherical wind and pop filter
    • Supplied with break-resistant microphone clip that rotates 180 degrees
    • High quality, rugged, and reliable
    • Cardioid (unidirectional) dynamic
    • Frequency response: 50 Hz to 15 kHz
  UPC: 042406051293
• Kopul Premium Performance 3000 Series XLR M to XLR F Microphone Cable - 25' (7.6 m), Red
  • Shure Mike's "Ultimate Chopper Drop Test
  • Shure Mics vs. Tour Bus
  • Shure Mics vs Prairie Fire
  The red Kopul Premium Performance 3000 Series XLR M to XLR F Microphone Cable (25') is designed to be an extremely quiet and flexible cable that is ideal for the most demanding live sound and performance applications. The cable is engineered to be durable and to provide protection against EMI, RFI, and static noise. While the cable's color-coding affords the ability to quickly differentiate between multiple connections on stage, it provides a pleasant aesthetic quality at the same time.

  Premium Performance 3000 Series cables are made from 24-AWG OFC copper wire that's wrapped with PE insulation and a conductive PVC inner shield. A cotton-yarn inner layer helps reduce electrostatic and microphonic noise. 95% dual-spiral shielding makes the cable resistant to EMI and RFI noise. The Neutrik XX silver connectors provide a high level of connectivity, and all the solder connections are shrink-wrapped for protection.
  • 95% dual-spiral shielding offers protection from EMI and RFI noise
  • Twin conductive PVC inner shielding provides 100% coverage of the core conductor. It helps keep the cable's signal from radiating and affecting nearby cables, and also helps prevent external EMI from penetrating to the cable's core
  • 24-AWG oxygen-free stranded copper inner core provides the best possible conductivity
  • Cotton yarn reduces electrostatic and microphonic noise
  • All solder points shrink-wrapped for protection
  • Neutrik XX silver connectors offer high conductivity
  • Caged type contact and improved ground contact
  UPC: 847628573574
• WindTech 900 Series Microphone Windscreen - 1-5/8" Inside Diameter (Red)
  • Shure Mike's "Ultimate Chopper Drop Test
  • Shure Mics vs. Tour Bus
  • Shure Mics vs Prairie Fire
  The WindTech 900 Series Microphone Windscreen is designed to fit any microphone measuring 1-5/8" (47.625mm) in diameter. The windscreen offers optimum wind diffusion and will fit select AKG, Audio-Technica, Audix, Beyerdynamic, Electro-Voice, Neumann, Sennheiser, and Shure microphones. Color: Red.
  • Made in the USA

• SM58-LC Vocal Microphone dybybaxdtszrrb
• Zippered Pouch
• Microphone Clip
• Limited 2-Year Warranty

• Kopul - Premium Performance 3000 Series XLR M to XLR F Microphone Cable - 25' (7.6 m), Red

• WindTech - 900 Series Microphone Windscreen - 1-5/8" Inside Diameter (Red)

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• Shure SM58-LC Vocal Microphone

  Sound Field	Mono
  Transducer	Dynamic
  Polar Pattern	Cardioid
  Frequency Range	50 Hz to 15 kHz
  Impedance	150 Ohms
  Sensitivity	-57.5 dBV/Pa at 1 kHz

  Output Connectors	1 x 3-Pin XLR
  Length	6.38" / 162 mm
  Diameter	2.01" / 51 mm
  Weight	0.82 lb / 372 g

  Box Dimensions (LxWxH)	10.2 x 4.95 x 3.45"

• Kopul Premium Performance 3000 Series XLR M to XLR F Microphone Cable - 25' (7.6 m), Red

  Connector 1	3-Pin XLR Male
  Connector 2	3-Pin XLR Female
  Cable Length	25' / 7.6 m
  Shielding	95% Spiral
  Wire Gauge	24 AWG
  Contact Plating	Silver

  Box Dimensions (LxWxH)	11.0 x 8.0 x 2.0"

• WindTech 900 Series Microphone Windscreen - 1-5/8" Inside Diameter (Red)

  Material

  Foam

  Box Dimensions (LxWxH)	5.0 x 3.5 x 3.0"
