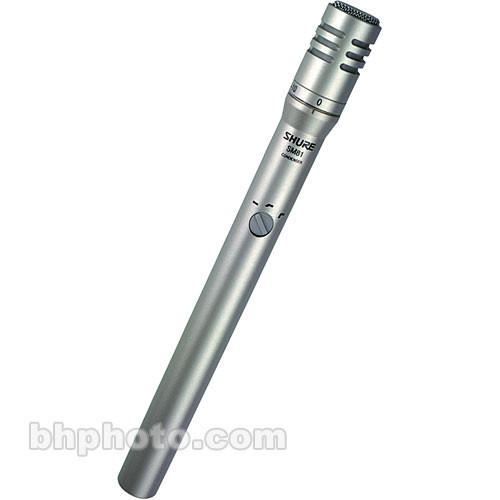

User Manual for Shure SM81-LC Cardioid Condenser Mic Click to enlarge the picture
Contents of the user manual for the Shure SM81-LC Cardioid Condenser Mic
- Product category: Instrument Microphones Shure
- Brand: Shure
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Shure Instrument Microphones
|
User manual for the Shure SM81-LC Cardioid Condenser Mic contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Shure product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Shure user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Shure product will considerably shorten its lifespan!
|
Product description - Shure Mike's "Ultimate Chopper Drop Test
- Shure Mics vs. Tour Bus
- Shure Mics vs Prairie Fire
The Shure SM81-LC is a cardioid condenser microphone used in live sound, broadcast, and recording scenarios. It features a flat-frequency response between 20 Hz and 20 kHz and provides a switchable low-pass filter that can be set to either 6 dB/octave or 18 dB/octave. Other features, such as a lockable -10 dB pad and SPL handling of 146 dB (with the pad on), make the microphone well suited for a variety of situations.
This mic sports a cardioid polar pattern that helps it achieve a high level of gain before inducing feedback, ensuring the mic will work well on the stage. This polar pattern also sports excellent off-axis rejection, helping to retain isolation in live and studio recordings.
The SM81-LC offers the kind of durability one would expect from Shure as well as low susceptibility to RF issues in the field. Its steel construction ensures the mic can be used in a variety of conditions, though phantom power is required to operate the SM81-LC. - Key Features at a Glance
-
- Uniform cardioid pick-up pattern provides lots of gain before feedback on stage, as well as rejection of off-axis sound
- Flat-frequency response from 20 Hz to 20 kHz for accurate reproduction of sound sources
- Selectable low-frequency response (flat, 6 dB/octave, or 18 dB/octave roll-off)
- Vinyl-coated steel construction and stainless steel screen resist wear and abuse
- High sound pressure level (SPL) handling
- Low susceptibility to RFI
- Lockable -10 dB attenuator switch
- Performs over a wide range of temperature and humidity conditions
- Phantom powered
- Rugged and reliable
UPC: 042406051194 In the Box Shure SM81-LC - Cardioid Instrument Condenser Microphone A57F Microphone Clip uxvuxvecxxtsyuveeswaubxadyauv (34A830) -10 dB Attenuator Lock (65A1797) Carrying/Storage Case (49A111) Foam Windscreen Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Shure SM81-LC Cardioid Condenser Mic in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersShure SM81 Specs | Transducer | (Electret Bias) Condenser | | Polar Pattern | Cardioid | | Frequency Response | 20 Hz to 20 kHz | | Signal-to-Noise Ratio | 78 dB (at 94 dB SPL) | | Maximum Input Sound Level | 136 dB (@ 250 Hz 0.5% THD)
146 dB (with Pad) | | Power Requirements | 11 to 52 VDC Phantom Power | | Output Impedance | 150 Ohms (85 Ohms Actual) | | Output Connectors | XLR-3M Type | | Pad | -10 dB Attenuation | | Low Frequency Roll-Off | -6 dB/Octave at 100 Hz
-18 dB/Octave at 80 Hz | | Sensitivity | -45 dBV/Pa, 5.6 mV (at 1 kHz) | | Self Noise | 16 dBA Typical
19 dB Typical (Weighted per DIN 45 405) | | Maximum SPL | 136 dB (1 kHz at 1% THD, 1 kOhm Load), 146 (-10 dB Pad On) | | Clipping Level | -4 dBv, 0.63 V (1 kHz at 0.25 THD, 1 kOhm Load) | | Hum & Noise | -3 dB, Typical at 60 Hz, Equivalent SPL/mOe | | Housing | Steel Construction with Vinyl Metallic Print Finish and Stainless Steel Screens | | Applications | Sound Reinforcement, Broadcast, and Studio Recording | | Operating Temperature | 20 to 120°F / -6.7 to 49°C | | Storage Temperature | -20 to 165°F / -29 to 74°C | | Relative Humidity | 0 to 95% | | Dimensions | Mic Body Diameter x Length:0.79 x 8.4" / 20 x 212 mm
Capsule Diameter: 0.9" / 23.5 mm | | Weight | 0.5 lb / 0.2 kg | | | | Package Weight | 1.8 lb | | Box Dimensions (LxWxH) | 11.9 x 6.0 x 3.1" |
