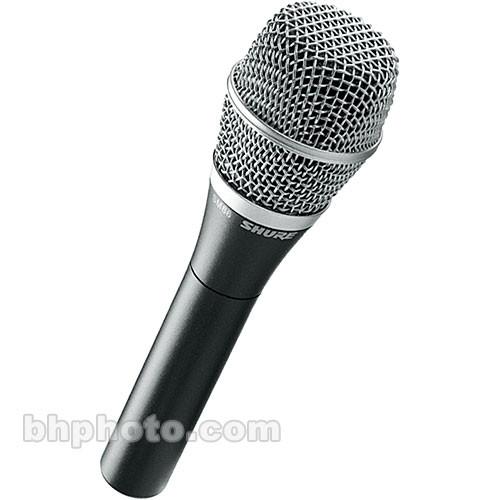

User Manual for Shure SM86 - Cardioid Condenser Handheld Microphone Click to enlarge the picture
Contents of the user manual for the Shure SM86 - Cardioid Condenser Handheld
- Product category: Handheld Performance Microphones Shure
- Brand: Shure
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Shure Handheld Performance Microphones
|
User manual for the Shure SM86 - Cardioid Condenser Handheld contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Shure product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Shure user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Shure product will considerably shorten its lifespan!
|
Product description - Shure Mike's "Ultimate Chopper Drop Test
- Shure Mics vs. Tour Bus
- Shure Mics vs Prairie Fire
The Shure SM 86 is a cardioid (uni-directional) condenser handheld microphone intended for use in sound-reinforcement and recording applications. The cardioid pattern is effective in reducing ambient, off-axis noise making it a suitable option for use near stage monitors, loud instruments etc. The condenser element requires between 11 to 52 Volts DC phantom power and produces a sensitivity far greater than that of dynamic microphones. Condenser elements provide higher output levels, frequency response, and dynamic range resulting in studio-level sonic quality. A built-in 3-stage shock-mount minimizes handling noise and an internal windscreen reduces noise caused by wind and breath sounds. It's rugged metal construction is made to withstand the rigors of touring and daily use. - Condenser Transformer
- Condenser elements are more sensitive resulting in greater output level, frequency response and dynamics. 11 to 52 Vdc Phantom Power is required.
- Cardioid Pattern
- The Cardioid pattern reduces off-axis signal resulting in greater performance around stage monitors, loud instruments etc.
- Internal Windscreen
- An internal windscreen reduces noise caused by wind and breath sounds.
- Internal Shock-Mount
- The element is protected with an internal shock-mount structure that also minimizes noise caused by handling.
UPC: 042406112406 In the Box Shure SM86 - Cardioid Condenser Handheld Microphone Microphone Clip Microphone Bag 5/8" to 3/8" Thread Adapter 2 Year Warranty User Manual PDF 1.6mbvqbwwebuufcecqcadswtwyazcqrywx Table of Contents
|
Upload User Manual
Have you got an user manual for the Shure SM86 - Cardioid Condenser Handheld Microphone in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersShure SM86 Specs | Transducer | (Electret Bias) Condenser | | Polar Pattern | Cardioid | | Frequency Response | 50Hz to 18,000Hz | | Maximum Input Sound Level | (at 1,000 Hz) 1,000 ohm load (1%THD): 147dB | | Power Requirements | 11 to 52 Vdc Phantom Power | | Output Impedance | 150 ohms at 1kHz
Recommended minimum load impedance: 600 ohms | | Output Connectors | Balanced 3-pin XLR | | Dimensions | 7.2 x .95" (183 x 24mm) (Length x Diameter) | | Weight | 278 grams (9.8 oz) | | | | Package Weight | 1.3 lb | | Box Dimensions (LxWxH) | 10.2 x 5.0 x 3.4" |
Rating100% users recommend this product to others. And what about you?
This product has already been rated by 60 owners. Add your rating and experience with the product.
