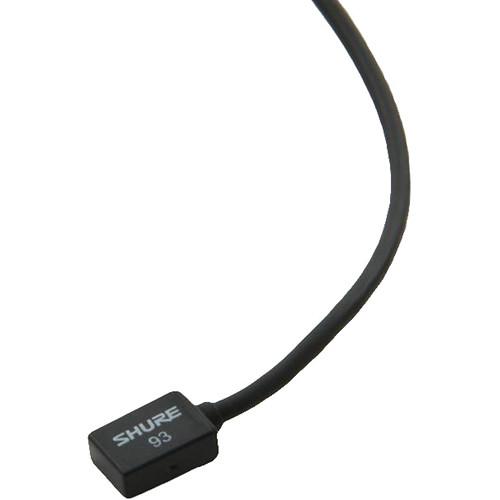

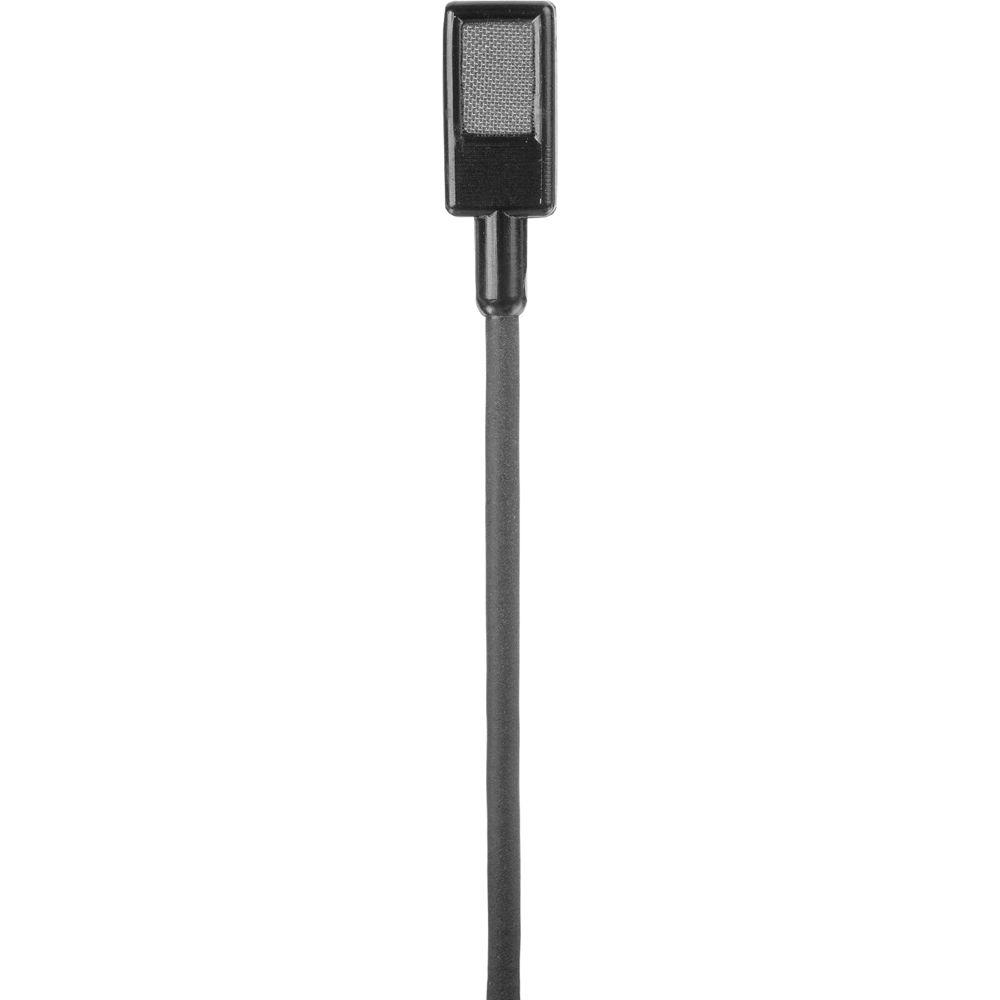

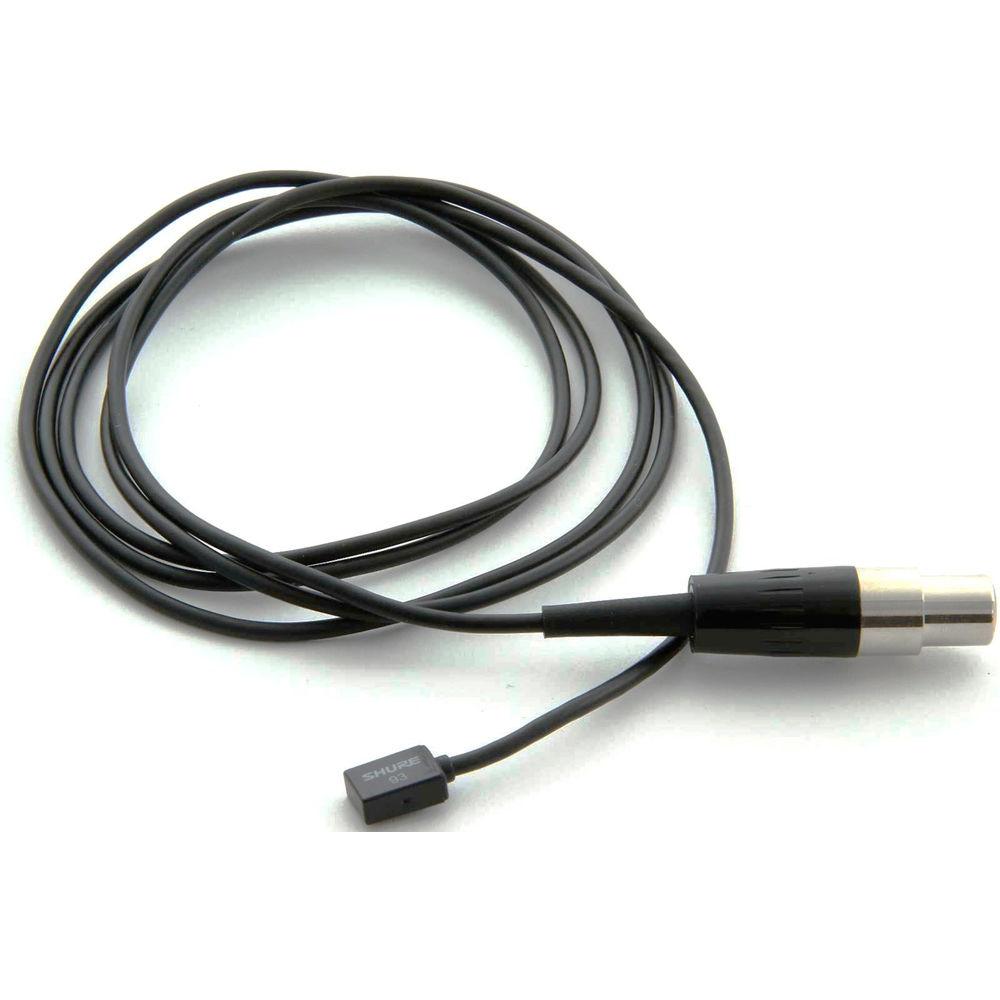

The SM93 is an omnidirectional, subminiature, lavalier electret condenser microphone designed for use in TV broadcasting, theater, and sound reinforcement applications where a visually unobtrusive microphone is desirable. Despite its small size, the 93 microphone element provides full, clear sound comparable to that of much larger microphones. Its frequency response is tailored to body-worn applications, with low-end roll-off and presence rise. Optimum pickup is achieved when the microphone is worn on the user's chest. However, high quality sound can also be obtained when the microphone is worn in the hair, sewn into clothing, or attached to an acoustic instrument such as a guitar. The SM93 is supplied with a sew-on mounting bracket, a mounting block with attached tie bar, and an acoustic windscreen to minimize wind noise in outdoor applications.
The SM93 is also supplied with a dual mounting block with attached tie bar. The SM93 is powered by phantom power supplied by broadcast, sound reinforcement or recording equipment, or an external phantom supply. The SM93 operates over an extremely wide voltage range of 11 to 52 VDC, covering both DIN and IEC phantom power standards. A dual-channel power supply (Shure Model PS1A) is available for providing phantom power to the SM93. - Subminiature lavalier design; ideal size for theater, television broadcasting, video, film, and sound reinforcement
- Small, inconspicuous mounting hardware
- Full, clear sound comparable to larger microphones
- Smooth extended frequency response with presence rise specially tailored for chest-worn microphone operation
- Controlled low-frequency roll-off reduces low-frequency clothing and room noise
- Low distortion, wide dynamic range
- Versatile mounting accessories allow a variety of low-visibility applications
- Preamplifier assembly can be pocketed, strapped to the body, or clipped to belt or waistband
- Wide-range phantom powering accepts all commonly used voltages
- Omnidirectional condenser

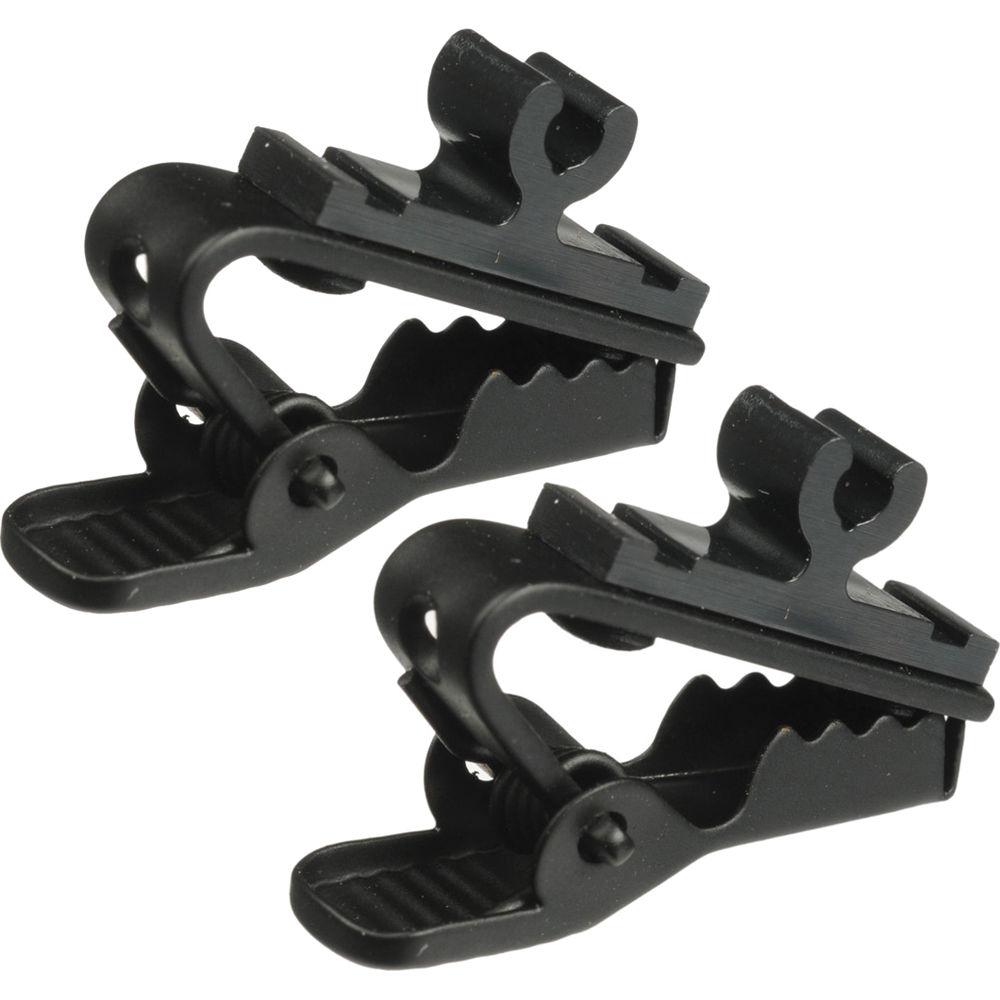

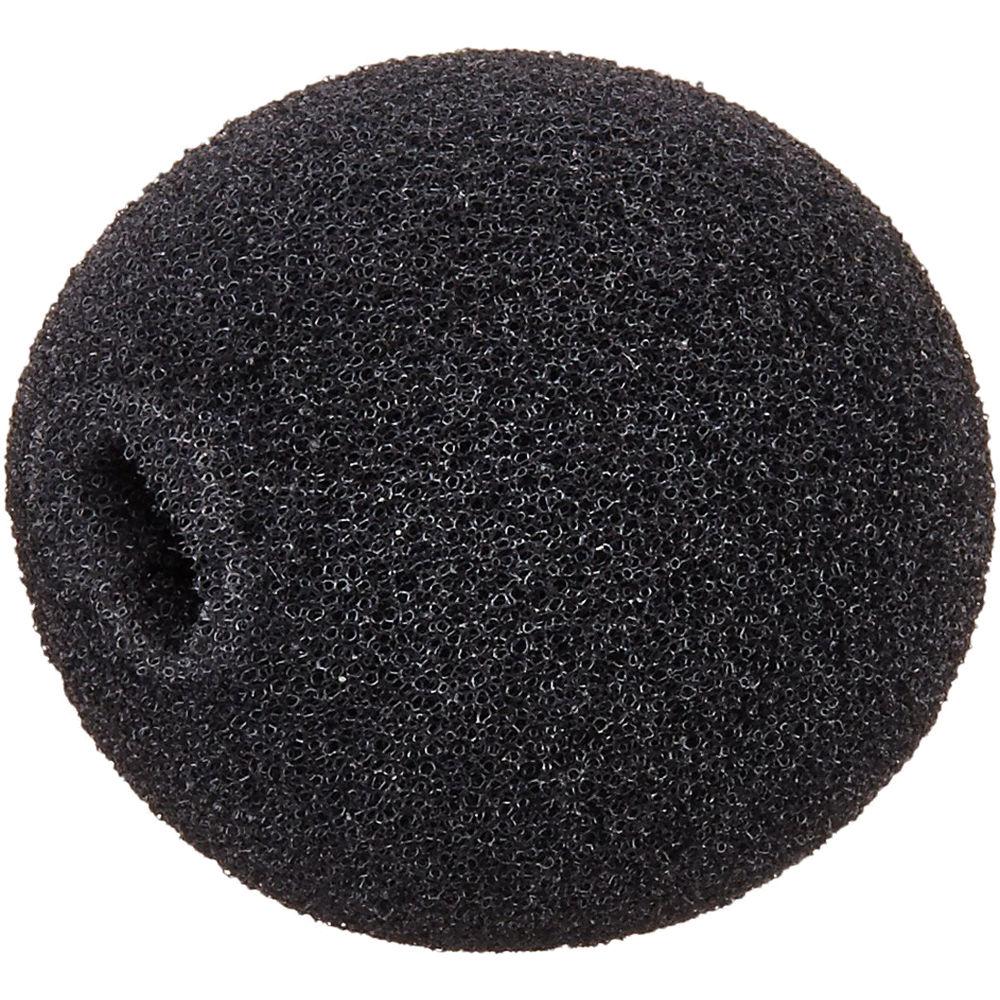

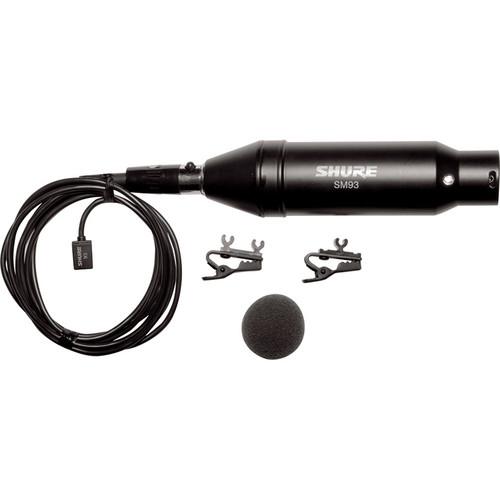

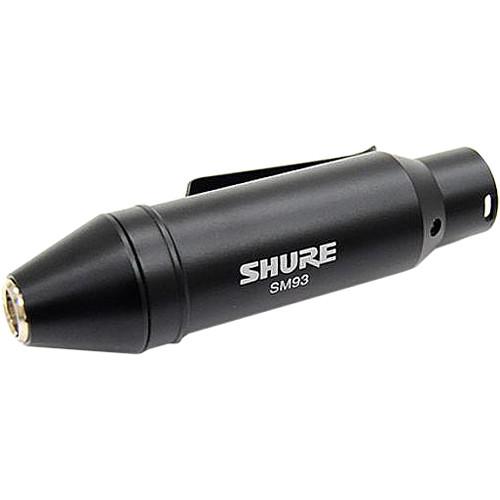

UPC: 042406053020 In the Box Shure SM93 - Omni-Directional Lavalier Condenser Microphone with Preamplifier (SM93) In-Line Preamplifier (65B1733) Black Sew-on Mounting Bracket (RK354SB) Black Tie Clip Assembly (RK307DB) Dual Black Tie Clip Assembly (26A13) Zippered Carry Bag (RK355WS) Black Windscreen 1 Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Shure SM93 - Micro-Lavalier Omnidirectional Microphone in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersShure SM93 Specs | Transducer | Electret Bias Condenser | | Polar Pattern | Omnidirectional | | Frequency Response | 80 Hz - 20 kHz | | Dynamic Range (Typical) | 98 dB | | Signal-to-Noise Ratio | 72 dB, (@ 94 dB SPL, IEC 651) | | Maximum Input Sound Level | 120 dB | | Power Requirements | Phantom 11 - 52 VDC | | Output Impedance | Rated at 150 ohms (90 ohms actual)
Recommended minimum load impedance: 800 ohms
(may be used with loads as low as 150 ohms with reduced clipping level) | | Output Connectors | XLR-3M Type, (termination from preamp output) | | Pad | None | | Low Frequency Roll-Off | 12 dB/Octave Roll-Off Below 100 Hz | | Applications | Ideal for theater, television broadcasting, video, film, and sound reinforcement | | Dimensions | Microphone: .24 x .37 x .15" (6.1 x 9.4 x 3.8 mm) WxHxD
Preamplifier: 3.9 x 1.1" (98.8 x 27 mm) LxDiameter | | Weight | Microphone: .27 oz. (7.7 g)
Preamplifier: 4.17 oz. (118.2 g) | | | | Package Weight | 0.8 lb | | Box Dimensions (LxWxH) | 6.614 x 4.409 x 3.386" |
