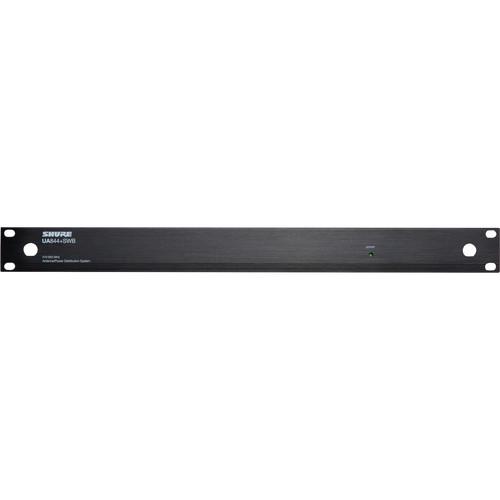

Product description The UA844+SWB/LC Wideband Antenna Distribution System & No Antenna Cables from Shure is for the expansion of a Shure wireless microphone system. It can be used to split one pair of antennas to multiple receivers and amplify the RF signal to compensate for the insertion loss. A single UA844+SWB/LC option comes with four push-on DC cables and no antenna cables. It is recommended for use with the BLXR, SLX, and QLX-D wireless systems. To connect the receiver antenna ports to the UA844+SWB/LC, use the BNC to BNC antenna cables supplied with each BLXR, SLX, and QLX-D wireless system. In addition, a single UA844+ system can support up to five wireless receivers and a maximum of five UA844+ systems may be used in a two-tiered configuration. UPC: 042406461535 In the Box Shure UA844+SWB/LC Wideband Antenna Distribution System & No Antenna Cables (470 to 960 MHz) PS45 Power Supply 4 x Non-Locking DC Power Cables 2 x 22" BNC Cables 2 x 6' BNC Cables 2 x Bulkhead Adapters Rackmount Hardware Kit Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Shure UA844 SWB LC Wideband Antenna Distribution System & No Antenna Cables in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersShure UA844+SWB/LC Specs | Power Requirements | 14 to 18 VDC | | DC Output | 4x 14 to 18 VDC | | Output Current | Combined Total from All DC Outputs
2.5 A, maximum | | Operating Temperature Range | 0 to 145°F (-18 to 63°C) | | | | Connector Type | BNC | | RF Frequency Range | 470-960 MHz | | Bias Voltage(s) | 2x 15 VDC (150 mA, maximum) | | Impedance | 50 Ohms | | | | RF Frequency Range | 470-960 MHz | | Output Intercept Point | 21 dBm, typical | | Connector Type | BNC | | Impedance | 50 Ohms | | Output Connector Isolation | 30 dB, typical | | Gain | Input to Any Output Port (unused ports terminated in 50 Ohms)
-1 to +1 dB | | Dimensions (H x W x D) | 1.8 x 19 x 6.8" (45 x 483 x 172 mm) | | Weight | 3.6 lb (1.62 kg) | | | | Package Weight | 9.05 lb | | Box Dimensions (LxWxH) | 23.0 x 16.2 x 3.9" |
