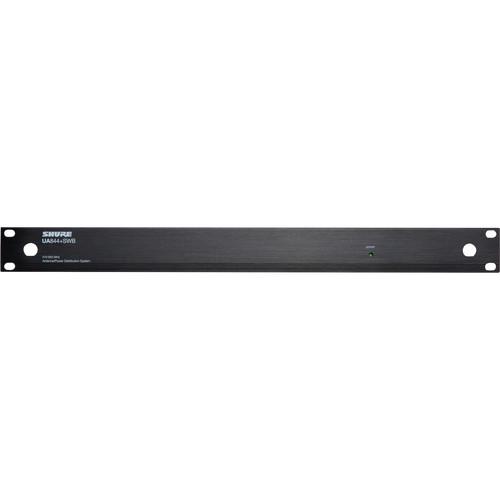

Product description The UA844+SWB UHF Wideband Antenna Distribution System from Shure is for the expansion of a Shure wireless microphone system. It can be used to split one pair of antennas to multiple receivers and amplify the RF signal to compensate for the insertion loss. A single UA844+ system can support up to five wireless receivers. A maximum of five UA844+ systems may be used in a two-tiered configuration. The system is compatible with the Shure QLX-D, ULX, ULX-D, SLX, and BLX4R wireless receivers. UPC: 042406461528 In the Box Shure UA844+SWB UHF Wideband Antenna Distribution System (470 to 960 MHz) PS45 Power Supply 4 x Locking DC Power Cables (for ULX4D, ULXP4) 4 x Non-Locking DC Power Cables (for QLXD4, SLX4, and BLX4R) 10 x 22" BNC Cables 2 x 6' BNC Cables 2 x Bulkhead Adapters Rackmount Hardware Kit Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Shure UA844 SWB UHF Wideband Antenna Distribution System in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersShure UA844+SWB Specs | Power Requirements | 14 to 18 VDC | | DC Output | 4x 14 to 18 VDC | | Output Current | Combined Total from All DC Outputs
2.5 A, maximum | | Operating Temperature Range | 0 to 145°F (-18 to 63°C) | | | | Connector Type | BNC | | RF Frequency Range | 470 to 960 MHz | | Bias Voltage(s) | 2x 15 VDC (150 mA, maximum) | | Impedance | 50 Ohms | | | | RF Frequency Range | 470 to 960 MHz | | Output Intercept Point | 21 dBm, typical | | Connector Type | BNC | | Impedance | 50 Ohms | | Output Connector Isolation | 30 dB, typical | | Gain | Input to Any Output Port (unused ports terminated in 50 Ohms)
-1 to +1 dB | | Dimensions (H x W x D) | 1.8 x 19 x 6.8" (45 x 483 x 172 mm) | | Weight | 3.6 lb (1.62 kg) | | | | Package Weight | 10.0 lb | | Box Dimensions (LxWxH) | 23.0 x 16.2 x 4.0" |
