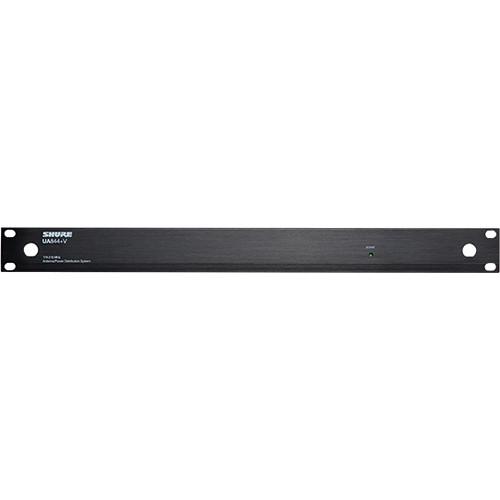

Product description The 174-216 MHz UA844+V/LC VHF Antenna Distribution System Less Cables from Shure allows for the expansion of wireless microphone systems by splitting one pair of antennas to multiple receivers. It can be used with Shure VHF QLX-D and ULX-D receivers in sound reinforcement applications such as for houses of worships, live stage, theater, rehearsals, and more. The system also amplifies RF signals to compensate for insertion loss that results from splitting signal power to multiple outputs. A single UA844+V system may support up to five wireless receivers and a maximum of five UA844+V systems can be used in a two-tiered configuration. Additionally, featuring front-mounting antenna hardware and rack-mounting hardware, the UA844+V provides 4 DC power feeds for receivers (15V, 2.5 A max) and has DC outputs for antenna bias (12V, 300mA max). - Five-way RF signal output
- Supports VHF QLX-D and ULX-D receivers
UPC: 042406461542 In the Box Shure UA844+V/LC VHF Antenna Distribution System Less Cables (174-216 MHz) PS45 Power Supply 2 x 6' BNC Cables 2 x Bulkhead Adapters Rackmount Hardware Kit 4 x Non-Locking DC Power Cables for QLXD4 2 x 22" BNC Cables Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Shure UA844 V LC VHF Antenna Distribution System Less Cables in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersShure UA844+V/LC Specs | Power Requirements | 14 to 18 VDC | | DC Output | 4x 15 VDC | | Output Current | Combined Total from All DC Outputs
2.5 A, maximum | | Operating Temperature Range | 0 to 145°F (-18 to 63°C) | | | | Connector Type | BNC | | RF Frequency Range | 174 to 216 MHz | | Bias Voltage(s) | 2x 12 VDC (300 mA, maximum) | | Impedance | 50 Ohms | | | | RF Frequency Range | 174 to 216 MHz | | Output Intercept Point | 21 dBm, typical | | Connector Type | BNC | | Impedance | 50 Ohms | | Output Connector Isolation | 30 dB, typical | | Gain | Input to Any Output Port (unused ports terminated in 50 Ohms)
-1 to +1 dB | | Dimensions (H x W x D) | 1.8 x 19 x 6.8" (45 x 483 x 172 mm) | | Weight | 3.6 lb (1.62 kg) | | | | Package Weight | 9.4 lb | | Box Dimensions (LxWxH) | 23.0 x 16.3 x 4.0" |
