User Manual for Shure UA846Z2 LC GLX-D Frequency Manager, Less Antenna Cables Click to enlarge the picture
Contents of the user manual for the Shure UA846Z2 LC GLX-D Frequency Manager,
- Product category: Wireless Receivers Shure
- Brand: Shure
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Shure Wireless Receivers
 |
User manual for the Shure UA846Z2 LC GLX-D Frequency Manager, contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Shure product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Shure user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Shure product will considerably shorten its lifespan!
|
Product description Shure GLX-D Advanced Digital Wireless System Read More - Shure GLX-D Advanced - How to Set up Frequency Manager

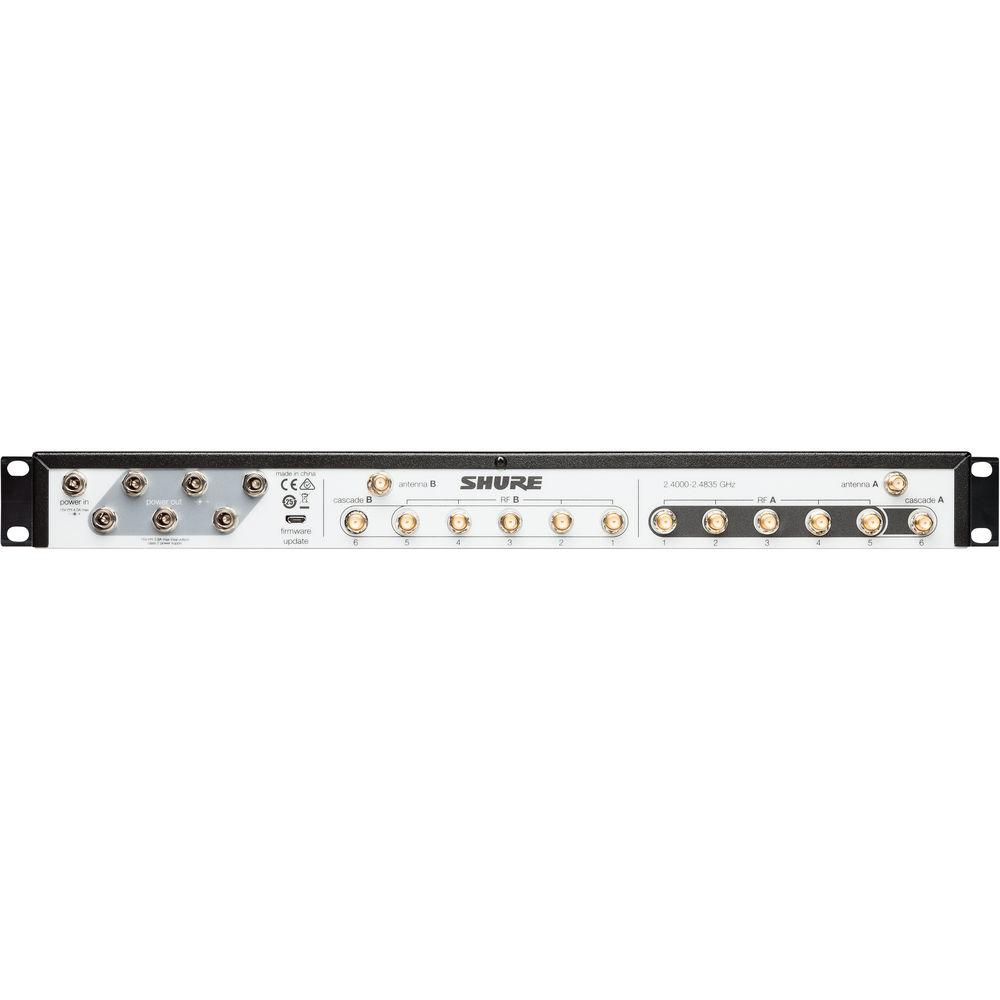

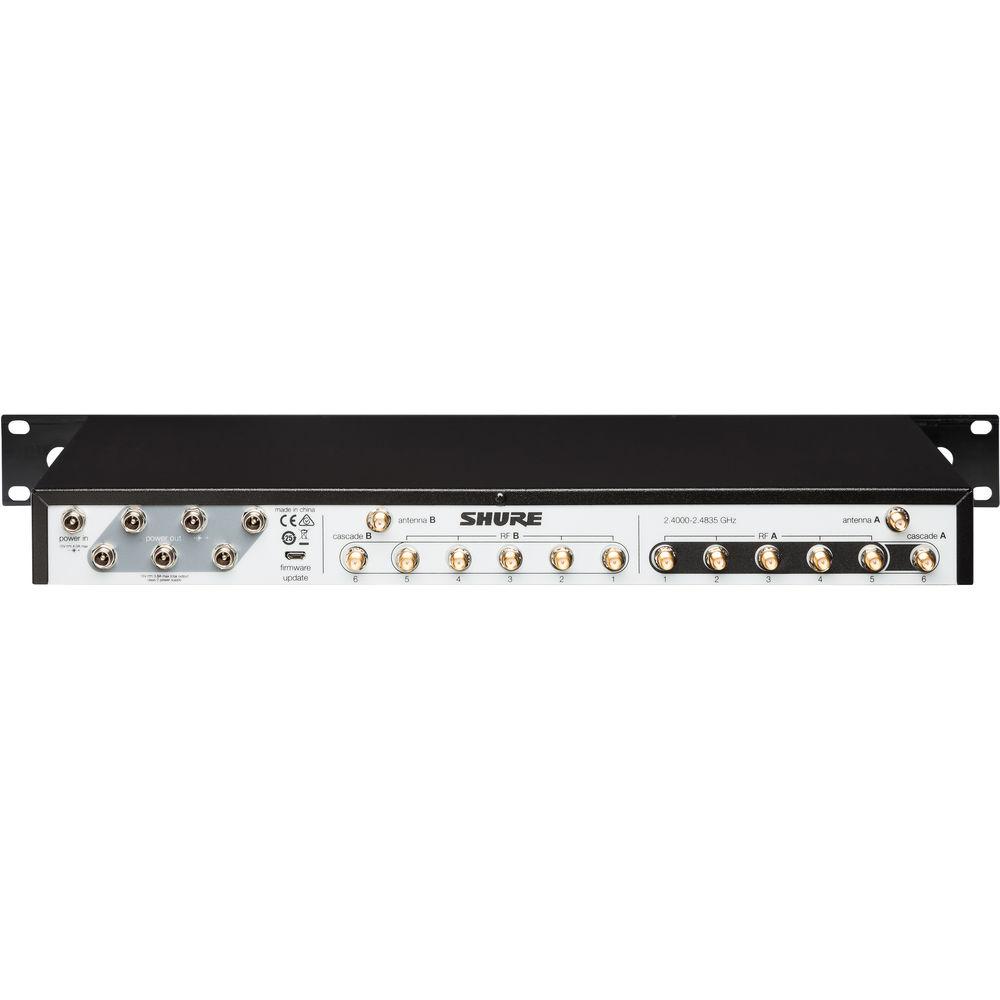

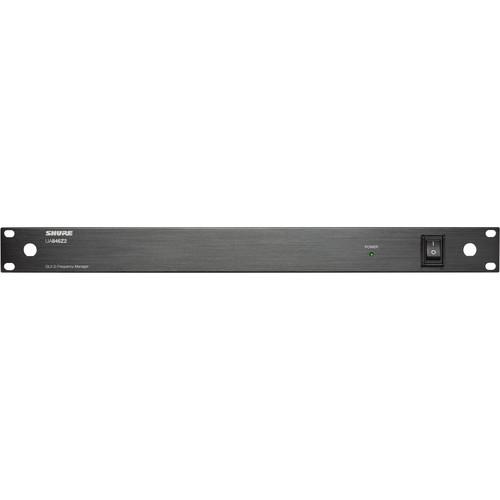

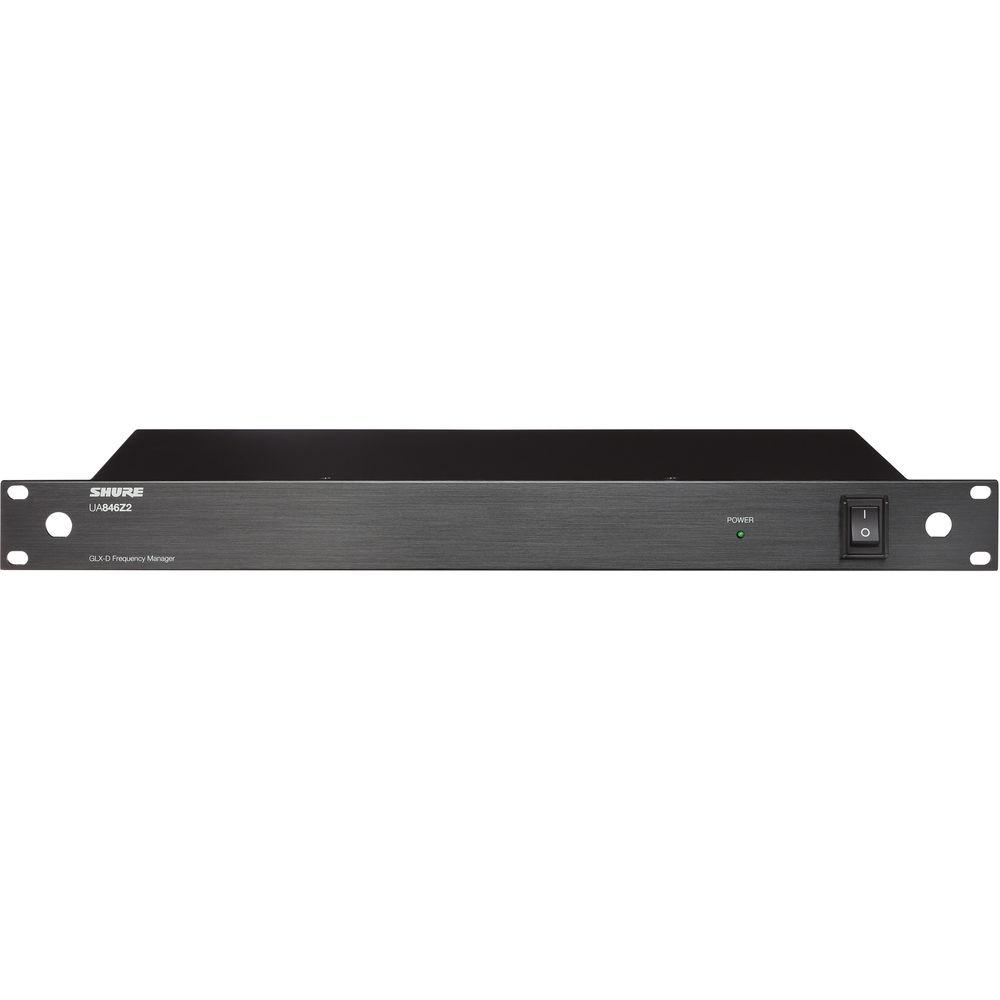

The UA846Z2/LC GLX-D Frequency Manager, Less Antenna Cables from Shure connects up to six GLXD4R wireless rackmount receivers and offers improved channel count over GLX-D systems. It can be used to provide rock-solid RF performance and frequency management when operating multiple wireless receivers for live stage, theater, rehearsal, and other sound reinforcement applications. The rackmount Frequency Manager system increases channel count and reduces the number of required antennas and power supplies when using multiple GLXD4R receivers simultaneously. It coordinates receiver scans of the 2.4 GHz RF environment and uses the clearest possible transmission and backup frequencies. Each receiver can be linked via the RF ports for traditional antenna distribution too. Additionally, the wireless receivers can operate in the most spectrally efficient manner. If there is interference, the system automatically transitions to backup frequencies. The UA846Z2/LC provides power for up to six GLXD4R receivers, which eliminates the need for power strips or multiple outlets. This system operates in the globally unlicensed 2.4 GHz frequency band. - Provides advanced automatic frequency management to a linked receiver community for improved RF performance and increased channel count
- Coordinates GLXD4R receiver scans of the 2.4 GHz RF environment
- Guarantees use of the clearest possible transmission and backup frequencies
- Links multiple GLXD4R receivers via RF ports for traditional antenna distribution
- Allows for remote mounting of antennas in optimal locations for increased signal stability
- Link up to 6 GLXD4R receivers per frequency manager
- Link up to 9 GLXD4R receivers in typical application environments (up to 11 under optimal conditions)
- Two frequency managers required for communities of more than 6 receivers
- Uses data communication via RF cables to create and manage the receiver community
- Features LINKFREQ Automatic Frequency Management, which quickly identifies the best open group and channel frequencies
- Bi-directional communication link enables transmitters to follow receiver frequency changes automatically
- Identifies and assigns optimal frequencies to receiver and transmitter pairs
- In case of interference, automatically and seamlessly transitions to backup frequencies
- Provides power to the GLXD4R receivers, eliminating need for power strips or multiple outlets
- Operates in the globally unlicensed 2.4 GHz frequency band
UPC: 042406504294 In the Box Shure UA846Z2/LC GLX-D Frequency Manager, Less Antenna Cables Rack-Mounting Hardware External Power Supply 6 x Threaded DC Power Cables Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Shure UA846Z2 LC GLX-D Frequency Manager, Less Antenna Cables in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersShure UA846Z2/LC Specs | Power Requirements | 15 VDC | | DC Output | 6 x 15 VDC | | Output Current | Combined Total from All DC Outputs: 3.8 A, maximum | | Operating Temperature Range | -0.40 to 145°F (-18 to 63°C) | | | | Connector Type | Reverse SMA | | RF Frequency Range | 2400 to 2483.5 MHz | | Receiver Port Isolation | 35 dB, typical | | Impedance | 50 Ohms | | Maximum Antenna Input Power | -10 dBm | | Maximum Receiver Port Input Power | +15 dBm | | | | RF Frequency Range | 2400 to 2483.5 MHz | | Output Intercept Point | 48 dBm, typical | | Connector Type | Reverse SMA | | Impedance | 50 Ohms | | Reverse Isolation | Output to Input: 35 dB, typical | | Gain | Input to Any Output Port: -3 to 0 dB | | Dimensions (H x W x D) | 1.8 x 19.0 x 7.6" (45 x 483 x 192 mm) | | Weight | 3.6 lb (1.6 kg) | | | | Package Weight | 8.75 lb | | Box Dimensions (LxWxH) | 22.8 x 16.2 x 4.0" |
