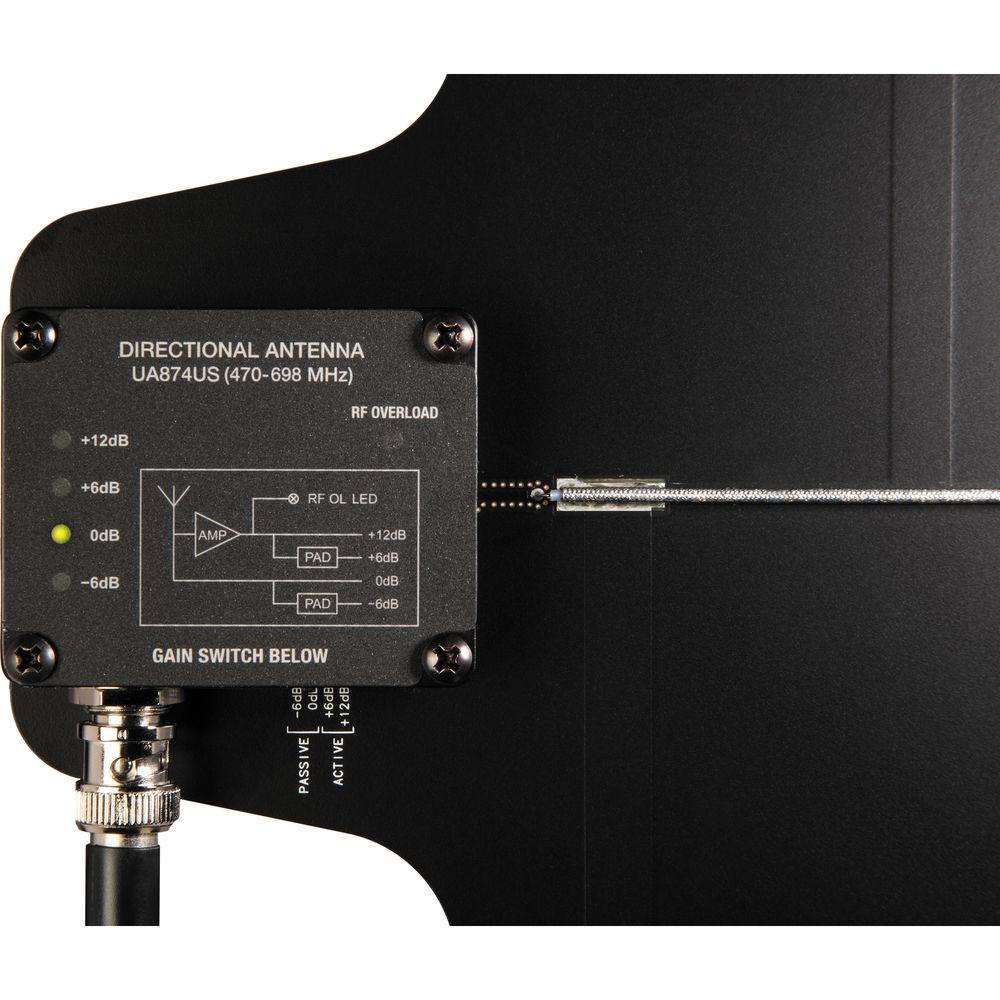

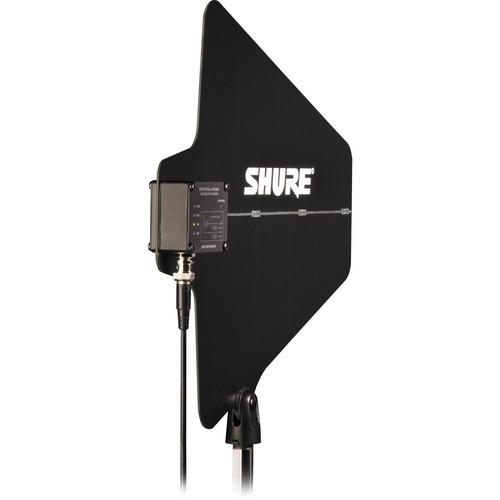

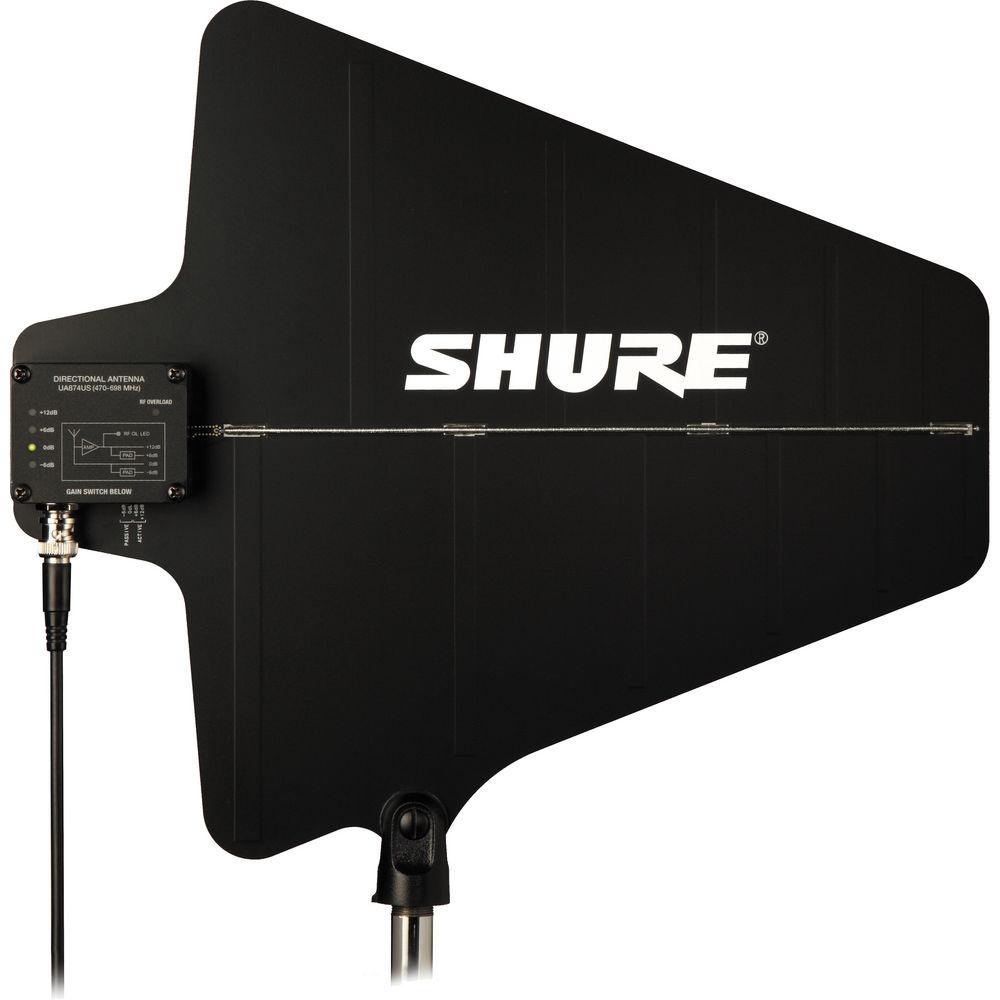

Product description The Shure UA874 Active Directional Antenna uses a log periodic dipole array to offer enhanced reception when directed toward the desired coverage area. An integrated amplifier and four gain settings compensate for varying degrees of coaxial cable signal loss. The UA874 can be mounted on a microphone stand, suspended from the ceiling or mounted to a wall using the integrated swivel adapter bracket. - Compatible with all Shure wireless receivers and antenna distribution systems that provide 12 V DC bias
- Four-position gain selector switch
- Low-noise signal amplifier that compensates for transmission loss in coaxial cable
- Integrated threaded adapter that mounts easily to microphones stands
UPC: 042406256308 In the Box Shure UA874 Active Directional Antenna 2-Year Limited Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Shure UA874 Active Directional Antenna in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersShure UA874US Specs | Connector Type | BNC (female) | | Impedance | 50 ohms | | Reception Pattern | 70° (3 dB beam width) | | Overload Intercept Point | >30 dBm | | Antenna Gain | 7.5 dBi (on axis) | | Signal Gain | Switchable
Active: +12 dB, +6 dB (±1 dB)
Passive: 0 dB, -6 dB (±1 dB) | | RF Overload LED Threshold | -5 dBm (RF overload LED does not operate for passive gain settings) | | Power Requirements | 10 - 15 V DC bias from coaxial connection (75 mA) | | Operating Temperature Range | 0 to 145°F (-18 to 63°C) | | Storage Temperature Range | -20 to 165°F (-29 to 74°C) | | Dimensions (WxHxD) | 14.1 x 12.4 x 1.4" (359 x 316 x 36 mm) | | Weight | 11.2 oz (317 g) | | | | Package Weight | 2.4 lb | | Box Dimensions (LxWxH) | 18.3 x 14.6 x 3.7" |
