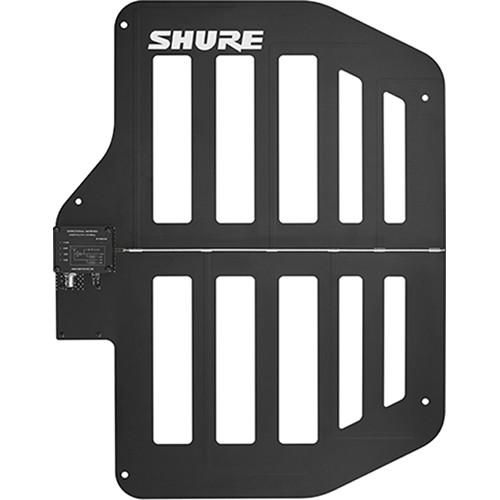

Product description The VHF (174 to 216 MHz) UA874V Active Directional Antenna from Shure uses a log-periodic dipole array to offer enhanced reception for Shure wireless receivers and antenna distribution systems that provide 10 to 15 VDC bias. It can be used as an integrated amplifier with four gain settings to compensate for varying degrees of coaxial cable signal loss. The UA874 can be mounted on a microphone stand, suspended from the ceiling, or mounted to a wall. - A low-noise signal amplifier that compensates for the insertion loss in a coaxial cable
- Compatible with Shure wireless receivers and antenna distribution systems that provide 10-15 VDC bias
- Integrated threaded adapter mounts easily to microphone stands
UPC: 042406461931 In the Box Shure UA874V Active Directional Antenna for VHF (174 to 216 MHz) Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Shure UA874V Active Directional Antenna for VHF in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersShure UA874V Specs | Connector Type | BNC, female | | Impedance | 50 Ohms | | RF Frequency Range | 174 to 216 MHz | | Reception Pattern | 3 dB beam width 120° | | Third Order Intercept Point (3 OIP) | >30 dBm | | Antenna Gain | On Axis: 3 dBi | | Signal Gain | ±1 dB, Switchable: +12 dB, +6 dB, 0 dB, −6 dB | | RF Overload LED Threshold | -5 dBm (RF overload LED does not operate for passive gain settings) | | Power Requirements | 10 to 15 VDC bias from coaxial connection, 75 mA | | Operating Temperature Range | 0 to 145°F (-18 to 63°C) | | Storage Temperature Range | -20 to 165°F (-29 to 74°C) | | Dimensions (H x W x D) | 22 x 17 x 2.7" (559 x 435 x 68 mm) | | Weight | 27 oz (765 g) | | | | Package Weight | 4.2 lb | | Box Dimensions (LxWxH) | 23.5 x 17.5 x 3.2" |
