User Manual for Shure UABIAST In-Line Power Supply with PS23US Click to enlarge the picture
Contents of the user manual for the Shure UABIAST In-Line Power Supply with
- Product category: Antenna Accessories Shure
- Brand: Shure
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Shure Antenna Accessories
 |
User manual for the Shure UABIAST In-Line Power Supply with contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Shure product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Shure user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Shure product will considerably shorten its lifespan!
|

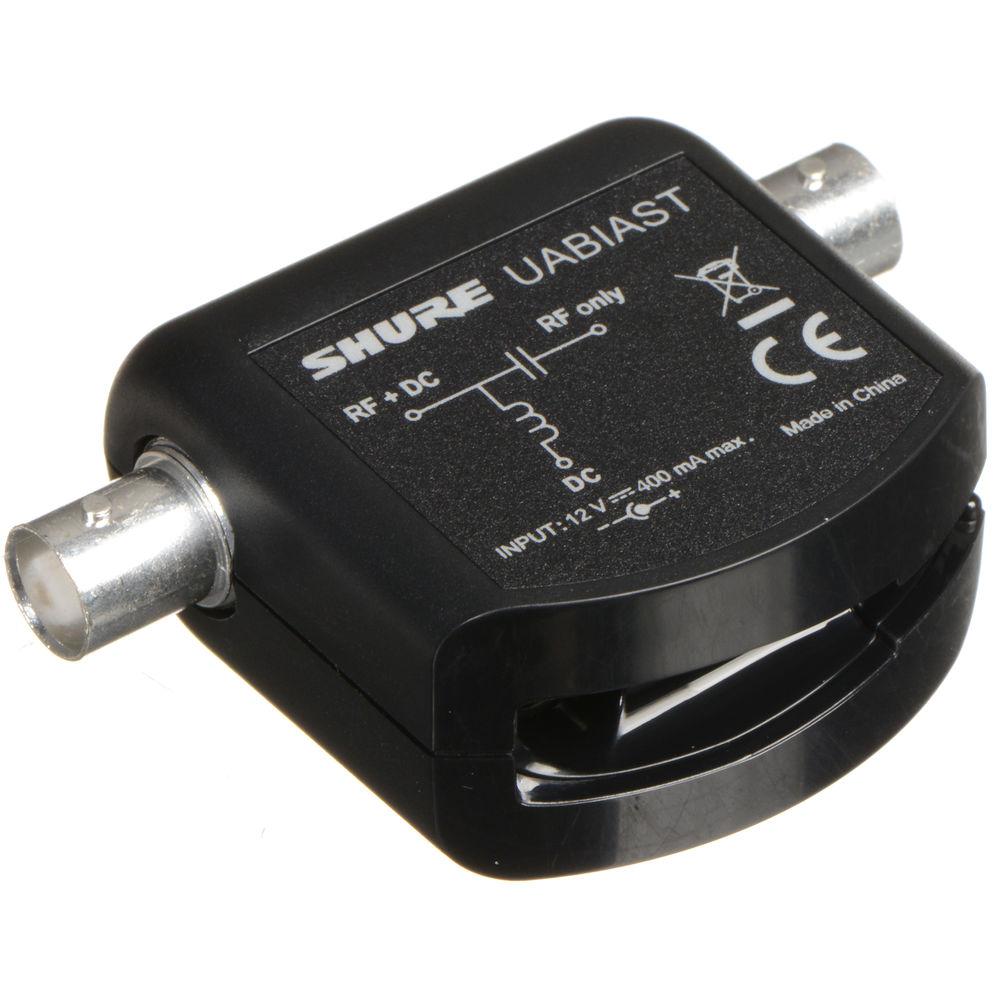

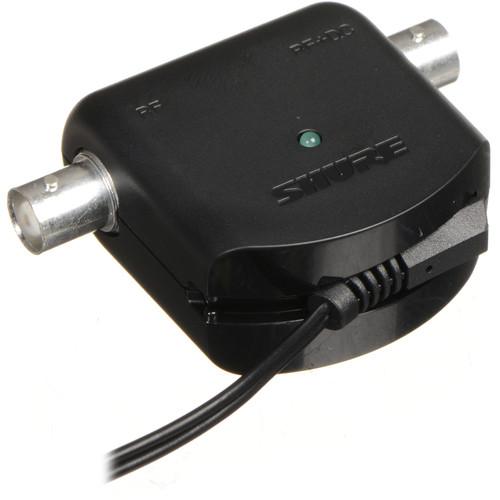

Product description The UABIAST In-Line Power Supply with PS23US by Shure is for providing 12V DC bias power to an active antenna or in-line device over BNC coaxial cable. It is used when a wireless receiver's antenna input jack does not provide the necessary power or, when used without an antenna distribution amplifier.
The UABIAST receives power from a wall outlet using a Shure PS21 or PS23 power supply and passes the RF signal and power to an active antenna or in-line device. The UABIAST is capable of supplying power to three in-line amplifiers (Shure UA830), or two in-line amplifiers and one active antenna (Shure UA874). A PS23 power supply is included. (The UA830 and UA874 are sold separately.) - Powers any combination of up to 3 connected compatible devices
- Passes through RF signal between antenna and receiver
UPC: 042406326766 In the Box Shure UABIAST In-Line Power Supply with PS23US PS23US Power Supply zyuzduevcdbsdsbfexavebbccx Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Shure UABIAST In-Line Power Supply with PS23US in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersShure UABIAST-US Specs | DC Output | Bias Voltage: 12.4 V DC (maximum) | | Maximum Input Power | 12.4 V DC, 400 mA (maximum) | | Insertion Loss | <1 dB | | Connector Type | BNC | | Bias Voltage(s) | 12 V DC | | Impedance | 50 Ω | | RF Frequency Range | 400 to 1000 MHz | | Operating Temperature Range | 45 to 100°F (7 to 38°C) | | Dimensions (H x W x D) | 1.0 x 2.6 x 1.9" (25.5 x 67.0 x 49.0 mm) | | Weight | 2 oz (49 g) | | | | Package Weight | 1.05 lb | | Box Dimensions (LxWxH) | 8.8 x 4.3 x 3.3" |
Rating80% users recommend this product to others. And what about you?
This product has already been rated by 52 owners. Add your rating and experience with the product.
