Shure ULX-D Dual Channel Digital Wireless

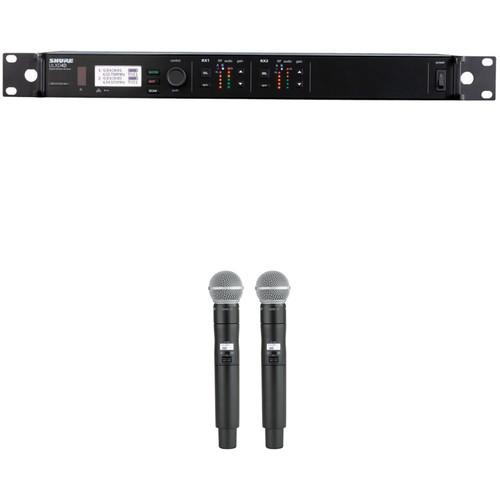

User Manual for Shure ULX-D Dual Channel Digital Wireless Handheld SM58 Kit

• Product category: Wireless Systems Shure
• Brand: Shure
• Description and content of package
• Technical information and basic settings
• Frequently asked questions – FAQ
• Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
• Authorized service for Shure Wireless Systems

Product description

• Shure ULXD4D Dual-Channel Wireless Receiver (H50: 537 to 598 MHz) The ULXD4D Dual-Channel Wireless Receiver from Shure is designed for compatibility with Shure's ULX-D wireless systems. It is tuned to Shure's H50 frequency band that operates from 537 to 598 MHz. It features 256-bit AES encryption that allows for reception of secure signals. The unit's digital predictive switching diversity is designed to assure you have consistent reception.

  The ULX4D is compatible with Dante audio over Ethernet networks. Its digital distribution can be controlled via the Wireless Workbench software.
  • • Two receivers in a 1RU metal chassis with internal power supply
    • Individual gain controls, LED meters, and XLR outputs for each channel
    • Up to 64 MHz tuning range (region dependent)
    • Digital predictive switching diversity
    • High Density mode optimizes ULX-D systems to simultaneously operate more channels in applications up to 30 meters
    • RF cascade ports allow distribution of RF signal to another unit
    • Optimized scanning automatically finds, prioritizes, and deploys the cleanest frequencies to transmitters over IR sync
    • Bodypack frequency diversity ensures uninterrupted audio for mission-critical applications
    • AES 256-bit encryption-enabled for secure transmission
    • Audio summing routes both audio channels to each XLR receiver output
    • Dante digital networked audio over Ethernet
    • Up to 60 dB independently adjustable gain for each channel
    • Ethernet networking for streamlined frequency coordination and deployment across multiple receivers
    • Wireless Workbench 6 (WWB6) software integration for advanced coordination, monitoring, and control
    • Interference detection and alerts provided on both the receiver and WWB6
    • AMX/Crestron control
    • AXT600 Axient Spectrum Manager compatible
    • Intuitive front-panel LCD menu and controls with lockout feature
    • Audio and RF LED meters with peak indicator
    • XLR connectors with switchable mic/line output level
    • Remoteable 1/2 wave antennas
  UPC: 042406339001
• 2 x Shure ULXD2 Handheld Transmitter with SM58 Microphone Capsule (H50: 534 to 598 MHz) The ULXD2 Handheld Transmitter with SM58 Microphone Capsule from Shure is designed for compatibility with Shure's ULX-D wireless systems. It has an interchangeable SM58 capsule and is set to Shure's H50 frequency band that operates between 534 to 598 MHz.

  The ULXD2 has AES 256-bit encryption that keeps your signal secure. Featuring Shure's proprietary Gain Ranging, the ULXD2's dynamic range is optimized based on the input source and eliminates the need for transmitter gain adjustments. It has a lightweight, 12-ounce metal body with a backlit LCD menu with frequency and power lockout to avoid accidental setting changes. Powered by two AA batteries or the optional SB900 rechargeable battery pack, the ULXD2 has external charging contacts and is compatible with the SBC200 dual docking charger. UPC: 042406339063

• ULXD4D Dual-Channel Wireless Receiver (H50: 537 to 598 MHz) bzwsbrertrrbbzybcftqctvbruvrfac
• 2 x 1/2 Wave Antennas
• Hardware Kit
• 2 x BNC Cables
• 2 x BNC Bulkhead Adapters
• 3' Ethernet Cable
• Power Cable
• Limited 2-Year Warranty

• 2 x ULXD2 Handheld Transmitter with SM58 Microphone Capsule (H50: 534 to 598 MHz)

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• Shure ULXD4D Dual-Channel Wireless Receiver (H50: 537 to 598 MHz)

  Spurious Rejection	>80 dB, Typical
  Connector	BNC
  Impedance	50 Ohms
  Bias Voltage(s)	12-13 VDC, 150 mA Maximum, per Antenna

  Gain Range	-18 to 42 dB in 1 dB Steps (Plus Mute Setting)
  Configuration	XLR: Balanced (1= Ground, 2= Audio +, 3= Audio -)
  Impedance	100 Ohms
  Full Scale Output	Line: 18 dBV Mic: -12 dBV
  Switch	Mic/Line: 30 dB Pad
  Phantom Power Protection	Yes

  Network Interface	Dual-Port Ethernet 10/100 Mb/s, 1 Gb/s
  Network Addressing Capability	DHCP or Manual IP
  Ethernet	Maximum Cable Length: 328' / 100 m
  Cascade Output	Connector Type: BNC Configuration: Unbalanced, Passive Impedance: 50 Ohms

  Power Requirements	100 to 240 VAC, 50-60 Hz, 0.26 A Maximum
  Dimensions (H x W x D)	1.73 x 18.97 x 10.79" / 44 x 482 x 274 mm
  Weight	7.4 lb / 3.36 kg

  Box Dimensions (LxWxH)	27.5 x 17.5 x 3.6"

• 2 x Shure ULXD2 Handheld Transmitter with SM58 Microphone Capsule (H50: 534 to 598 MHz)

  Mic Offset Range	0 to 21 dB (in 3 dB Steps)
  Frequency Band	H50: 534 to 598 MHz
  Audio Input	Configuration: Unbalanced
  Maximum Input Level	145 dB SPL (1 kHz @ 1% THD)
  RF Output	Antenna Type: Integrated Single Band Helical Occupied Bandwidth: < 200 kHz Modulation Type: Shure Proprietary Digital Power: 1 mW, 10 mW, 20 mW (Varies by Region)
  Battery Type	2x LR6 AA Batteries 1.5 V Shure SB900 Rechargeable Li-Ion
  Battery Life	Shure SB900: > 11 Hours @ 10 mW Alkaline Batteries: 11 Hours @ 10 mW
  Housing	Machined Aluminum
  Dimensions (Ø x L)	2 x 10.1" / 51 x 256 mm
  Weight	12 oz / 340 g

  Type	Dynamic
  Frequency Response	50 Hz to 15 kHz
  Polar Pattern	Cardioid
  Sensitivity	-54.5 dBV/Pa (1.85 mV) 1 Pa = 94 dB SPL; @ 1 kHz Open Circuit Voltage
  Self Noise	23.5 dB (Typical, Equivalent SPL; A-Weighted)

  Box Dimensions (LxWxH)	12.7 x 4.9 x 3.6"
