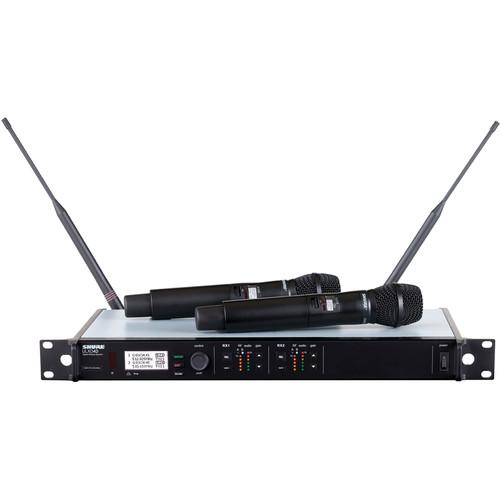

User Manual for Shure ULX-D Dual Channel Digital Wireless Handheld SM87 Kit

• Product category: Wireless Systems Shure
• Brand: Shure
• Description and content of package
• Technical information and basic settings
• Frequently asked questions – FAQ
• Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
• Authorized service for Shure Wireless Systems

Product description

• Shure ULXD4D Dual-Channel Wireless Receiver (H50: 537 to 598 MHz) The ULXD4D Dual-Channel Wireless Receiver from Shure is designed for compatibility with Shure's ULX-D wireless systems. It is tuned to Shure's H50 frequency band that operates from 537 to 598 MHz. It features 256-bit AES encryption that allows for reception of secure signals. The unit's digital predictive switching diversity is designed to assure you have consistent reception.

  The ULX4D is compatible with Dante audio over Ethernet networks. Its digital distribution can be controlled via the Wireless Workbench software.
  • • Two receivers in a 1RU metal chassis with internal power supply
    • Individual gain controls, LED meters, and XLR outputs for each channel
    • Up to 64 MHz tuning range (region dependent)
    • Digital predictive switching diversity
    • High Density mode optimizes ULX-D systems to simultaneously operate more channels in applications up to 30 meters
    • RF cascade ports allow distribution of RF signal to another unit
    • Optimized scanning automatically finds, prioritizes, and deploys the cleanest frequencies to transmitters over IR sync
    • Bodypack frequency diversity ensures uninterrupted audio for mission-critical applications
    • AES 256-bit encryption-enabled for secure transmission
    • Audio summing routes both audio channels to each XLR receiver output
    • Dante digital networked audio over Ethernet
    • Up to 60 dB independently adjustable gain for each channel
    • Ethernet networking for streamlined frequency coordination and deployment across multiple receivers
    • Wireless Workbench 6 (WWB6) software integration for advanced coordination, monitoring, and control
    • Interference detection and alerts provided on both the receiver and WWB6
    • AMX/Crestron control
    • AXT600 Axient Spectrum Manager compatible
    • Intuitive front-panel LCD menu and controls with lockout feature
    • Audio and RF LED meters with peak indicator
    • XLR connectors with switchable mic/line output level
    • Remoteable 1/2 wave antennas
  UPC: 042406339001
• 2 x Shure ULXD2/SM87 Handheld Wireless Transmitter (H50: 534 to 598 MHz) For capturing audio, the ULXD2/SM87 Handheld Wireless Microphone Transmitter by Shure is a good choice to get the job done. Featuring transparent 24-bit digital audio quality, it is used for wireless vocals in presentation spaces, music venues, houses of worship, DJ setups, and more. It features a 20Hz to 20kHz frequency response and has more than 60 available channels per frequency band. Powered by 2 AA batteries, the ULXD2 quickly syncs with a wireless receiver over IR at the push of a button and maintains clear, uninterrupted signal over its entire 100 m (328 ft.) range. All-metal construction ensures durability, and a wide selection of compatible microphone choices is ideal for your presentation.
  • For the Shure ULX-D wireless system
  • Features interchangeable Shure microphone capsules
  • AES 256-bit encryption for secure transmission
  • Up to 9 hours continuous use with 2 x AA alkaline batteries
  • Optional Shure SB900 lithium ion rechargeable battery (sold separately) provides up to 10 hours of continuous use and reports remaining runtime in hours and minutes
  • Backlit LCD with easy to navigate menu and controls
  • Selectable display mode showing group/channel, frequency, or battery runtime
  • Rugged metal construction
  • Transmitter has 328' (100 meter) line-of-sight operating range
  • Features frequency and power lockout
  UPC: 042406339087

• ULXD4D Dual-Channel Wireless Receiver (H50: 537 to 598 MHz) ywwqvarva
• 2 x 1/2 Wave Antennas
• Hardware Kit
• 2 x BNC Cables
• 2 x BNC Bulkhead Adapters
• 3' Ethernet Cable
• Power Cable
• Limited 2-Year Warranty

• 2 x ULXD2/SM87 Handheld Wireless Transmitter (H50: 534 to 598 MHz) ywwqvarva

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• Shure ULXD4D Dual-Channel Wireless Receiver (H50: 537 to 598 MHz)

  Spurious Rejection	>80 dB, Typical
  Connector	BNC
  Impedance	50 Ohms
  Bias Voltage(s)	12-13 VDC, 150 mA Maximum, per Antenna

  Gain Range	-18 to 42 dB in 1 dB Steps (Plus Mute Setting)
  Configuration	XLR: Balanced (1= Ground, 2= Audio +, 3= Audio -)
  Impedance	100 Ohms
  Full Scale Output	Line: 18 dBV Mic: -12 dBV
  Switch	Mic/Line: 30 dB Pad
  Phantom Power Protection	Yes

  Network Interface	Dual-Port Ethernet 10/100 Mb/s, 1 Gb/s
  Network Addressing Capability	DHCP or Manual IP
  Ethernet	Maximum Cable Length: 328' / 100 m
  Cascade Output	Connector Type: BNC Configuration: Unbalanced, Passive Impedance: 50 Ohms

  Power Requirements	100 to 240 VAC, 50-60 Hz, 0.26 A Maximum
  Dimensions (H x W x D)	1.73 x 18.97 x 10.79" / 44 x 482 x 274 mm
  Weight	7.4 lb / 3.36 kg

  Box Dimensions (LxWxH)	27.5 x 17.5 x 3.6"

• 2 x Shure ULXD2/SM87 Handheld Wireless Transmitter (H50: 534 to 598 MHz)

  RF Carrier Frequency Range	H50: 534 to 598 MHz
  Working Range	328' (100 m)
  RF	Tuning Step Size: 25 kHz, varies by region
  Image Rejection	Better than 70 dB, typical
  RF Sensitivity	−97 dBm at 10−5 BER
  Latency	Less than 2.9 ms
  Frequency Response	20 Hz to 20 kHz
  Audio Dynamic Range	System Gain @ +10: Better than 120 dB, A-weighted, typical
  Total Harmonic Distortion (THD)	−12 dBFS input, System Gain @ +10: Less than 0.1%
  Polarity	System Audio: Positive pressure on microphone diaphragm produces positive voltage on pin 2 (with respect to pin 3 of XLR output) and the tip of the 6.35 mm (1/4-inch) output.
  Operating Temperature Range	0° to 122°F (-18° to 50°C) Note: Battery characteristics may limit this range.
  Storage Temperature Range	-20° to 165°F (-29° to 74°C) Note: Battery characteristics may limit this range.
  Mic Offset Range	0 to 21 dB (in 3 dB steps)
  Battery Type	Shure SB900 rechargeable Li-Ion or AA batteries 1.5 V
  Battery Runtime	At 10 mW Shure SB900: up to 10 hours Alkaline: up to 9 hours
  Audio Input	Configuration: unbalanced Maximum Input Level 1 kHz at 1% THD: 145 dB SPL (SM58), typical Note: Dependent on microphone type
  Maximum Input Level	1 kHz at 1% THD: 145 dB SPL (SM58), typical Note: Dependent on microphone type
  Capsule	SM87
  RF Output	Antenna Type: Integrated single band helical Occupied Bandwidth: Less than 200 kHz Modulation Type: Shure proprietary digital Power: 1 mW or 10 mW (varies by region)
  Housing	Machined aluminum
  Dimensions (L x Diam)	10.1 x 1.5" (256 x 37 mm)
  Weight	12.2 oz (347 g) without batteries

  Box Dimensions (LxWxH)	12.7 x 4.8 x 3.4"
