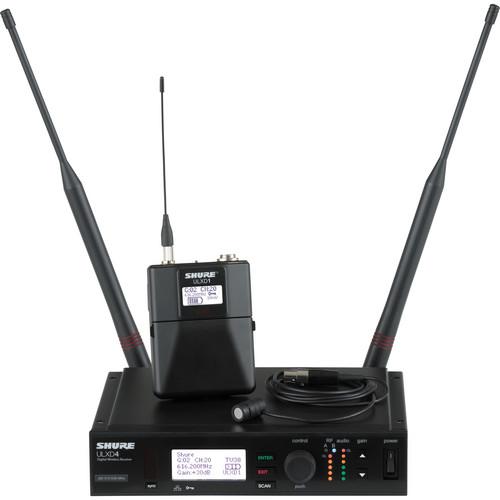

Shure ULX-D Single Digital Wireless Bodypack

User Manual for Shure ULX-D Single Digital Wireless Bodypack Kit with WL184 Mic

• Product category: Wireless Systems Shure
• Brand: Shure
• Description and content of package
• Technical information and basic settings
• Frequently asked questions – FAQ
• Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
• Authorized service for Shure Wireless Systems

Product description

• Shure ULXD4 Digital Wireless Receiver (H50: 534 to 598 MHz) The ULXD4 Digital Wireless Receiver from Shure is designed for compatibility with Shure's ULX-D wireless systems. It is tuned to Shure's H50 frequency band that operates from 534 to 598 MHz. It features 256-bit AES encryption that allows for reception of secure signals. The unit's digital predictive switching diversity is designed to assure you have consistent reception.
  • • Predictive switching diversity
    • High Density mode optimizes ULX-D systems to simultaneously operate significantly more channels in applications up to 30 meters
    • Intelligent scanning automatically finds and deploys the cleanest frequencies to transmitters over IR sync
    • Interference detection and alerts provided on both the receiver and Wireless Workbench 6
    • Front-panel gain adjustment buttons provide up to 60 dB additional gain
    • AES 256-bit encryption-enabled for applications where secure transmission is needed
    • Ethernet networking provides streamlined setup across multiple receivers, Wireless Workbench 6 integration, and AMX/Crestron control
    • Support for frequency coordination with the Axient Spectrum Manager
    • Metal chassis
    • Front-panel LCD menu and controls with lockout feature
    • LCD with adjustable contrast and brightness
    • Audio and RF LED meters with peak indicator
    • Remoteable ½ wave antennas
    • Furnished rack hardware
  UPC: 042406338998
• Shure ULXD1 Wireless Bodypack Transmitter - H50 / 534 to 598 MHz The ULXD1 Wireless Bodypack Transmitter by Shure is for capturing audio. It can be used in various environments, when paired with a ULXD4 receiver for applications such as, theater, stage, broadcast TV, DJ setups, and more. The ULXD1 compact bodypack transmitter is enclosed in a rugged metal housing with a TA4-M (4-pin male) audio input connector and features a comprehensive LCD display.The ULXD1 features pristine, compandor-free digital transmission for uncompromising sound quality, range and detail. Its 256-bit encryption keeps wireless transmissions secure, and its adjustable RF output power delivers maximum range wherever necessary. The ULXD1 operates on either alkaline AA batteries or Li-Ion rechargeable batteries for up to 12 hours.
  • AES 256-bit encryption for applications requiring secure data transmission
  • Proprietary Shure gain ranging optimizes the system's dynamic range for any input source, eliminating the need for transmitter gain adjustments
  • Shure SB900 Lithium-Ion rechargeable battery provides up to 12 hours of battery life, precision metering with 5-segment battery fuel gauge, and zero memory effect
  • External charging contacts for docked charging (with the SBC200 dual docking charger)
  • Backlit LCD with easy to navigate menu and controls
  • Rugged metal construction
  • Detachable 1/4 wave antenna
  • Frequency and power lockout
  UPC: 042406339025
• Shure WL184 Supercardioid Lavalier Microphone The Shure WL184 is a super-cardioid subminiature lavalier microphone with signal characteristics ideal for general sound reinforcement applications. The super-cardioid pick up pattern provides adequate rejection of off-axis ambient signal that can cause noise and feedback. The low-profile subminiature design is ideal for applications where the microphone must be concealed. The hardwired 4 foot cable terminates to a 4-pin TA4-female connector which is compatible with Shure wireless transmitters and power supplies.
  Subminature Profile
  • The miniature capsule is easy to conceal during video, broadcast, stage and sound reinforcement applications.
  Super-Cardioid Polar Pattern
  • The super-cardioid polar pattern effectively minimizes noise and ambiance at the off-axis sections of the capsule, reducing noise and feedback.
  Full Signal Reproduction
  • A wide frequency response and high SPL rating results in full, clear audio reproduction for speech.
  TA4-Female Connection
  • The hardwired cable terminates to a TA4-female connection, compatible with Shure wireless microphone transmitters.
  UPC: 042406055314

• ULXD4 Digital Wireless Receiver (H50: 534 to 598 MHz) zzydfdewbv
• 2 x Remoteable 1/2 Wave Antennas
• Rack Hardware
• Power Supply
• Limited 2-Year Warranty

• ULXD1 Wireless Bodypack Transmitter - H50 / 534 to 598 MHz

• WL184 Supercardioid Lavalier Microphone

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• Shure ULXD4 Digital Wireless Receiver (H50: 534 to 598 MHz)

  Spurious Rejection	>80 dB, Typical
  Connector	BNC
  Impedance	50 Ohms
  Bias Voltage(s)	12 to 13 VDC, 170 mA Maximum, per Antenna

  Gain Adjustment Range	-18 to 42 dB in 1 dB Steps (Plus Mute Setting)
  Configuration	1/4" / 6.3 mm: Impedance Balanced (Tip= Audio, Ring= No Audio, Sleeve= Ground) XLR: Balanced (1= Ground, 2= Audio +, 3= Audio −)
  Impedance	1/4" / 6.3 mm: 100 Ohms (50 Ohms Unbalanced) XLR: 100 Ohms
  Full Scale Output	1/4" / 6.3 mm: 12 dBV XLR: LINE Setting= 18 dBV, MIC Setting= -12 dBV
  Mic/Line Switch	30 dB Pad
  Phantom Power Protection	1/4" / 6.3 mm: Yes XLR: Yes

  PoE	No, Protected
  Network Interface	Single-Port Ethernet 10/100 Mb/s
  Network Addressing Capability	DHCP or Manual IP Address
  Maximum Cable Length	328' / 100 m

  Housing	Steel
  Power Requirements	15 VDC @ 0.6 A, Supplied by External Power Supply (Tip Positive)
  Dimensions (HxWxD)	7.75 x 6.75 x 1.65" / 197 x 171 x 42 mm
  Weight	2 lb / 913 g Without Antennas

  Box Dimensions (LxWxH)	18.346 x 14.882 x 3.622"

• Shure ULXD1 Wireless Bodypack Transmitter - H50 / 534 to 598 MHz

  Frequency Band	H50: 537 to 598 MHz
  Gain Offset Range	0 to 21 dB (in 3 dB steps)
  Battery Type	Shure SB900 Rechargeable Li-Ion or AA batteries Battery Runtime @ 10 mW: Shure SB900: > 12 hours Alkaline: 11 hours
  Housing	Cast aluminum
  Audio Input Connectors	4-Pin male mini connector (TA4M) Configuration: Unbalanced
  Impedance	1 Mega ohm
  Maximum Input Level	Pad Off: 8.5 dBV (7.5 Vpp) Pad On: 20.5 dBV (30 Vpp)
  EIN	Preamplifier Equivalent Input Noise (EIN), System Gain Setting = +20: 120 dBV, A-weighted, typical
  RF Output	SMA
  Antenna	1/4 wave
  Impedance	50 ohms
  Bandwidth	Occupied Bandwidth: < 200 kHz
  Modulation	Shure Proprietary Digital
  Power	1 mW, 10 mW, 20 mW
  Operating Range	300' (100m)
  Frequency Response	20 Hz to 20 kHz (±1 dB), flat Note: Dependent on microphone type
  Dimensions (HxWxD)	3.4 x 2.6 x 0.9" (86 x 66 x 23 mm)
  Weight	142 g (5.0 oz), without batteries

  Box Dimensions (LxWxH)	12.7 x 4.8 x 3.3"

• Shure WL184 Supercardioid Lavalier Microphone

  Transducer	Electret Bias
  Polar Pattern	Super-Cardioid
  Frequency Response	50Hz to 17kHz
  Dynamic Range (Typical)	102dB
  Signal-to-Noise Ratio	27dB SPL (A-weighted)
  Maximum Input Sound Level	129.5dB
  Power Requirements	Regulated Nominal +5 Vdc (2 Vdc to 10 Vdc)
  Output Impedance	18 kHz
  Output Connectors	TA4-Female
  Pad	No
  Low Frequency Roll-Off	No
  Dimensions	Cable length: 4 foot (1.2 meter)
  Weight	not specified by manufacturer

  Box Dimensions (LxWxH)	6.6 x 4.4 x 3.3"
