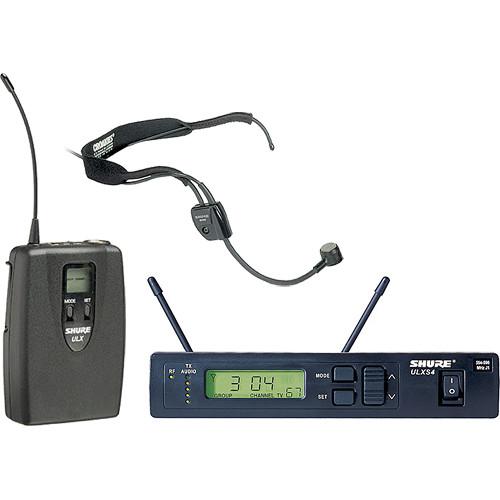

User Manual for Shure ULX Pro Series Wireless Headset Microphone Kit Click to enlarge the picture
Contents of the user manual for the Shure ULX Pro Series Wireless Headset
- Product category: Wireless Systems Shure
- Brand: Shure
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Shure Wireless Systems
|
User manual for the Shure ULX Pro Series Wireless Headset contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Shure product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Shure user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Shure product will considerably shorten its lifespan!
|
Product description The Shure ULX Pro Series Wireless Headset Microphone Kit from features a ULXP4 diversity receiver, a ULX1 body-pack transmitter and a WH20 headset microphone with a TA4 connector. It can be used as a professional wireless solution in capturing audio for broadcast, live performances, conferences, and houses of worship applications. Furthermore, the kit's ULXP4 receiver operates on the UHF frequency band and has both XLR and 1/4" outputs. It offers over 1400 user selectable frequencies to choose from and has a multi-function LCD display that shows group and scan functions. It also displays channel frequency, volume locks, SCAN indicator, squelch indicator, and receiving antenna indicators. The ULX1 body-pack transmitter is lightweight and features a belt-clip for attaching it to a waist belt. It has over 1400 user selectable UHF frequencies and a comprehensive LCD display. In addition, adjustable audio-gain is provided, along with an input attenuation switch for 0 dB or 20 dB adjustments, and the transmitter boasts 8-9 hour battery life on a single 9V battery. Finally, the WH20 Headset is a rugged, lightweight, dynamic headset microphone that features a cardioid (unidirectional) pickup pattern. This provides greater gain-before-feedback and isolation from ambient noises. An integrated elastic headband secures the headset comfortably. - Shure ULXS4 Standard Wireless Receiver with PS40 (G3 / 470 to 505 MHz) The Shure ULXS4 Standard receiver offers an exceptional value in both performance and price, for both working musicians and sound installers. The feature set of the versatile receiver offers a direct path to full, clear audio signals, unencumbered and unattached.
- "RF" Diversity Signal Indicators
- Transmitted (TX) Audio Indicators
- Receiving Antenna Indicator
- Transmitter Battery Life Indicator
- PS40, in-line power supply with locking DC connector.
- MODE Button for Menu Display
- SET Button for Saving Settings
- XLR and 1/4" outputs with level control
- Space-saving 1/2 rack design
UPC: 042406147576 - Shure ULX1 UHF Bodypack Transmitter (Channel Group / G3) The Shure ULX1 is a low-profile, highly durable bodypack UHF wireless transmitter that has all the characteristics to meet the demands of high performance. For use with headworn, lavalier and instrument microphones, as well as guitars and basses. Attaches to belt, waistband or guitar strap with clip for hands-free mobility.
- Power/Battery LED - Green When ON, Red When Battery Low
- Three-Segment Battery Power Icon
- PEAK Icon - Appears When Audio Signal Overloads
- MODE Button for Menu Display
- SET Button for Saving Settings
- Adjustable Audio Gain Control (25 dB Range)
- Input Attenuation Switch - Select 0 dB for Voice/Low Output; 20 dB for High Output
UPC: 042406147507 - Shure WH20 Headset Mic with TA4F Connector for Shure Bodypack Transmitters The improved version of the WH10, the Shure WH20, is a rugged, lightweight, dynamic headset microphone that provides high-quality voice pickup. It fits securely for active microphone users, such as aerobics instructors and musicians, with low visibility for stage appearances. The WH20 is suitable for any voice communications application where comfort and reliability are required. The WH20 has a cardioid (unidirectional) pickup pattern. This provides greater gain-before-feedback and isolation from ambient noise and other unwanted sound sources, such as air conditioning, musical instruments, and loudspeakers. A carefully shaped frequency response includes a voice-frequency presence peak and a low-frequency roll off to compensate for the proximity effect inherent in cardioid microphones during close-talk operation. An integrated elastic CROAKIES headband secures the headset comfortably. The headband, wireframe, and gooseneck are adjustable to accommodate any head size or shape.
- TA4F connector for Shure bodypack transmitters is included
- Lightweight wireframe and headband adjust for a secure, comfortable fit
- Extra-strong, small-diameter attached microphone cable resists breakage
- Collapsible microphone boom for easy storage and transportation
- Smooth, natural frequency response comparable to high-quality dynamic handheld vocal microphones
- High input clipping level eliminates overload distortion
- Reliable at temperature and humidity extremes
UPC: 042406066037 In the Box - ULXS4 Standard Wireless Receiver with PS40 (G3 / 470 to 505 MHz) vaawqsur
- PS40 Power Supply
- Limited 1-Year Warranty
- ULX1 UHF Bodypack Transmitter (Channel Group / G3) vaawqsur
- WH20 Headset Mic with TA4F Connector for Shure Bodypack Transmitters
Table of Contents
|
Upload User Manual
Have you got an user manual for the Shure ULX Pro Series Wireless Headset Microphone Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - Shure ULXS4 Standard Wireless Receiver with PS40 (G3 / 470 to 505 MHz)
| Type of Receiver | ULXS4 Rack/Table-Top Mount UHF Standard Diversity Receiver | | RF Carrier Frequency Range | G3 / 470 to 505 MHz | | Frequency Response | 25 Hz - 15 kHz, (±2 dB) | | Signal-to-Noise Ratio | Greater Than 90 dB | | Approx. Working Range | 300' (100 m) NOTE: Actual working range depends on RF signal absorption, reflection, and interference | | Type of Outputs | Balanced XLR - 22 Ohms, 1 = Ground, 2 = Hot, 3 = Cold
Unbalanced 1/4" Phone Jack - 3k Ohms, Tip = Hot, Ring/Sleeve = Gnd
(Both Outputs Feature: Voltage, Current and Phantom Power Protection) | | Headphone Monitoring | No | | Power Requirements | 14 - 18 VDC (negative ground), 550 mA
External Power Supply - PS40, Included, Now with Locking DC Connector! | | Battery Type/Approx. Life | Not Applicable, Unit Does Not Operate on Batteries | | # Of Channels | Over 1400 User Selectable Frequencies | | Display | Yes, Power On Indicator, Diversity Signal Indicators and Audio Peak Indicator, Channel, Group, Transmitter Low Battery Warning. | | Mounting Options | Rack/Table-Top Mount 1/2 Rack Space | | Antenna Type | Remotable 1/2 Wave, Rear Mounted | | Dimensions | 1.72 x 8.56 x 6.52" (43 x 214 x 163 mm) HxWxD | | Weight | 2.31 lb (1049 g) | | | | Box Dimensions (LxWxH) | 18.6 x 14.5 x 4.0" | - Shure ULX1 UHF Bodypack Transmitter (Channel Group / G3)
| Type of Transmitter | ULX1 Bodypack UHF Transmitter | | # Of Channels | Over 1400 User Selectable Frequencies (Channel Group / G3) | | Type of Input Connector | TAF4 4-Pin Mini Connector | | Type of Microphone | Not Applicable, Microphone Not Included | | Polar Pattern | Not Applicable, Microphone Not Included | | Interchangeable Mic Heads | Yes, Use any of the Shure Lavalier, Headset, Instrument Microphones, or Guitar/Bass/XLR Adapter Cables that terminate to a Mini 4-pin TA4F Connector | | Battery Type/Approx. Life | Non-Rechargeable Type
9 V Lithium Battery / 21 Hours (Recommended)
9 V Alkaline Battery / 8 - 9 Hours (Recommended)
9 V Carbon-Zinc Battery / 5 Hours (NOT Recommended)
Rechargeable Type
9 V Ni-Cad Battery / 2 Hours (NOT Recommended)
9 V Ni-MH Battery / 2.5 Hours (NOT Recommended) | | Mute Switch | Yes | | Level Control | Yes, 25 dB Gain Adjustment Range | | Antenna Type | Wire Type | | Display | Power On/Off Indicator, 3-Segment Low Battery Indicator, Channel and Group, Peak Icon (Input Overload Warning) | | Gain Adjustment Range | 25 dB | | Attenuation Switch | 0, -20 dB | | Input Impedance | 1 MΩ | | RF Output Power | 30 mW maximum | | Dimensions | 3.86 x 2.68 x 1.10" (96.5 x 67.0 x 26.7 mm) HxWxD | | Weight | 2.8 oz (79 g) without Battery | | | | Box Dimensions (LxWxH) | 11.5 x 5.45 x 3.25" | - Shure WH20 Headset Mic with TA4F Connector for Shure Bodypack Transmitters
| Transducer | Dynamic, close-talking | | Polar Pattern | Cardioid | | Frequency Response | 50 Hz to 15 kHz, Measured @ 0.3" (8.0 mm) | | Power Requirements | Dynamic (Requires NO Phantom Power) | | Impedance | 150 ohms (200 ohms actual) | | Output Level | Open Circuit Voltage: -67 dB/Pa (1.48' / 0.45 m)
1 Pa = 94 dB SPL
Close-talked (@ 0.50" / 12.5 mm) @ 1,000 Hz | | Electromagnetic Hum Sensitivity | 38.4 dB equivalent SPL in a 1 mOe field | | Operating Temperature | 0 to 140°F (-18 to 60°C) | | Storage Temperature | -20 to 165°F (-29 to 74°C) | | Connector | TA4F connector for Shure bodypack transmitters | | Cable Length | 4.0' (1.2 m) | | Dimensions | Not specified by manufacturer | | Weight | 2.2 oz (63 g) including connector | | | | Box Dimensions (LxWxH) | 7.6 x 6.4 x 3.1" |
