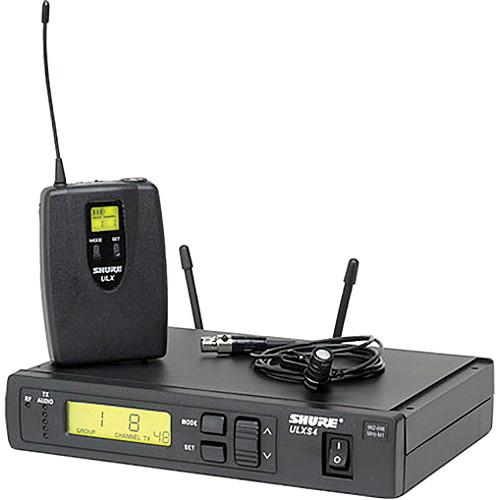

Product description The Shure ULX Series ULXS14/85 Wireless Lavalier Microphone System is designed for use in broadcast, performances, conferences, houses of worship, schools, and businesses. The system includes the ULXS4 diversity receiver, ULX1 bodypack transmitter and WL185 lavalier microphone.The ULXS4 receiver operates on UHF frequencies, offering up to 1440 user selectable frequencies to choose from. The dual-antenna design represents diversity technology, which provides optimum resistance against RF interference and drop-out. Dual internal receivers are set to the same frequency and are constantly vying for the strongest reception. The receiver also features a balanced XLR output that is switchable between mic and line-level signal as well as an unbalanced, high impedance 1/4" jack output. A multifunction LCD provides group and channel information, transmitter battery life, and more. Two 5-segment LED's provide audio and RF metering.The ULX1 bodypack transmitter is lightweight and portable featuring a belt-clip for use with camera and guitar straps, belts, waistbands, and more. The transmitter also features up to 1440 user selectable UHF frequencies, and a comprehensive LCD displays group, channel, and battery life information. An input attenuation switch allows 0 dB or 20 dB output. Adjustable audio gain control is provided and the transmitter boasts up to 9-hour battery life on a single 9V battery.The WL185 lavalier microphone features a cardioid pickup pattern, which minimizes off-axis noise and feedback caused by speakers or stage monitors. The WL185 has a 50 Hz to 17 kHz frequency response making it suitable for a wide variety of applications. - ULX1 bodypack transmitter with WL185 lavalier
- Automatic frequency selection
- Up to 1440 selectable frequencies
- 5-segment transmitted audio signal strength meter
- 3-segment transmitter battery fuel gauge
- Advanced multi-function LCD displays group and channel
- Detachable 1/4-wave antenna
UPC: 042406147668 In the Box Shure ULX Professional Series ULXS14/85 Wireless Lavalier Microphone System (G3: 470 to 505 MHz) Tie (Clothing) Clip Windscreen Zippered Transmitter Carry Bag, (26A13) Small Adjustment Screwdriver (80A498) 2 x 1/4-Wave Antennas PS40 Power Supply Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Shure ULX Professional Series ULXS14 85 Wireless Lavalier Microphone System in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersShure ULXS14/85-G3 Specs | | | Type of System | Rack/table-top mountable UHF diversity wireless lavalier system | | RF Carrier Frequency Range | G3: 470 to 505 MHz | | Approx. Working Range | 300' / 100 m Actual working range depends on RF signal absorption, reflection, and interference | | Overall Frequency Response | 25 Hz to 15 kHz, (±2 dB) Dependent on microphone type | | Dynamic Range | > 105 dB (A-weighted) | | RF Sensitivity | 1.26 mV for 12 dB SINAD (typical) | | # Of Channels | Up to 1440 user selectable frequencies | | # Of Simultaneous Systems | Up to 20 | | | | Type of Receiver | ULXS4 rack/table-top mount standard UHF receiver | | Outputs | XLR Balanced: Mic 500 Ohms, Line 20 kOhms
1/4" / 6.3 mm: 3 kOhms | | Headphone Monitoring | No | | Power Requirements | 14 - 18 VDC, 600 mA (negative ground)
External power supply included | | Battery Type/Approx. Life | Not applicable; unit does not operate on batteries | | Display | Yes; power on indicator, diversity signal indicators, and audio peak indicator, channel, group, transmitter low-battery warning | | Antenna Connection Type | BNC, 50 Ohms
DC Bias 12 VDC, 150 mA max | | Dimensions (WxDxH) | 8.6 x 6.0 x 1.6" / 21.9 x 15.2 x 4.1 cm | | Weight | 21.2 oz / 600.0 g | | | | Type of Transmitter | ULX-1 bodypack UHF transmitter | | Type of Input Connector | TAF4 4-pin mini connector | | Battery Type/Approx. Life | 9 V alkaline battery
Up to 9-hour battery life | | Mute Switch | Yes | | Level Control | Yes, 40 dB (continuously adjustable) | | Antenna Type | Wired, 1/2 wave (fixed) | | Display | Power On/Off indicator, 3-segment low-battery indicator, channel and group, peak icon (input overload warning) | | Dimensions (WxDxH) | 3.86 x 2.68 x 1.10" / 96.5 x 67 x 26.7 mm | | Weight | 2.8 oz / 79 g | | | | Model | WL185 | | Type | Condenser | | Pickup Pattern | Cardioid | | Frequency Response | 50 Hz to 17 kHz | | Max SPL | 130.5 dB | | Dynamic Range | 102.5 dB | | | | Package Weight | 4.4 lb | | Box Dimensions (LxWxH) | 18.0 x 14.5 x 4.0" |
