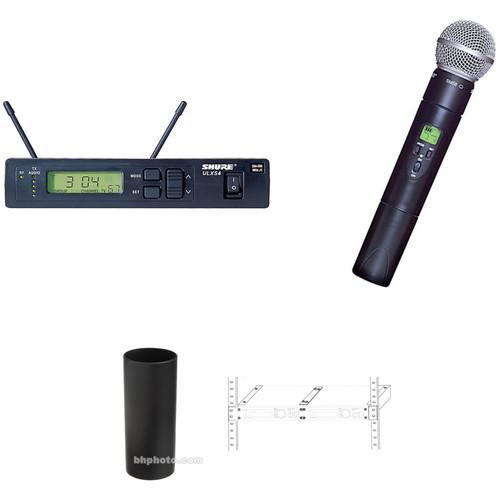

Product description The Shure ULX-S24 Receiver and Wireless Handheld Microphone Kit from includes the Shure ULXS4 standard wireless receiver with PS40 power supply, the ULX2/58 UHF handheld transmitter with an SM58 microphone head, the WA555 external grip (switch cover) for the transmitter, UA507 rackmount hardware for dual ULX receivers, a WA371 swivel adapter, zippered transmitter carry bag, a 9V battery, and a small adjustment screwdriver. This kit can be used to capture audio for live stage, theater, rehearsal, speech, vocal, and presentation applications. - Shure ULXS4 Standard Wireless Receiver with PS40 (G3 / 470 to 505 MHz) The Shure ULXS4 Standard receiver offers an exceptional value in both performance and price, for both working musicians and sound installers. The feature set of the versatile receiver offers a direct path to full, clear audio signals, unencumbered and unattached.
- "RF" Diversity Signal Indicators
- Transmitted (TX) Audio Indicators
- Receiving Antenna Indicator
- Transmitter Battery Life Indicator
- PS40, in-line power supply with locking DC connector.
- MODE Button for Menu Display
- SET Button for Saving Settings
- XLR and 1/4" outputs with level control
- Space-saving 1/2 rack design
UPC: 042406147576 - Shure ULX2/58 UHF Handheld Transmitter with SM58 Microphone Head (G3: 470 to 505 MHz) The ULX2/58 UHF Handheld Transmitter with SM58 Microphone Head features a Shure SM58 cardioid capsule. It can be used when paired with a ULXS4 receiver (sold separately) to capture audio for speech and presentation applications.The ULX-2 transmitter provides 1400 user selectable frequencies. A comprehensive LCD display provides channel and frequency information and monitors battery life. The cardioid polar pattern is effective against off-axis noise, which causes feedback and unwanted ambient noise.Built with rugged construction, an integrated shockmount system and a steel mesh grille ensure that even with rough handling the SM58 will perform consistently. Outdoors or indoors, singing or speech, the ULX2/58 UHF Handheld Transmitter with SM58 Microphone Head is a suitable choice for professionals worldwide.
- Up to 9-hour battery life
- Power On/Off switch, battery
- LED: green when turned on, red when battery is low
- Three-segment battery power icon
- Peak icon appears when audio signal overloads
- Set button for saving settings
- Adjustable audio gain control
- Battery cover unscrews to expose battery and gain control
UPC: 042406147514 - Shure WA555 Switch Cover for LX2 The Shure Model WA555 is an external sleeve assembly that provides a textured grip to your microphone while preventing accidental movement of the microphone's side-mounted controls. The (Black) WA555 is for use with the LX2, SC2, T2, U2, UC2, ULX2 or UT2 handheld microphone/transmitters. UPC: 042406055284
- Shure UA507 Rackmount Hardware The Shure UA507 is a rack mount adapter kit for the 2 ULX series receiver. The mount accommodates dual ULX receivers and mounts into a standard 19" rack. UPC: 042406088817
In the Box - ULXS4 Standard Wireless Receiver with PS40 (G3 / 470 to 505 MHz) wayzdttsbdtb
- PS40 Power Supply
- Limited 1-Year Warranty
- ULX2/58 UHF Handheld Transmitter with SM58 Microphone Head (G3: 470 to 505 MHz)
- WA555 External Grip (Switch Cover) for LX2 Transmitter
- UA507 Rackmount Hardware for Dual ULX Recievers
Table of Contents
|
Upload User Manual
Have you got an user manual for the Shure ULX-S24 Receiver and Wireless Handheld Microphone Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - Shure ULXS4 Standard Wireless Receiver with PS40 (G3 / 470 to 505 MHz)
| Type of Receiver | ULXS4 Rack/Table-Top Mount UHF Standard Diversity Receiver | | RF Carrier Frequency Range | G3 / 470 to 505 MHz | | Frequency Response | 25 Hz - 15 kHz, (±2 dB) | | Signal-to-Noise Ratio | Greater Than 90 dB | | Approx. Working Range | 300' (100 m) NOTE: Actual working range depends on RF signal absorption, reflection, and interference | | Type of Outputs | Balanced XLR - 22 Ohms, 1 = Ground, 2 = Hot, 3 = Cold
Unbalanced 1/4" Phone Jack - 3k Ohms, Tip = Hot, Ring/Sleeve = Gnd
(Both Outputs Feature: Voltage, Current and Phantom Power Protection) | | Headphone Monitoring | No | | Power Requirements | 14 - 18 VDC (negative ground), 550 mA
External Power Supply - PS40, Included, Now with Locking DC Connector! | | Battery Type/Approx. Life | Not Applicable, Unit Does Not Operate on Batteries | | # Of Channels | Over 1400 User Selectable Frequencies | | Display | Yes, Power On Indicator, Diversity Signal Indicators and Audio Peak Indicator, Channel, Group, Transmitter Low Battery Warning. | | Mounting Options | Rack/Table-Top Mount 1/2 Rack Space | | Antenna Type | Remotable 1/2 Wave, Rear Mounted | | Dimensions | 1.72 x 8.56 x 6.52" (43 x 214 x 163 mm) HxWxD | | Weight | 2.31 lb (1049 g) | | | | Box Dimensions (LxWxH) | 18.6 x 14.5 x 4.0" | - Shure ULX2/58 UHF Handheld Transmitter with SM58 Microphone Head (G3: 470 to 505 MHz)
| Frequency Band | G3: 470 to 505 MHz | | # Of Channels | Over 1400 user selectable frequencies | | Type of Input Connector | Microphone element is attached (screwed on) to transmitter | | Type of Microphone | SM58 dynamic microphone head | | Polar Pattern | Cardioid | | Interchangeable Mic Heads | Yes | | Battery Type/Approx. Life | 9 V alkaline or 8.4 V NiMH 500 mA (optional) battery
Up to 9 hours (with 9 V alkaline battery) | | Mute Switch | Yes | | Level Control | 25 dB gain adjustment range | | Antenna Type | Internal | | Display | Power On/Off indicator, 3-segment low-battery indicator, channel and group, peak icon (input overload warning) | | Dimensions (L x Diam) | 9.49 x 2.01" / 24.10 x 5.11 cm | | Weight | 10.4 oz / 294.8 g | | | | Box Dimensions (LxWxH) | 11.0 x 5.3 x 3.1" | - Shure WA555 Switch Cover for LX2
| | | Box Dimensions (LxWxH) | 4.8 x 2.7 x 2.0" | - Shure UA507 Rackmount Hardware
| | | Box Dimensions (LxWxH) | 10.9 x 5.3 x 3.2" |
