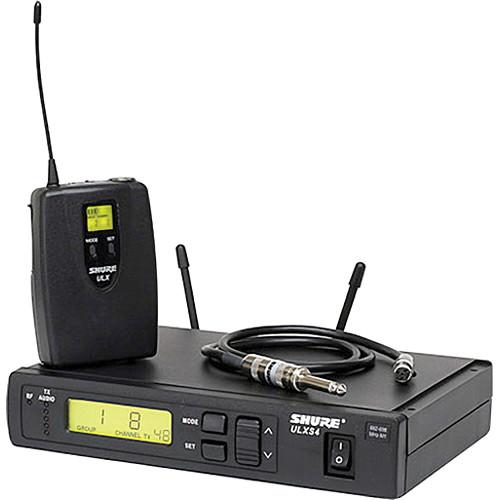

Product description The Shure ULX Series wireless systems provide professional wireless microphone solutions for broadcast, performances, conferences, houses of worship, schools, and businesses. The system includes the ULXS4 diversity receiver, ULX1 body-pack transmitter and WA302 instrument connecting cable. The ULXS4 receiver operates on UHF frequencies, offering over 1400 user selectable frequencies to choose from. The dual antenna design represents diversity technology, which provides optimum resistance against RF interference and drop-out. Dual internal receivers are set to the same frequency and are constantly vying for the strongest reception. The receiver features a balanced XLR output that is switchable between mic and line level signal as well as an unbalanced 1/4" Phone output. A multifunction LCD provides group and channel information, transmitter battery life, and more. Two 5-segment LED's provide audio and RF metering.The ULX1 body-pack transmitter is light weight and portable featuring a belt-clip for use with camera and guitar straps, belts, waistbands etc. The transmitter also features over 1400 user selectable UHF frequencies and a comprehensive LCD displays group and channel information and more. An input attenuation switch allows 0dB and 20dB output. Adjustable audio gain control is provided and the transmitter boasts 8-9 hour battery life on a single 9V battery. The WA302 instrument cable features a 4-pin mini connector and 1/4" Phone male connector. The cable's 4-pin mini (TA4F) end connects to the ULX1 body-pack transmitter and the 1/4" phone end provides a direct input for guitar, bass, electric stringed instruments and more. The cable measures 2.5 feet (1.2m) in length. - Wireless Instrument Cable
- This particular system includes the WA302 instrument cable which connects directly to the body-pack transmitter. This allows wireless transmission of guitar, bass and more
- Diversity Receiver
- The ULXS4 receiver features a diversity design, represented with it's dual antennas. The design features dual internal receivers, constantly vying for the strongest reception.
- Frequency Agile
- Both transmitter and receiver operate via UHF frequencies and offer over 1400 user selectable frequencies.
- Comprehensive Display
- Comprehensive LCD displays on the transmitter and receiver provide group and channel information. Two 5-segment LED's provide audio level and RF signal information on the receiver.
UPC: 042406147606 In the Box Shure ULX Series - Wireless Instrument Microphone System Zippered Transmitter Carry Bag Small Adjustment Screwdriver WA-302 Guitar/Bass-to-Transmitter Connecting Cable PS40 Power Supply 1 Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Shure ULX Series - Wireless Instrument Microphone System in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersShure ULXS14-G3 Specs | | | Type of System | Rack/Table Top Mountable UHF Diversity Wireless Instrument System | | RF Carrier Frequency Range | 554.000 to 865.000 MHz | | Approx. Working Range | 300 Feet (100m) NOTE: Actual working range depends on RF signal absorption, reflection, and interference | | Overall Frequency Response | 25 Hz - 15 kHz, (±2 dB) | | Signal-to-Noise Ratio | Greater Than 90 dB | | # Of Channels | Over 1400 User Selectable Frequencies (Frequency G3 / 470 - 505 MHz) | | # Of Simultaneous Systems | Up to 20 | | | | Type of Receiver | ULXS4 Rack/Table-Top Mount Standard UHF Diversity Receiver | | Type of Outputs | Balanced XLR - 22 Ohms, 1 = Ground, 2 = Hot, 3 = Cold
Unbalanced 1/4" Phone Jack - 3k Ohms, Tip = Hot, Ring/Sleeve = Gnd
(Both Outputs Feature: Voltage, Current and Phantom Power Protection) | | Headphone Monitoring | No | | Power Requirements | 14 - 18 Vdc (negative ground), 550 mA
External Power Supply - PS40, Included, Now with Locking DC Connector! | | Battery Type/Approx. Life | Not Applicable, Unit Does Not Operate on Batteries | | Display | Yes, Power On Indicator, Diversity Signal Indicators and Audio Peak Indicator, Channel, Group, Transmitter Low Battery Warning. | | Mounting Options | Rack / Table Top Mount 1/2 Rack Space | | Antenna Type | Wire Type | | Dimensions | 1.72 x 8.56 x 6.52" (43 x 214 x 163mm) HxWxD | | Weight | 2.8 oz. (79 g) without Battery | | | | Type of Transmitter | ULX-1 Body-pack UHF Transmitter | | Type of Input Connector | TAF4 4-Pin Mini Connector | | Type of Microphone | Not Applicable, Microphone Not Included System Includes a WA-302 Guitar/Bass-to-Transmitter (TA4F-to-1/4" (TS) Jack) Connecting Cable | | Polar Pattern | Not Applicable, See Above | | Interchangeable Mic Heads | Yes, Use any of the Shure Lavalier, Headset, Instrument Microphones, or Guitar/Bass/XLR Adapter Cables that terminate to a Mini 4-pin TA4F Connector. | | Battery Type/Approx. Life | Non-Rechargeable Type
9v Lithium Battery / 21 Hours (Recommended)
9v Alkaline Battery / 8 - 9 Hours (Recommended)
9v Carbon-Zinc Battery / 5 Hours (NOT Recommended)
Rechargeable Type
9v Ni-Cad Battery / 2 Hours (NOT Recommended)
9v Ni-MH Battery / 2.5 Hours (NOT Recommended) | | Mute Switch | Yes | | Level Control | Yes, 25 dB Gain Adjustment Range | | Antenna Type | Removable 1/2 Wave, Rear Mounted | | Display | Power On/Off Indicator, 3-Segment Low Battery Indicator, Channel and Group, Peak Icon (Input Overload Warning) | | Dimensions (WxDxH) | 3.86 x 2.68 x 1.10" (96.5 x 67 x 26.7mm) HxWxD | | Weight | 2 lbs., 5 oz. (1049 g) | | | | Package Weight | 4.4 lb | | Box Dimensions (LxWxH) | 18.3 x 14.6 x 3.7" |
