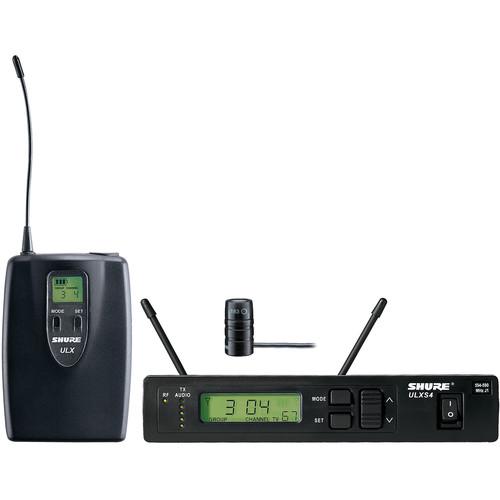

Product description The Shure ULX Single-Channel Lavalier UHF Wireless Kit from includes a ULXS4 single-channel receiver, a ULX1 bodypack transmitter, and a WL183 lavalier microphone with an omnidirectional polar pattern. The system is tuned to Shure's G3 frequency band between 470 and 505 MHz. - Shure ULXS4 Standard Wireless Receiver with PS40 (G3 / 470 to 505 MHz) The Shure ULXS4 Standard receiver offers an exceptional value in both performance and price, for both working musicians and sound installers. The feature set of the versatile receiver offers a direct path to full, clear audio signals, unencumbered and unattached.
- "RF" Diversity Signal Indicators
- Transmitted (TX) Audio Indicators
- Receiving Antenna Indicator
- Transmitter Battery Life Indicator
- PS40, in-line power supply with locking DC connector.
- MODE Button for Menu Display
- SET Button for Saving Settings
- XLR and 1/4" outputs with level control
- Space-saving 1/2 rack design
UPC: 042406147576 - Shure ULX1 UHF Bodypack Transmitter (Channel Group / G3) The Shure ULX1 is a low-profile, highly durable bodypack UHF wireless transmitter that has all the characteristics to meet the demands of high performance. For use with headworn, lavalier and instrument microphones, as well as guitars and basses. Attaches to belt, waistband or guitar strap with clip for hands-free mobility.
- Power/Battery LED - Green When ON, Red When Battery Low
- Three-Segment Battery Power Icon
- PEAK Icon - Appears When Audio Signal Overloads
- MODE Button for Menu Display
- SET Button for Saving Settings
- Adjustable Audio Gain Control (25 dB Range)
- Input Attenuation Switch - Select 0 dB for Voice/Low Output; 20 dB for High Output
UPC: 042406147507 - Shure WL183 Omnidirectional Lavalier Microphone The Shure WL183 is a miniature omnidirectional microphone designed for general recording and sound reinforcement application. The omnidirectional pattern provides a generous pick up at the perimeter of the capsule, enhancing ambient audio pick up while minimizing handling noise. The WL183 features a wide sensitivity and frequency response, reproducing speech with great detail and clarity. The 4 foot (1.2 meter) cable cable terminates to a 4-pin TA4-female connector, compatible with Shure wireless transmitters and power supplies.
- Miniature Profile
- The miniature profile of the WL183 capsule allows the microphone to be easily concealed during performances or video shoots.
- Omnidirectional Pattern
- The omnidirectional polar pattern provides a 360 degree pick up range, enabling a generous signal pick up without added noise.
- TA4 Female Connection
- The 4 foot (1.2 meter) cable terminates to a TA4 female connection, compatible with Shure wireless transmitters and power supply modules.
UPC: 042406055307 In the Box - ULXS4 Standard Wireless Receiver with PS40 (G3 / 470 to 505 MHz) dswdsbtdaztyy
- PS40 Power Supply
- Limited 1-Year Warranty
- ULX1 UHF Bodypack Transmitter (Channel Group / G3) dswdsbtdaztyy
- WL183 Omnidirectional Lavalier Microphone
Table of Contents
|
Upload User Manual
Have you got an user manual for the Shure ULX Single-Channel Lavalier UHF Wireless Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - Shure ULXS4 Standard Wireless Receiver with PS40 (G3 / 470 to 505 MHz)
| Type of Receiver | ULXS4 Rack/Table-Top Mount UHF Standard Diversity Receiver | | RF Carrier Frequency Range | G3 / 470 to 505 MHz | | Frequency Response | 25 Hz - 15 kHz, (±2 dB) | | Signal-to-Noise Ratio | Greater Than 90 dB | | Approx. Working Range | 300' (100 m) NOTE: Actual working range depends on RF signal absorption, reflection, and interference | | Type of Outputs | Balanced XLR - 22 Ohms, 1 = Ground, 2 = Hot, 3 = Cold
Unbalanced 1/4" Phone Jack - 3k Ohms, Tip = Hot, Ring/Sleeve = Gnd
(Both Outputs Feature: Voltage, Current and Phantom Power Protection) | | Headphone Monitoring | No | | Power Requirements | 14 - 18 VDC (negative ground), 550 mA
External Power Supply - PS40, Included, Now with Locking DC Connector! | | Battery Type/Approx. Life | Not Applicable, Unit Does Not Operate on Batteries | | # Of Channels | Over 1400 User Selectable Frequencies | | Display | Yes, Power On Indicator, Diversity Signal Indicators and Audio Peak Indicator, Channel, Group, Transmitter Low Battery Warning. | | Mounting Options | Rack/Table-Top Mount 1/2 Rack Space | | Antenna Type | Remotable 1/2 Wave, Rear Mounted | | Dimensions | 1.72 x 8.56 x 6.52" (43 x 214 x 163 mm) HxWxD | | Weight | 2.31 lb (1049 g) | | | | Box Dimensions (LxWxH) | 18.6 x 14.5 x 4.0" | - Shure ULX1 UHF Bodypack Transmitter (Channel Group / G3)
| Type of Transmitter | ULX1 Bodypack UHF Transmitter | | # Of Channels | Over 1400 User Selectable Frequencies (Channel Group / G3) | | Type of Input Connector | TAF4 4-Pin Mini Connector | | Type of Microphone | Not Applicable, Microphone Not Included | | Polar Pattern | Not Applicable, Microphone Not Included | | Interchangeable Mic Heads | Yes, Use any of the Shure Lavalier, Headset, Instrument Microphones, or Guitar/Bass/XLR Adapter Cables that terminate to a Mini 4-pin TA4F Connector | | Battery Type/Approx. Life | Non-Rechargeable Type
9 V Lithium Battery / 21 Hours (Recommended)
9 V Alkaline Battery / 8 - 9 Hours (Recommended)
9 V Carbon-Zinc Battery / 5 Hours (NOT Recommended)
Rechargeable Type
9 V Ni-Cad Battery / 2 Hours (NOT Recommended)
9 V Ni-MH Battery / 2.5 Hours (NOT Recommended) | | Mute Switch | Yes | | Level Control | Yes, 25 dB Gain Adjustment Range | | Antenna Type | Wire Type | | Display | Power On/Off Indicator, 3-Segment Low Battery Indicator, Channel and Group, Peak Icon (Input Overload Warning) | | Gain Adjustment Range | 25 dB | | Attenuation Switch | 0, -20 dB | | Input Impedance | 1 MΩ | | RF Output Power | 30 mW maximum | | Dimensions | 3.86 x 2.68 x 1.10" (96.5 x 67.0 x 26.7 mm) HxWxD | | Weight | 2.8 oz (79 g) without Battery | | | | Box Dimensions (LxWxH) | 11.5 x 5.45 x 3.25" | - Shure WL183 Omnidirectional Lavalier Microphone
| Transducer | Electret Condenser | | Polar Pattern | Omnidirectional | | Frequency Response | 50 Hz - 17 kHz | | Dynamic Range (Typical) | 102.5 dB | | Signal-to-Noise Ratio | Output Noise: 22.5dB SPL | | Maximum Input Sound Level | 125 dB | | Power Requirements | +5v DC on Pin 2, Return on Pin 1 (Ground) Provided by Wireless Transmitters | | Output Impedance | 1800 ohms | | Output Connectors | TA4F Mini 4-Pin Connector | | Pad | None | | Low Frequency Roll-Off | None | | Dimensions | Cable Length - 4 feet (1.2m) | | Weight | not specified by manufacturer | | | | Box Dimensions (LxWxH) | 6.7 x 4.4 x 3.3" |
