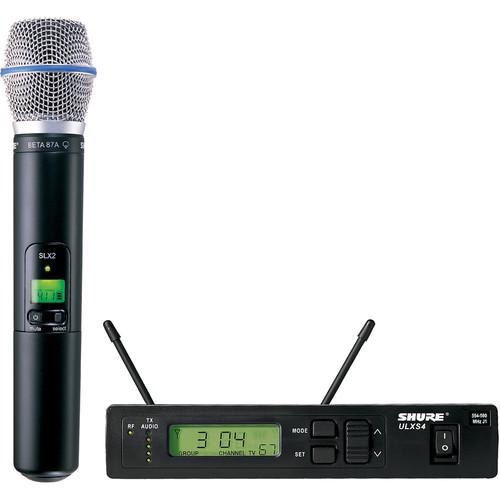

User Manual for Shure ULX Single-Channel UHF Wireless Handheld Kit Click to enlarge the picture
Contents of the user manual for the Shure ULX Single-Channel UHF Wireless Handheld
- Product category: Wireless Systems Shure
- Brand: Shure
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Shure Wireless Systems
|
User manual for the Shure ULX Single-Channel UHF Wireless Handheld contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Shure product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Shure user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Shure product will considerably shorten its lifespan!
|
Product description This Shure ULX Single-Channel UHF Wireless Handheld Ki from consists of a ULXS4 receiver and a ULX2 handheld transmitter with an BETA 87A microphone capsule. The system is tuned to Shure's G3 frequency band between 470 and 505 MHz. - Shure ULXS4 Standard Wireless Receiver with PS40 (G3 / 470 to 505 MHz) The Shure ULXS4 Standard receiver offers an exceptional value in both performance and price, for both working musicians and sound installers. The feature set of the versatile receiver offers a direct path to full, clear audio signals, unencumbered and unattached.
- "RF" Diversity Signal Indicators
- Transmitted (TX) Audio Indicators
- Receiving Antenna Indicator
- Transmitter Battery Life Indicator
- PS40, in-line power supply with locking DC connector.
- MODE Button for Menu Display
- SET Button for Saving Settings
- XLR and 1/4" outputs with level control
- Space-saving 1/2 rack design
UPC: 042406147576 - Shure ULX2/BETA87A UHF Handheld Transmitter with BETA 87A Mic Head (G3E: 470 to 506 MHz) The Shure ULX2/BETA87A Wireless Handheld Transmitter is designed for use with Shure's ULX series wireless microphone receivers. The transmitter is available with various Shure microphone capsules; this version features the BETA 87A supercardioid microphone head. The ULX2 will operate for up to nine hours on a single 9V alkaline battery.
- Up to 9 hours of battery life
- Power/battery LED lights green when on, or red when battery is low
- 3-segment battery power icon
- Peak icon appears when audio signal overloads
- Mode button for menu display
- Set button for saving settings
- Adjustable audio gain control
- Input attenuation switch with two settings—0 dB for voice / low output, or 20 dB for high output
- Battery cover unscrews to expose battery and gain control
BETA 87 A Microphone Element - Smooth frequency response with gradual presence rise
- Highly consistent supercardioid polar pattern provides superior gain before feedback
- Electronic low-frequency roll-off compensates for proximity effect
- Wide dynamic range and low distortion characteristics
- Very low susceptibility to RFI and electromagnetic hum
- Advanced cartridge shockmount system absorbs mechanical shocks and reduces handling noise
- Built-in pop filter reduces undesirable wind and breath sounds
UPC: 042406147552 In the Box - ULXS4 Standard Wireless Receiver with PS40 (G3 / 470 to 505 MHz) yyyvaqdcyyqda
- PS40 Power Supply
- Limited 1-Year Warranty
- ULX2/BETA87A UHF Handheld Transmitter with BETA 87A Mic Head (G3E: 470 to 506 MHz)
Table of Contents
|
Upload User Manual
Have you got an user manual for the Shure ULX Single-Channel UHF Wireless Handheld Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - Shure ULXS4 Standard Wireless Receiver with PS40 (G3 / 470 to 505 MHz)
| Type of Receiver | ULXS4 Rack/Table-Top Mount UHF Standard Diversity Receiver | | RF Carrier Frequency Range | G3 / 470 to 505 MHz | | Frequency Response | 25 Hz - 15 kHz, (±2 dB) | | Signal-to-Noise Ratio | Greater Than 90 dB | | Approx. Working Range | 300' (100 m) NOTE: Actual working range depends on RF signal absorption, reflection, and interference | | Type of Outputs | Balanced XLR - 22 Ohms, 1 = Ground, 2 = Hot, 3 = Cold
Unbalanced 1/4" Phone Jack - 3k Ohms, Tip = Hot, Ring/Sleeve = Gnd
(Both Outputs Feature: Voltage, Current and Phantom Power Protection) | | Headphone Monitoring | No | | Power Requirements | 14 - 18 VDC (negative ground), 550 mA
External Power Supply - PS40, Included, Now with Locking DC Connector! | | Battery Type/Approx. Life | Not Applicable, Unit Does Not Operate on Batteries | | # Of Channels | Over 1400 User Selectable Frequencies | | Display | Yes, Power On Indicator, Diversity Signal Indicators and Audio Peak Indicator, Channel, Group, Transmitter Low Battery Warning. | | Mounting Options | Rack/Table-Top Mount 1/2 Rack Space | | Antenna Type | Remotable 1/2 Wave, Rear Mounted | | Dimensions | 1.72 x 8.56 x 6.52" (43 x 214 x 163 mm) HxWxD | | Weight | 2.31 lb (1049 g) | | | | Box Dimensions (LxWxH) | 18.6 x 14.5 x 4.0" | - Shure ULX2/BETA87A UHF Handheld Transmitter with BETA 87A Mic Head (G3E: 470 to 506 MHz)
| Type of Transmitter | ULX2/BETA87A handheld UHF transmitter | | # Of Channels | Up to 1400 user-selectable frequencies | | Transmission Frequencies | Channel Group G3E: 470 to 506 MHz | | Type of Microphone | BETA 87A condenser mcrophone head | | Polar Pattern | Supercardioid | | Interchangeable Mic Heads | Yes | | Battery Life | Up to 9 hours | | Battery Type | 9 V alkaline | | Mute Switch | Yes | | Level Control | 25 dB gain adjustment range | | Antenna Type | Internal | | Display | Power on/off indicator, 3-segment low-battery indicator, channel and group, peak icon | | Dimensions (Diam. x L) | 2.0 x 8.8" / 5.1 x 22.4 cm | | Weight | 9.1 oz / 258 g (excluding battery) | | | | Box Dimensions (LxWxH) | 11.0 x 5.4 x 3.2" |
