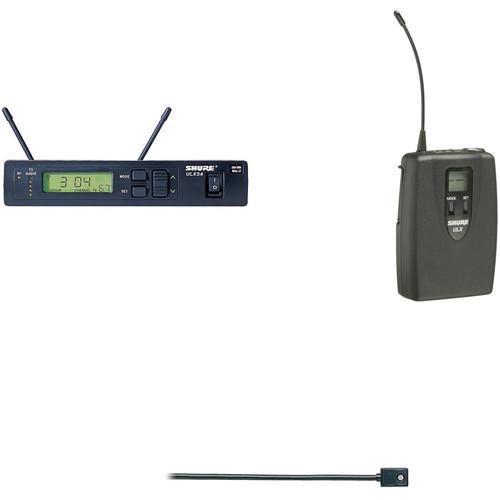

Product description The Shure ULX Single Lavalier Mic Multi-Frequency UHF Wireless Kit from includes a ULXS4 receiver, a ULX1 bodypack transmitter, and a WL93 subminiature lavalier microphone with an omnidirectional pattern. The system is tuned to Shure's J1 frequency band between 554 and 590 MHz. - Shure ULXS4 Standard Wireless Receiver with PS40 (J1 / 554 to 590 MHz) The Shure ULXS4 Standard receiver offers an exceptional value in both performance and price, for both working musicians and sound installers. The feature set of the versatile receiver offers a direct path to full, clear audio signals, unencumbered and unattached.
- "RF" Diversity Signal Indicators
- Transmitted (TX) Audio Indicators
- Receiving Antenna Indicator
- Transmitter Battery Life Indicator
- PS40, in-line power supply with locking DC connector.
- MODE Button for Menu Display
- SET Button for Saving Settings
- XLR and 1/4" outputs with level control
- Space-saving 1/2 rack design
UPC: 042406080934 - Shure ULX1 UHF Bodypack Transmitter (Channel Group / J1) The Shure ULX1 is a low-profile, highly durable bodypack UHF wireless transmitter that has all the characteristics to meet the demands of high performance. For use with headworn, lavalier and instrument microphones, as well as guitars and basses. Attaches to belt, waistband or guitar strap with clip for hands-free mobility.
- Power/Battery LED - Green When ON, Red When Battery Low
- Three-Segment Battery Power Icon
- PEAK Icon - Appears When Audio Signal Overloads
- MODE Button for Menu Display
- SET Button for Saving Settings
- Adjustable Audio Gain Control (25 dB Range)
- Input Attenuation Switch - Select 0 dB for Voice/Low Output; 20 dB for High Output
UPC: 042406081894 - Shure WL93 Professional Micro-Lavalier Omni Mic (Black) The Shure model WL93 Microphones are economical omnidirectional, subminiature, lavalier, condenser microphones designed for general speech applications where a visually unobtrusive microphone is desirable. All WL93 models are supplied with a mounting block with attached tie bar, a sew-on mounting bracket, and an acoustic windscreen to minimize wind noise in outdoor applications. All WL93 models include a cable terminated with a 4-pin mini connector which connects directly to a Shure wireless body-pack transmitter.
- Subminiature lavalier design; ideal size for theater, television broadcasting, video, film, and sound reinforcement
- Uniform omnidirectional polar pattern
- Full, clear sound comparable to larger microphones
- Smooth extended frequency response with presence rise specially tailored for chest-worn microphone operation
- Controlled low-frequency rolloff reduces low-frequency clothing and room noise
- Low distortion, wide dynamic range
- Small, inconspicuous mounting hardware
UPC: 042406055338 In the Box - ULXS4 Standard Wireless Receiver with PS40 (J1 / 554 to 590 MHz) yyyvaqdcyyqda
- PS40 Power Supply
- Limited 1-Year Warranty
- ULX1 UHF Bodypack Transmitter (Channel Group / J1)
- WL93 Omnidirectional Lavalier Condenser Microphone for Wireless Systems, with 4' Cable, Black yyyvaqdcyyqda
Table of Contents
|
Upload User Manual
Have you got an user manual for the Shure ULX Single Lavalier Mic Multi-Frequency UHF Wireless Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - Shure ULXS4 Standard Wireless Receiver with PS40 (J1 / 554 to 590 MHz)
| Type of Receiver | ULXS4 Rack/Table-Top Mount UHF Standard Diversity Receiver | | RF Carrier Frequency Range | J1 / 554 to 590 MHz | | Frequency Response | 25 Hz - 15 kHz, (±2 dB) | | Signal-to-Noise Ratio | Greater Than 90 dB | | Approx. Working Range | 300' (100 m) NOTE: Actual working range depends on RF signal absorption, reflection, and interference | | Type of Outputs | Balanced XLR - 22 Ohms, 1 = Ground, 2 = Hot, 3 = Cold
Unbalanced 1/4" Phone Jack - 3k Ohms, Tip = Hot, Ring/Sleeve = Gnd
(Both Outputs Feature: Voltage, Current and Phantom Power Protection) | | Headphone Monitoring | No | | Power Requirements | 14 - 18 VDC (negative ground), 550 mA
External Power Supply - PS40, Included, Now with Locking DC Connector! | | Battery Type/Approx. Life | Not Applicable, Unit Does Not Operate on Batteries | | # Of Channels | Over 1400 User Selectable Frequencies | | Display | Yes, Power On Indicator, Diversity Signal Indicators and Audio Peak Indicator, Channel, Group, Transmitter Low Battery Warning. | | Mounting Options | Rack/Table-Top Mount 1/2 Rack Space | | Antenna Type | Remotable 1/2 Wave, Rear Mounted | | Dimensions | 1.72 x 8.56 x 6.52" (43 x 214 x 163 mm) HxWxD | | Weight | 2.31 lb (1049 g) | | | | Box Dimensions (LxWxH) | 20.5 x 18.3 x 3.7" | - Shure ULX1 UHF Bodypack Transmitter (Channel Group / J1)
| Type of Transmitter | ULX1 Bodypack UHF Transmitter | | # Of Channels | Over 1400 User Selectable Frequencies (Channel Group / J1) | | Type of Input Connector | TAF4 4-Pin Mini Connector | | Type of Microphone | Not Applicable, Microphone Not Included | | Polar Pattern | Not Applicable, Microphone Not Included | | Interchangeable Mic Heads | Yes, Use any of the Shure Lavalier, Headset, Instrument Microphones, or Guitar/Bass/XLR Adapter Cables that terminate to a Mini 4-pin TA4F Connector | | Battery Type/Approx. Life | Non-Rechargeable Type
9 V Lithium Battery / 21 Hours (Recommended)
9 V Alkaline Battery / 8 - 9 Hours (Recommended)
9 V Carbon-Zinc Battery / 5 Hours (NOT Recommended)
Rechargeable Type
9 V Ni-Cad Battery / 2 Hours (NOT Recommended)
9 V Ni-MH Battery / 2.5 Hours (NOT Recommended) | | Mute Switch | Yes | | Level Control | Yes, 25 dB Gain Adjustment Range | | Antenna Type | Wire Type | | Display | Power On/Off Indicator, 3-Segment Low Battery Indicator, Channel and Group, Peak Icon (Input Overload Warning) | | Gain Adjustment Range | 25 dB | | Attenuation Switch | 0, -20 dB | | Input Impedance | 1 MΩ | | RF Output Power | 30 mW maximum | | Dimensions | 3.86 x 2.68 x 1.10" (96.5 x 67.0 x 26.7 mm) HxWxD | | Weight | 2.8 oz (79 g) without Battery | | | | Box Dimensions (LxWxH) | 11.0 x 5.3 x 3.2" | - Shure WL93 Professional Micro-Lavalier Omni Mic (Black)
| Transducer | Electret Condenser | | Polar Pattern | Omnidirectional | | Frequency Response | 80 Hz - 20 kHz | | Dynamic Range (Typical) | 98dB @ Max. SPL, A-Weighted | | Signal-to-Noise Ratio | 72dB | | Maximum Input Sound Level | 120dB @ 1 kHz,(1% THD) | | Power Requirements | 2 to 10v; 5v Nominal (Pin 2 to Pins 3 and 4) (Supplied by Shure Wireless Body Transmitter Pack) | | Output Impedance | 3000 Ω | | Output Connectors | TA4F, for Use with the Shure Wireless Transmitters | | Case | Zippered Carrying Pouch | | Pad | None | | Low Frequency Roll-Off | None | | Applications | Radio, Television and Broadcast, Wireless Videography. | | Dimensions | Approximately: .023 x 0.37" (5.84 x 9.40mm)DiameterxL | | Weight | Approximately: 0.57 oz. (16 g) | | | | Box Dimensions (LxWxH) | 6.7 x 4.3 x 3.4" |
