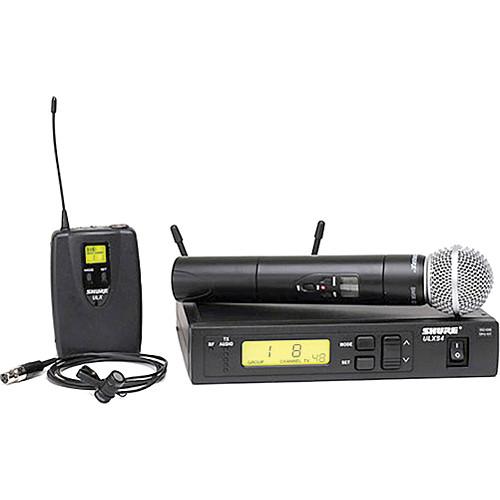

Product description The Shure ULX Series wireless microphone systems provide professional wireless microphone solutions for broadcast, performances, conferences, houses of worship, schools, and businesses. This combo-system includes the ULXS4 diversity receiver, ULX1 body-pack transmitter, WL185 Lavalier Microphone and ULX2 handheld transmitter with a Shure SM58 cardioid head. The ULXS4 receiver operates on UHF frequencies, offering over 1400 user selectable frequencies to choose from. The dual antenna design represents diversity technology, which provides optimum resistance against RF interference and drop-out. Dual internal receivers are set to the same frequency and are constantly vying for the strongest reception. The receiver features a balanced XLR output that is switchable between mic and line level signal as well as an unbalanced 1/4" Phone output. A multifunction LCD provides group and channel information, transmitter battery life, and more. Two 5-segment LED's provide audio and RF metering. The ULX1 body-pack transmitter is light weight and portable featuring a belt-clip for use with camera and guitar straps, belts, waistbands etc. The transmitter also features over 1400 user selectable UHF frequencies and a comprehensive LCD displays group and channel information and more. An input attenuation switch allows 0dB and 20dB output. Adjustable audio gain control is provided and the transmitter boasts 8-9 hour battery life on a single 9V battery.The ULX-2 handheld transmitter features the Shure SM58 cardioid capsule. The ULX-2 provides 1,400 user selectable frequencies. A comprehensive LCD display provides channel and frequency information, battery life and more. The cardioid polar pattern is effective against off-axis noise, causing feedback and unwanted ambient noise. The ULX-2 is powered with a standard 9V alkaline battery (included). The WL185 lavalier microphone features cardioid pick up pattern which minimizes off-axis noise and feedback caused by speakers or stage monitors. The WL185 features a 50-17,000Hz frequency response making it suitable for a wide variety of applications. - Microphone combo system two ULXS4 receiver, ULX1 bodypack transmitter, WL185 lavalier mic and ULX2 handheld transmitter with SM58 capsule
- Automatic Frequency Selection with group scan function
- Up to 1440 selectable frequencies
- 5-segment transmitted audio signal strength meter
- 3-segment transmitter battery fuel gauge
- Advanced multi-function LCD displays group and channel
- Detachable 1/4-wave antenna
UPC: 042406082150 In the Box Shure ULX Standard Series - Wireless Combo Microphone System ULXS4 Receiver ULX1 Bodypack Transmitter with WL185 Lavalier ULX2 Handheld Transmitter with SM58 Capsule Microphone Stand Adapter (WA371) Grip/Switch Cover (WA555) Zippered Transmitter Carry Bag, for ULX2/58 (26A14) Zippered Transmitter Carry Bag, for ULX-1 (26A13) Small Adjustment Screwdriver (80A498) (2) PS40 Power Supplies 1 Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Shure ULX Standard Series - Wireless Combo Microphone System in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersShure ULXS124/85-J1 Specs | | | Type of System | Rack/Table Top Mountable UHF Diversity Wireless Handheld System | | RF Carrier Frequency Range | 554.000 to 865.000 MHz | | Approx. Working Range | 300 Feet (100m) NOTE: Actual working range depends on RF signal absorption, reflection, and interference | | Overall Frequency Response | 25Hz - 15kHz, (±2dB) | | Signal-to-Noise Ratio | Greater Than 90dB | | # Of Channels | Over 1400 User Selectable Frequencies (Frequency J1 / 554 - 590 MHz) | | # Of Simultaneous Systems | Up to 20 | | | | Type of Receiver | ULXS4 Rack/Table-Top Mount Standard UHF Receiver | | Type of Outputs | Balanced XLR - 22 Ohms, 1 = Ground, 2 = Hot, 3 = Cold
Unbalanced 1/4" Phone Jack - 3k Ohms, Tip = Hot, Ring/Sleeve = Gnd
(Both Outputs Feature: Voltage, Current and Phantom Power Protection) | | Headphone Monitoring | No | | Power Requirements | 14 - 18VDC (negative ground), 550mA
External Power Supply - PS40, Included, Now with Locking DC Connector! | | Battery Type/Approx. Life | Not Applicable, Unit Does Not Operate on Batteries | | Display | Yes, Power On Indicator, Diversity Signal Indicators and Audio Peak Indicator, Channel, Group, Transmitter Low Battery Warning. | | Mounting Options | Rack / Table Top Mount 1/2 Rack Space | | Antenna Type | Internal | | Dimensions | 1.72 x 8.56 x 6.62" (43 x 214 x 163mm) HxWxD | | Weight | 2.8 oz. (79 g) without Battery | | | | Type of Transmitter | Bodypack UHF Transmitter | | Type of Input Connector | TAF4 4-Pin Mini Connector | | Type of Microphone | WL-185 Condenser Lavalier | | Polar Pattern | Cardioid | | Interchangeable Mic Heads | Yes, Use any of the Shure Lavalier, Headset, Instrument Microphones, or Guitar/Bass/XLR Adapter Cables that terminate to a Mini 4-pin TA4F Connector. | | Battery Type/Approx. Life | Non-Rechargeable Type
9V Lithium Battery / 21 Hours (Recommended)
9V Alkaline Battery / 8 - 9 Hours (Recommended)
9V Carbon-Zinc Battery / 5 Hours (NOT Recommended)
Rechargeable Type
9V Ni-Cad Battery / 2 Hours (NOT Recommended)
9V Ni-MH Battery / 2.5 Hours (NOT Recommended) | | Mute Switch | Yes | | Level Control | Yes, 25dB Gain Adjustment Range | | Antenna Type | Remotable 1/2 Wave, Rear Mounted | | Display | Power On/Off Indicator, 3-Segment Low Battery Indicator, Channel and Group, Peak Icon (Input Overload Warning) | | Weight | 10.4 oz. (296 g) | | | | Type of Transmitter | Handheld UHF Transmitter | | Type of Input Connector | Microphone Element is Attached (Screwed On) to Transmitter | | Type of Microphone | SM58 Dynamic Microphone Head | | Polar Pattern | Cardioid | | Interchangeable Mic Heads | No | | Battery Type/Approx. Life | Non-Rechargeable Type
9V Lithium Battery / 21 Hours (Recommended)
9V Alkaline Battery / 8 - 9 Hours (Recommended)
9V Carbon-Zinc Battery / 5 Hours (NOT Recommended)
Rechargeable Type
9V Ni-Cad Battery / 2 Hours (NOT Recommended)
9V Ni-MH Battery / 2.5 Hours (NOT Recommended) | | Mute Switch | Yes | | Level Control | Yes, 25dB Gain Adjustment Range | | Antenna Type | Wire Type | | Display | Power On/Off Indicator, 3-Segment Low Battery Indicator, Channel and Group, Peak Icon (Input Overload Warning) | | Weight | 2 lbs., 5 oz. (1049 g) | | | | Package Weight | 5.5 lb | | Box Dimensions (LxWxH) | 18.346 x 14.646 x 3.78" |
