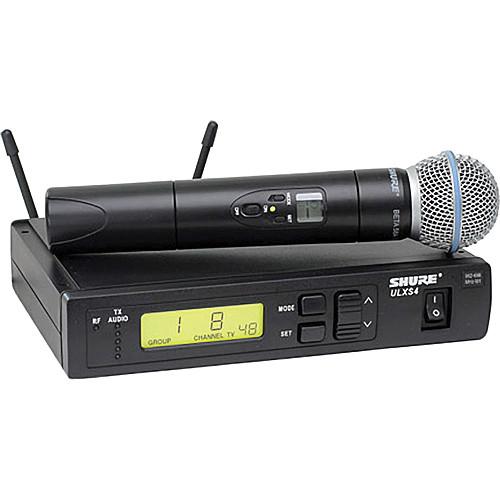

User Manual for Shure ULX Standard Series - Wireless Handheld Microphone System Click to enlarge the picture
Contents of the user manual for the Shure ULX Standard Series - Wireless
- Product category: Wireless Systems Shure
- Brand: Shure
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Shure Wireless Systems
|
User manual for the Shure ULX Standard Series - Wireless contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Shure product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Shure user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Shure product will considerably shorten its lifespan!
|
Product description The Shure ULX Series wireless microphone systems provide professional wireless microphone solutions for broadcast, performances, conferences, houses of worship, schools, and businesses. The system includes the ULXS4 diversity receiver and ULX2 handheld transmitter with Beta 58 microphone head.The ULXS4 receiver operates on UHF frequencies, offering over 1400 user selectable frequencies to choose from. The dual antenna design features diversity technology, which provides optimum resistance against RF interference and drop-out. The receiver also features a balanced XLR output that is switchable between mic and line level signal as well as an unbalanced 1/4" Phone output. A multifunction LCD provides group and channel information, transmitter battery life, and more. Two 5-segment LED's provide audio and RF metering.The ULX-2 handheld transmitter features the Shure Beta 58 supercardioid capsule. The Beta series microphones provide higher input gain, resulting in a lower noise floor. The ULX-2 provides 1,400 user selectable frequencies, a comprehensive LCD display provides channel and frequency information, battery life and more. The supercardioid polar pattern is effective against off-axis noise, causing feedback and unwanted ambient noise. The ULX-2 is powered with a standard 9V alkaline battery (included). - Beta 58 supercardioid capsule
- Automatic Frequency Selection with group scan function
- Up to 1440 selectable frequencies
- 5-segment transmitted audio signal strength meter
- 3-segment transmitter battery fuel gauge
- Advanced multi-function LCD displays group and channel
- Detachable 1/4-wave antenna
UPC: 042406147712 In the Box Shure ULX Standard Series - Wireless Handheld Microphone System Microphone Stand Adapter (WA371) Grip/Switch Cover (WA555) Zippered Transmitter Carry Bag (26A14) Small Adjustment Screwdriver (80A498) PS40 Power Supply Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Shure ULX Standard Series - Wireless Handheld Microphone System in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersShure ULXS24/BETA58-G3 Specs | | | Type of System | Rack/Table Top Mountable UHF Diversity Wireless Handheld System | | RF Carrier Frequency Range | 554.00 to 865.00MHz | | Approx. Working Range | 300' (100 m) NOTE: Actual working range depends on RF signal absorption, reflection, and interference | | Overall Frequency Response | 25Hz - 15kHz, (±2dB) | | Signal-to-Noise Ratio | Greater Than 90dB | | # Of Channels | Over 1400 User Selectable Frequencies (Frequency G3 / 470 - 505 MHz) | | # Of Simultaneous Systems | Up to 20 | | | | Type of Receiver | ULXS4 Rack/Table-Top Mount UHF Standard Diversity Receiver | | Type of Outputs | Balanced XLR - 22 Ohms, 1 = Ground, 2 = Hot, 3 = Cold
Unbalanced 1/4" Phone Jack - 3k Ohms, Tip = Hot, Ring/Sleeve = Gnd
(Both Outputs Feature: Voltage, Current and Phantom Power Protection) | | Headphone Monitoring | No | | Power Requirements | 14 - 18VDC (negative ground), 550 mA
External Power Supply - PS40, Included, Now with Locking DC Connector! | | Battery Type/Approx. Life | Not Applicable, Unit Does Not Operate on Batteries | | Display | Yes, Power On Indicator, Diversity Signal Indicators and Audio Peak Indicator, Channel, Group, Transmitter Low Battery Warning. | | Mounting Options | Rack / Table Top Mount 1/2 Rack Space | | Antenna Type | Internal | | Dimensions | 1.72 x 8.56 x 6.52" (43 x 214 x 163mm) HxWxD | | Weight | 10.4 oz (296g) | | | | Type of Transmitter | ULX2/BETA58 Handheld UHF Transmitter | | Type of Input Connector | Microphone Element is Attached (Screwed On) to Transmitter | | Type of Microphone | BETA58 Dynamic Microphone Head | | Polar Pattern | Supercardioid | | Interchangeable Mic Heads | No | | Battery Type/Approx. Life | Non-Rechargeable Type
9V Lithium Battery / 21 Hours (Recommended)
9V Alkaline Battery / 8 - 9 Hours (Recommended)
9V Carbon-Zinc Battery / 5 Hours (NOT Recommended)
Rechargeable Type
9V Ni-Cad Battery / 2 Hours (NOT Recommended)
9V Ni-MH Battery / 2.5 Hours (NOT Recommended) | | Mute Switch | Yes | | Level Control | Yes, 25dB Gain Adjustment Range | | Antenna Type | Removable 1/2 Wave, Rear Mounted | | Display | Power On/Off Indicator, 3-Segment Low Battery Indicator, Channel and Group, Peak Icon (Input Overload Warning) | | Dimensions (WxDxH) | 9.49 x 2.01" (241 x 51mm) LxD (diameter) | | Weight | 2 lbs 7 oz (1.11kg) | | | | Package Weight | 4.85 lb | | Box Dimensions (LxWxH) | 18.1 x 14.6 x 3.9" |
