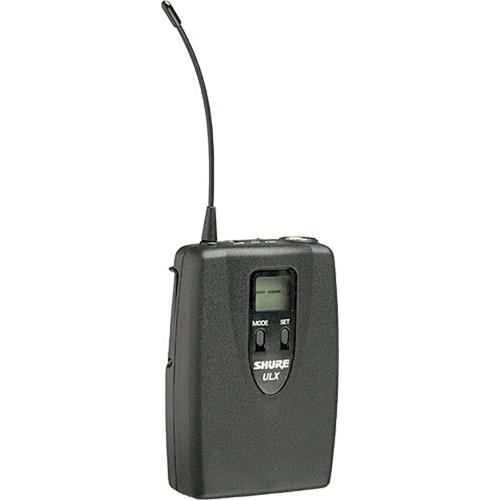

User Manual for Shure ULX1 UHF Bodypack Transmitter Click to enlarge the picture
Contents of the user manual for the Shure ULX1 UHF Bodypack Transmitter
- Product category: Wireless Transmitters Shure
- Brand: Shure
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Shure Wireless Transmitters
|
User manual for the Shure ULX1 UHF Bodypack Transmitter contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Shure product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Shure user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Shure product will considerably shorten its lifespan!
|
Product description The Shure ULX1 is a low-profile, highly durable bodypack UHF wireless transmitter that has all the characteristics to meet the demands of high performance. For use with headworn, lavalier and instrument microphones, as well as guitars and basses. Attaches to belt, waistband or guitar strap with clip for hands-free mobility. - Power/Battery LED - Green When ON, Red When Battery Low
- Three-Segment Battery Power Icon
- PEAK Icon - Appears When Audio Signal Overloads
- MODE Button for Menu Display
- SET Button for Saving Settings
- Adjustable Audio Gain Control (25 dB Range)
- Input Attenuation Switch - Select 0 dB for Voice/Low Output; 20 dB for High Output
UPC: 042406147507 In the Box Shure ULX1 UHF Bodypack Transmitter (Channel Group / G3) Small Adjustment Screwdriver (80A498) 9V Battery Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Shure ULX1 UHF Bodypack Transmitter in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersShure ULX-1 Specs | Type of Transmitter | ULX1 Bodypack UHF Transmitter | | # Of Channels | Over 1400 User Selectable Frequencies (Channel Group / G3) | | Type of Input Connector | TAF4 4-Pin Mini Connector | | Type of Microphone | Not Applicable, Microphone Not Included | | Polar Pattern | Not Applicable, Microphone Not Included | | Interchangeable Mic Heads | Yes, Use any of the Shure Lavalier, Headset, Instrument Microphones, or Guitar/Bass/XLR Adapter Cables that terminate to a Mini 4-pin TA4F Connector | | Battery Type/Approx. Life | Non-Rechargeable Type
9 V Lithium Battery / 21 Hours (Recommended)
9 V Alkaline Battery / 8 - 9 Hours (Recommended)
9 V Carbon-Zinc Battery / 5 Hours (NOT Recommended)
Rechargeable Type
9 V Ni-Cad Battery / 2 Hours (NOT Recommended)
9 V Ni-MH Battery / 2.5 Hours (NOT Recommended) | | Mute Switch | Yes | | Level Control | Yes, 25 dB Gain Adjustment Range | | Antenna Type | Wire Type | | Display | Power On/Off Indicator, 3-Segment Low Battery Indicator, Channel and Group, Peak Icon (Input Overload Warning) | | Gain Adjustment Range | 25 dB | | Attenuation Switch | 0, -20 dB | | Input Impedance | 1 MΩ | | RF Output Power | 30 mW maximum | | Dimensions | 3.86 x 2.68 x 1.10" (96.5 x 67.0 x 26.7 mm) HxWxD | | Weight | 2.8 oz (79 g) without Battery | | | | Package Weight | 0.85 lb | | Box Dimensions (LxWxH) | 11.5 x 5.45 x 3.25" |
