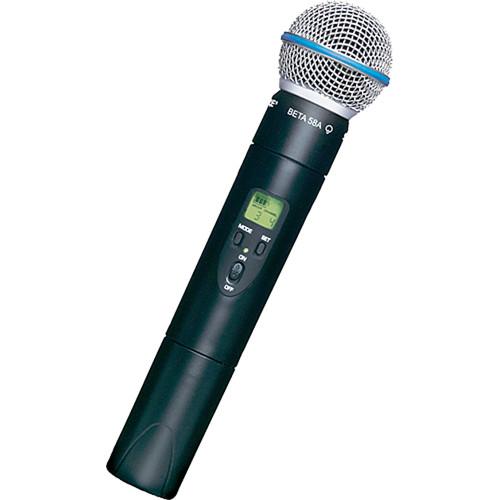

User Manual for Shure ULX2 BETA58 UHF Handheld Transmiter with BETA58 Microphone Head Click to enlarge the picture
Contents of the user manual for the Shure ULX2 BETA58 UHF Handheld Transmiter
- Product category: Wireless Transmitters Shure
- Brand: Shure
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Shure Wireless Transmitters
|
User manual for the Shure ULX2 BETA58 UHF Handheld Transmiter contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Shure product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Shure user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Shure product will considerably shorten its lifespan!
|
Product description A choice of legendary Shure vocal microphones is available for use with the ULX Standard or Professional series handheld wireless transmitters. Choose from the SM58® and Beta Series microphones to ride the clear channel transmission and flexibility of the ULX series handheld wireless transmitters.
In the tradition of the SM58®, the Beta 58A dynamic microphone has become a top choice among vocalists and touring sound professionals.
The Shure Beta 58A is a high-output supercardioid dynamic vocal microphone designed for professional sound reinforcement and project studio recording. It maintains a true supercardioid pattern throughout its frequency range. This insures high gain-before-feedback, maximum isolation from other sound sources, and minimum off-axis tone coloration. The Beta 58A has a shaped frequency response that is ideal for close-up vocals. The superb performance of this microphone is not affected by rough handling because of its rugged construction, proven shock mount system, and hardened steel mesh grille. Typical applications for the Beta 58A include lead vocals, backup vocals and speech. Note: For system compatibility, the component's frequency MUST match your existing system/component frequency. - Power/Battery LED-Green When ON, Red When Battery Low
- Three-segment Battery Power Icon
- PEAK Icon-Appears When Audio Signal Overloads
- MODE Button for Menu Display
- SET Button for Saving Settings
- Adjustable Audio Gain Control
- Input Attenuation Switch-Select 0dB for Voice/Low Output; 20dB for High Output
- Battery Cover Unscrews to Expose Battery and Gain Control
BETA 58 Microphone Element - Smooth, extended frequency response for outstanding sound for professional live vocal use
- Consistent supercardioid pattern provides the best gain-before-feedback among dynamic microphones
- Pneumatic shock mount reduces handling noise
- Frequency response: 50 to 16,000 Hz
UPC: 042406080545 In the Box Shure ULX2/BETA58 (J1) UHF Handheld Transmiter with BETA58 Microphone Head (Channel Group / J1) Microphone Stand Adapter (WA371) Grip/Switch Cover (WA555) Zippered Transmitter Carry Bag (26A14) Small Adjustment Screwdriver (80A498) 9v Battery 1 Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Shure ULX2 BETA58 UHF Handheld Transmiter with BETA58 Microphone Head in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersShure ULX2 Specs | Type of Transmitter | ULX2/BETA58A Handheld UHF Transmitter | | # Of Channels | Over 1400 User Selectable Frequencies (Channel Group / J1) | | Type of Input Connector | Microphone Element is Attached (Screwed On) to Transmitter | | Type of Microphone | BETA58A Dynamic Microphone Head | | Polar Pattern | Supercardioid | | Interchangeable Mic Heads | No | | Battery Type/Approx. Life | Non-Rechargeable Type
9v Lithium Battery / 21 Hours (Recommended)
9v Alkaline Battery / 8 - 9 Hours (Recommended)
9v Carbon-Zinc Battery / 5 Hours (NOT Recommended)
Rechargeable Type
9v Ni-Cad Battery / 2 Hours (NOT Recommended)
9v Ni-MH Battery / 2.5 Hours (NOT Recommended) | | Mute Switch | Yes | | Level Control | Yes, 25 dB Gain Adjustment Range | | Antenna Type | Internal | | Display | Power On/Off Indicator, 3-Segment Low Battery Indicator, Channel and Group, Peak Icon (Input Overload Warning) | | Dimensions | 9.49 x 2.01" (241 x 51mm) LxDiameter | | Weight | 10.4 oz. (296 g) | | | | Package Weight | 1.4 lb | | Box Dimensions (LxWxH) | 11.1 x 5.5 x 3.3" |
