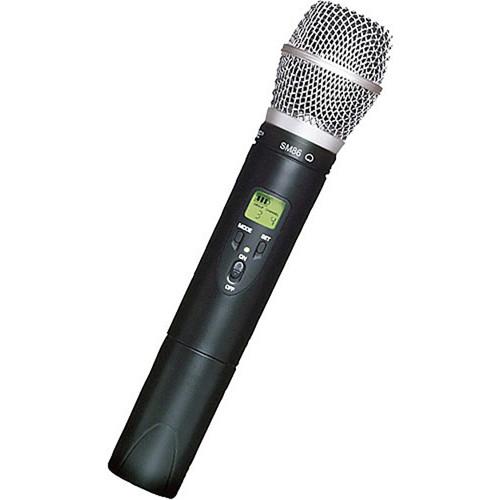

User Manual for Shure ULX2 UHF Handheld Transmitter with SM86 Microphone Head Click to enlarge the picture
Contents of the user manual for the Shure ULX2 UHF Handheld Transmitter with
- Product category: Wireless Transmitters Shure
- Brand: Shure
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Shure Wireless Transmitters
|
User manual for the Shure ULX2 UHF Handheld Transmitter with contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Shure product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Shure user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Shure product will considerably shorten its lifespan!
|
Product description The Shure ULX2 Wireless Handheld Transmitter is designed for use with Shure's ULX series wireless microphone receivers. The transmitter is available with various Shure microphone capsules; this version features the SM86 cardioid microphone head. The ULX2 will operate up to 9 hours on a single 9 volt alkaline battery. ULX2 Handheld Wireless Transmitters - LED-green when on, red when battery low
- Three-segment battery power icon
- PEAK icon-appears when audio signal overloads
- SET button for saving settings
- Adjustable audio gain control
- Input attenuation switch-select 0dB for voice/low output; 20dB for high output
- Battery cover unscrews to expose battery and gain control
SM86 Vocal Microphone - Condenser cartridge for studio quality sound
- Tailored frequency response for a clear reproduction of vocals
- Rugged construction withstands the rigors of touring sound
- Cardioid polar pattern minimizes unwanted background noise
- Excellent choice for stage monitors and personal monitors
- Built-in three-point shock mount minimizes handling noise
- Two-stage "pop" filter reduces wind and breath noise
UPC: 042406147538 In the Box Shure ULX2 (G3) UHF Handheld Transmitter with SM86 Microphone Head Microphone Stand Adapter (WA371) Grip/Switch Cover (WA555) Zippered Transmitter Carry Bag (26A14) Small Adjustment Screwdriver (80A498) 9V-Battery 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Shure ULX2 UHF Handheld Transmitter with SM86 Microphone Head in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersShure ULX2 Specs | # Of Channels | Over 1400 User Selectable Frequencies (Channel Group / G3) | | Type of Microphone | SM86 Dynamic Microphone Head | | Polar Pattern | Cardioid | | Interchangeable Mic Heads | Yes | | Battery Type/Approx. Life | Non-Rechargeable Type
9v Lithium Battery / 21 Hours (Recommended)
9v Alkaline Battery / 8 - 9 Hours (Recommended)
9v Carbon-Zinc Battery / 5 Hours (NOT Recommended)
Rechargeable Type
9v Ni-Cad Battery / 2 Hours (NOT Recommended)
9v Ni-MH Battery / 2.5 Hours (NOT Recommended) | | Mute Switch | Yes | | Level Control | 25dB Gain Adjustment Range | | Antenna Type | Internal | | Display | Power On/Off Indicator, 3-Segment Low Battery Indicator, Channel and Group, Peak Icon (Input Overload Warning) | | Length | 8.4" (213mm) | | Diameter | 1.9" (49mm) | | Weight | 8.8 oz (251g) | | | | Package Weight | 1.4 lb | | Box Dimensions (LxWxH) | 11.0 x 5.4 x 2.4" |
