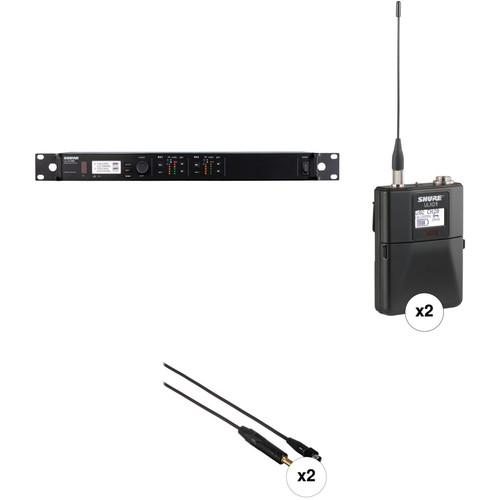

Shure ULXD Dual-Channel UHF Bodypack Instrument

User Manual for Shure ULXD Dual-Channel UHF Bodypack Instrument Kit

• Product category: Wireless Systems Shure
• Brand: Shure
• Description and content of package
• Technical information and basic settings
• Frequently asked questions – FAQ
• Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
• Authorized service for Shure Wireless Systems

Product description

• Shure ULXD4D Dual-Channel Wireless Receiver (G50: 470 to 534 MHz)
  • Product Tutorial
  The ULXD4D Dual-Channel Wireless Receiver from Shure is designed for compatibility with Shure's ULX-D wireless systems. It is tuned to Shure's G50 frequency band that operates from 470 to 534 MHz. It features 256-bit AES encryption that allows for reception of secure signals. The unit's digital predictive switching diversity is designed to assure you have consistent reception.

  The ULX4D is compatible with Dante audio over Ethernet networks. Its digital distribution can be controlled via the Wireless Workbench software.
  • • Two receivers in a 1RU metal chassis with internal power supply
    • Individual gain controls, LED meters, and XLR outputs for each channel
    • Up to 64 MHz tuning range (region dependent)
    • Digital predictive switching diversity
    • High Density mode optimizes ULX-D systems to simultaneously operate more channels in applications up to 30 meters
    • RF cascade ports allow distribution of RF signal to another unit
    • Optimized scanning automatically finds, prioritizes, and deploys the cleanest frequencies to transmitters over IR sync
    • Bodypack frequency diversity ensures uninterrupted audio for mission-critical applications
    • AES 256-bit encryption-enabled for secure transmission
    • Audio summing routes both audio channels to each XLR receiver output
    • Dante digital networked audio over Ethernet
    • Up to 60 dB independently adjustable gain for each channel
    • Ethernet networking for streamlined frequency coordination and deployment across multiple receivers
    • Wireless Workbench 6 (WWB6) software integration for advanced coordination, monitoring, and control
    • Interference detection and alerts provided on both the receiver and WWB6
    • AMX/Crestron control
    • AXT600 Axient Spectrum Manager compatible
    • Intuitive front-panel LCD menu and controls with lockout feature
    • Audio and RF LED meters with peak indicator
    • XLR connectors with switchable mic/line output level
    • Remoteable 1/2 wave antennas
  UPC: 042406214155
• 2 x Shure ULXD1 Wireless Bodypack Transmitter (G50: 470 to 534 MHz)
  • Product Tutorial
  The Shure ULXD1 Wireless Bodypack Transmitter is a lavalier, headworn microphone and instrument transmitter for hands-free wireless microphone and instrument operation (microphones and instrument cables sold separately). The ULXD1 is sold as part of the ULX-D Digital Wireless Microphone System, or may be purchased separately and used with an existing ULXD4 digital wireless receiver.The compact bodypack transmitter features a rugged metal housing, TA4F audio input, comprehensive LCD display, and much more. The ULXD1 features pristine, compandor-free digital transmission for uncompromising sound quality, range, and detail. Its 256-bit encryption keeps wireless transmissions secure, and its adjustable RF output power delivers maximum range wherever necessary. The ULXD1 operates on either alkaline AA batteries or Li-Ion rechargeable batteries for up to 12 hours.
  • AES 256-bit encryption for applications requiring secure data transmission
  • Proprietary Shure gain ranging optimizes the system's dynamic range for any input source, eliminating the need for transmitter gain adjustments
  • Shure SB900 Lithium-ion rechargeable battery provides up to 12 hours of battery life, precision metering with 5-segment battery fuel gauge, and zero memory effect
  • External charging contacts for docked charging (with the SBC200 dual-docking charger)
  • Backlit LCD with easy to navigate menu and controls
  • Rugged metal construction
  • Detachable 1/4 wave antenna
  • Frequency and power lockout
  UPC: 042406214131
• 2 x Shure WA305 1/4" Instrument Cable for GLX-D, ULX-D & QLX-D Transmitters (3')
  • Product Tutorial
  The 3' Shure WA305 is a straight 1/4" instrument cable designed for use with Shure GLX-D, ULX-D, and QLX-D wireless transmitters. Ideal for musicians in live stage applications, the WA305 features a gold-plated 1/4" jack for connection to a guitar or bass, and a locking TA4F connector to allow easy hookup to your compatible transmitter. The instrument jack's gold plating reduces corrosion and enhances conductivity while the TA4F's locking mechanism inhibits accidental disconnects.
  • Gold-plated Neutrik 1/4" TS connector
  • Locking TA4F connector
  • Reduces handling noise
  • Enhances conductivity
  UPC: 042406325943

• ULXD4D Dual-Channel Wireless Receiver (G50: 470 to 534 MHz) ffyvvzdtzxruybxwxdrtwdutway
• 2 x 1/2 Wave Antennas
• Hardware Kit
• 2 x BNC Cables
• 2 x BNC Bulkhead Adapters
• 3' Ethernet Cable
• Power Cable
• Limited 2-Year Warranty

• 2 x ULXD1 Wireless Bodypack Transmitter (G50: 470 to 534 MHz)

• 2 x WA305 1/4" Instrument Cable for GLX-D, ULX-D & QLX-D Transmitters (3') ffyvvzdtzxruybxwxdrtwdutway

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• Shure ULXD4D Dual-Channel Wireless Receiver (G50: 470 to 534 MHz)

  Spurious Rejection	>80 dB, Typical
  Connector	BNC
  Impedance	50 Ohms
  Bias Voltage(s)	12-13 VDC, 150 mA Maximum, per Antenna

  Gain Range	-18 to 42 dB in 1 dB Steps (Plus Mute Setting)
  Configuration	XLR: Balanced (1= Ground, 2= Audio +, 3= Audio -)
  Impedance	100 Ohms
  Full Scale Output	Line: 18 dBV Mic: -12 dBV
  Switch	Mic/Line: 30 dB Pad
  Phantom Power Protection	Yes

  Network Interface	Dual-Port Ethernet 10/100 Mb/s, 1 Gb/s
  Network Addressing Capability	DHCP or Manual IP
  Ethernet	Maximum Cable Length: 328' / 100 m
  Cascade Output	Connector Type: BNC Configuration: Unbalanced, Passive Impedance: 50 Ohms

  Power Requirements	100 to 240 VAC, 50-60 Hz, 0.26 A Maximum
  Dimensions (H x W x D)	1.73 x 18.97 x 10.79" / 44 x 482 x 274 mm
  Weight	7.4 lb / 3.36 kg

  Box Dimensions (LxWxH)	27.5 x 17.5 x 3.0"

• 2 x Shure ULXD1 Wireless Bodypack Transmitter (G50: 470 to 534 MHz)

  Connector	TA4F Connector Unbalanced 1 MOhm
  Impedance	50 Ohms
  Operating Range	300' / 100 m
  Gain Range	0 to 21 dB (in 3 dB Steps)
  Line Max Input Level	Pad Off: 8.5 dBV (7.5 V pp) Pad On: 20.5 dBV (30 V pp)
  EIN	Preamplifier Equivalent Input Noise (EIN), System Gain Setting = +20: 120 dBV, A-Weighted, Typical
  RF Output	SMA
  Antenna	1/4 Wave
  Bandwidth	Occupied Bandwidth: < 200 kHz
  Modulation	Shure Proprietary Digital
  Output Power	1 mW, 10 mW, 20 mW
  Frequency Response	20 Hz to 20 kHz (±1 dB), Flat Note: Dependent on Microphone Type
  Battery	Shure SB900 Rechargeable Li-Ion or AA Batteries Battery Runtime @ 10 mW: Shure SB900: > 12 Hours Alkaline: 11 Hours
  Housing	Cast Aluminum
  Dimensions (HxWxD)	3.4 x 2.6 x 0.9" / 86 x 66 x 23 mm
  Weight	5.0 oz / 142 g, without Batteries

  Box Dimensions (LxWxH)	12.6 x 4.8 x 3.3"

• 2 x Shure WA305 1/4" Instrument Cable for GLX-D, ULX-D & QLX-D Transmitters (3')

  Connector 1	Straight 1/4" TS
  Connector 2	Locking TA4F
  Cable Length	3' / 0.9 m

  Box Dimensions (LxWxH)	7.0 x 3.0 x 0.2"
