Product description

• Shure ULXD4 Digital Wireless Receiver (G50: 470 to 534 MHz)
  • Product Tutorial

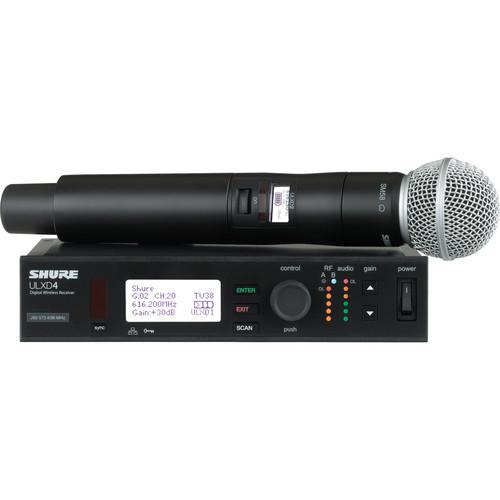

  The ULXD4 Digital Wireless Receiver from Shure is designed for compatibility with Shure's ULX-D wireless systems. It is tuned to Shure's G50 frequency band that operates from 470 to 534 MHz. It features 256-bit AES encryption that allows for reception of secure signals. The unit's digital predictive switching diversity is designed to assure you have consistent reception.
  • • Predictive switching diversity
    • High Density mode optimizes ULX-D systems to simultaneously operate significantly more channels in applications up to 30 meters
    • Intelligent scanning automatically finds and deploys the cleanest frequencies to transmitters over IR sync
    • Interference detection and alerts provided on both the receiver and Wireless Workbench 6
    • Front-panel gain adjustment buttons provide up to 60 dB additional gain
    • AES 256-bit encryption-enabled for applications where secure transmission is needed
    • Ethernet networking provides streamlined setup across multiple receivers, Wireless Workbench 6 integration, and AMX/Crestron control
    • Support for frequency coordination with the Axient Spectrum Manager
    • Metal chassis
    • Front-panel LCD menu and controls with lockout feature
    • LCD with adjustable contrast and brightness
    • Audio and RF LED meters with peak indicator
    • Remoteable ½ wave antennas
    • Furnished rack hardware
  UPC: 042406214148
• Shure ULXD2 Handheld Transmitter with SM58 Microphone Capsule (G50: 470 to 534 MHz)
  • Product Tutorial
  The ULXD2 Handheld Transmitter with SM58 Microphone Capsule from Shure is designed for compatibility with Shure's ULX-D wireless systems. It has an interchangeable SM58 capsule and is set to Shure's G50 frequency band that operates between 470 to 534 MHz.

  The ULXD2 has AES 256-bit encryption that keeps your signal secure. Featuring Shure's proprietary Gain Ranging, the ULXD2's dynamic range is optimized based on the input source and eliminates the need for transmitter gain adjustments. It has a lightweight, 12-ounce metal body with a backlit LCD menu with frequency and power lockout to avoid accidental setting changes. Powered by two AA batteries or the optional SB900 rechargeable battery pack, the ULXD2 has external charging contacts and is compatible with the SBC200 dual docking charger. UPC: 042406214179

• ULXD4 Digital Wireless Receiver (G50: 470 to 534 MHz) ffyvvzdtzxruybxwxdrtwdutway
• 2 x Remoteable 1/2 Wave Antennas
• Rack Hardware
• Power Supply
• Limited 2-Year Warranty

• ULXD2 Handheld Transmitter with SM58 Microphone Capsule (G50: 470 to 534 MHz) ffyvvzdtzxruybxwxdrtwdutway
