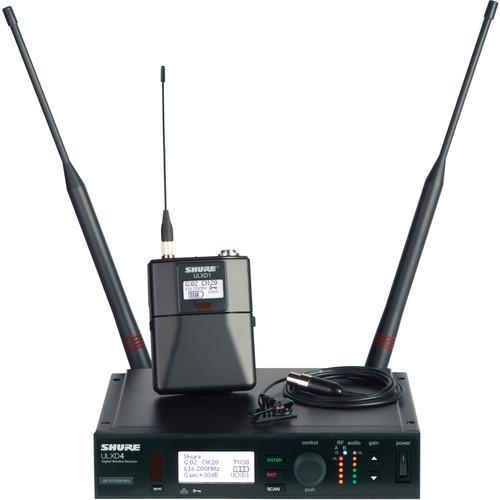

Shure ULXD Lavalier UHF Wireless Kit

User Manual for Shure ULXD Lavalier UHF Wireless Kit

• Product category: Wireless Systems Shure
• Brand: Shure
• Description and content of package
• Technical information and basic settings
• Frequently asked questions – FAQ
• Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
• Authorized service for Shure Wireless Systems

Product description

• Shure ULXD4 Digital Wireless Receiver (G50: 470 to 534 MHz)
  • Product Tutorial
  The ULXD4 Digital Wireless Receiver from Shure is designed for compatibility with Shure's ULX-D wireless systems. It is tuned to Shure's G50 frequency band that operates from 470 to 534 MHz. It features 256-bit AES encryption that allows for reception of secure signals. The unit's digital predictive switching diversity is designed to assure you have consistent reception.
  • • Predictive switching diversity
    • High Density mode optimizes ULX-D systems to simultaneously operate significantly more channels in applications up to 30 meters
    • Intelligent scanning automatically finds and deploys the cleanest frequencies to transmitters over IR sync
    • Interference detection and alerts provided on both the receiver and Wireless Workbench 6
    • Front-panel gain adjustment buttons provide up to 60 dB additional gain
    • AES 256-bit encryption-enabled for applications where secure transmission is needed
    • Ethernet networking provides streamlined setup across multiple receivers, Wireless Workbench 6 integration, and AMX/Crestron control
    • Support for frequency coordination with the Axient Spectrum Manager
    • Metal chassis
    • Front-panel LCD menu and controls with lockout feature
    • LCD with adjustable contrast and brightness
    • Audio and RF LED meters with peak indicator
    • Remoteable ½ wave antennas
    • Furnished rack hardware
  UPC: 042406214148
• Shure ULXD1 Wireless Bodypack Transmitter (G50: 470 to 534 MHz)
  • Product Tutorial
  The Shure ULXD1 Wireless Bodypack Transmitter is a lavalier, headworn microphone and instrument transmitter for hands-free wireless microphone and instrument operation (microphones and instrument cables sold separately). The ULXD1 is sold as part of the ULX-D Digital Wireless Microphone System, or may be purchased separately and used with an existing ULXD4 digital wireless receiver.The compact bodypack transmitter features a rugged metal housing, TA4F audio input, comprehensive LCD display, and much more. The ULXD1 features pristine, compandor-free digital transmission for uncompromising sound quality, range, and detail. Its 256-bit encryption keeps wireless transmissions secure, and its adjustable RF output power delivers maximum range wherever necessary. The ULXD1 operates on either alkaline AA batteries or Li-Ion rechargeable batteries for up to 12 hours.
  • AES 256-bit encryption for applications requiring secure data transmission
  • Proprietary Shure gain ranging optimizes the system's dynamic range for any input source, eliminating the need for transmitter gain adjustments
  • Shure SB900 Lithium-ion rechargeable battery provides up to 12 hours of battery life, precision metering with 5-segment battery fuel gauge, and zero memory effect
  • External charging contacts for docked charging (with the SBC200 dual-docking charger)
  • Backlit LCD with easy to navigate menu and controls
  • Rugged metal construction
  • Detachable 1/4 wave antenna
  • Frequency and power lockout
  UPC: 042406214131
• Shure MX150 Subminiature Lavalier Microphone (TQG Connection)
  • Product Tutorial
  The Shure MX150 Subminiature Lavalier Microphone is a subminiature, multi-positioned clip-on microphone well suited for broadcast operation, sermons, presentations, public address and much more. This version features a TQG connection for use with Shure wireless bodypack transmitters. Shure's CommShield technology makes the MX150 impervious to noise caused by cell phones, PDAs, WiFi and other RFI. The microphone ships with a snap-fit foam windscreen and multi-position tie clip with an integrated cable management system that minimizes noise without increasing cable strain and tension.
  • Omnidirectional polar pattern and wired TQG connection
  • CommShield Technology guards against interference from cellular RF devices and digital bodypack transmitters
  • Matte black, sleek design for inconspicuous placement
  • Multi-position tie clip allows for a variety of placement options and features an integrated cable management system for convenient cable dress with minimal handling noise
  • Kevlar-reinforced soft-flex cable design further reduces handling noise while providing superior flexibility for routing and placement
  • User-changeable equalization caps for response shaping (omnidirectional only)
  • Snap-fit, concise windscreen provides protection from plosives and wind noise with minimal visibility
  • Legendary Shure quality, ruggedness, and reliability
  UPC: 042406227940

• ULXD4 Digital Wireless Receiver (G50: 470 to 534 MHz) xxfzqzaxwcfrsbfdxwqxtdzsefacz
• 2 x Remoteable 1/2 Wave Antennas
• Rack Hardware
• Power Supply
• Limited 2-Year Warranty

• ULXD1 Wireless Bodypack Transmitter (G50: 470 to 534 MHz)

• MX150 Subminiature Lavalier Microphone (TQG Connection) xxfzqzaxwcfrsbfdxwqxtdzsefacz

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• Shure ULXD4 Digital Wireless Receiver (G50: 470 to 534 MHz)

  Spurious Rejection	>80 dB, Typical
  Connector	BNC
  Impedance	50 Ohms
  Bias Voltage(s)	12 to 13 VDC, 170 mA Maximum, per Antenna

  Gain Adjustment Range	-18 to 42 dB in 1 dB Steps (Plus Mute Setting)
  Configuration	1/4" / 6.3 mm: Impedance Balanced (Tip= Audio, Ring= No Audio, Sleeve= Ground) XLR: Balanced (1= Ground, 2= Audio +, 3= Audio −)
  Impedance	1/4" / 6.3 mm: 100 Ohms (50 Ohms Unbalanced) XLR: 100 Ohms
  Full Scale Output	1/4" / 6.3 mm: 12 dBV XLR: LINE Setting= 18 dBV, MIC Setting= -12 dBV
  Mic/Line Switch	30 dB Pad
  Phantom Power Protection	1/4" / 6.3 mm: Yes XLR: Yes

  PoE	No, Protected
  Network Interface	Single-Port Ethernet 10/100 Mb/s
  Network Addressing Capability	DHCP or Manual IP Address
  Maximum Cable Length	328' / 100 m

  Housing	Steel
  Power Requirements	15 VDC @ 0.6 A, Supplied by External Power Supply (Tip Positive)
  Dimensions (HxWxD)	7.75 x 6.75 x 1.65" / 197 x 171 x 42 mm
  Weight	2 lb / 913 g Without Antennas

  Box Dimensions (LxWxH)	18.347 x 14.567 x 3.622"

• Shure ULXD1 Wireless Bodypack Transmitter (G50: 470 to 534 MHz)

  Connector	TA4F Connector Unbalanced 1 MOhm
  Impedance	50 Ohms
  Operating Range	300' / 100 m
  Gain Range	0 to 21 dB (in 3 dB Steps)
  Line Max Input Level	Pad Off: 8.5 dBV (7.5 V pp) Pad On: 20.5 dBV (30 V pp)
  EIN	Preamplifier Equivalent Input Noise (EIN), System Gain Setting = +20: 120 dBV, A-Weighted, Typical
  RF Output	SMA
  Antenna	1/4 Wave
  Bandwidth	Occupied Bandwidth: < 200 kHz
  Modulation	Shure Proprietary Digital
  Output Power	1 mW, 10 mW, 20 mW
  Frequency Response	20 Hz to 20 kHz (±1 dB), Flat Note: Dependent on Microphone Type
  Battery	Shure SB900 Rechargeable Li-Ion or AA Batteries Battery Runtime @ 10 mW: Shure SB900: > 12 Hours Alkaline: 11 Hours
  Housing	Cast Aluminum
  Dimensions (HxWxD)	3.4 x 2.6 x 0.9" / 86 x 66 x 23 mm
  Weight	5.0 oz / 142 g, without Batteries

  Box Dimensions (LxWxH)	12.6 x 4.8 x 3.3"

• Shure MX150 Subminiature Lavalier Microphone (TQG Connection)

  Transducer	Electret condenser
  Polar Pattern	Omnidirectional
  Frequency Response	20 to 20,000Hz
  Sensitivity	-46.5 dBV/Pa (4.5 mV)
  Max Input Sound Level (SPL)	2500 Ω load: 143.0 dB SPL; 1000 Ω load: 143.0 dB SPL
  Signal-to-Noise Ratio	60.0 dB
  Dynamic Range	@1kHz 2500 Ω load: 109.0 dB SPL; 1000 Ω load: 109.0 dB SPL
  Self Noise	34.0 dB (equivalent SPL, A-weighted, typical)
  Operating Temperature	Operating: 0 to 135°F (-18 to 57°C) Storage: -20 to 165°F (-29 to 74°C)
  Polarity	TQG: Positive pressure on diaphragm produces positive voltage on pin 3 with respect to pin 1
  Power Requirements	11-52VDC phantom power (IEC-61938), < 2.2mA
  Dimensions (LxDiameter)	Length: 5' (1.52m) Diameter: 0.23" (5.8mm)
  Weight	0.7 oz (21 g)

  Box Dimensions (LxWxH)	6.7 x 4.4 x 3.3"
