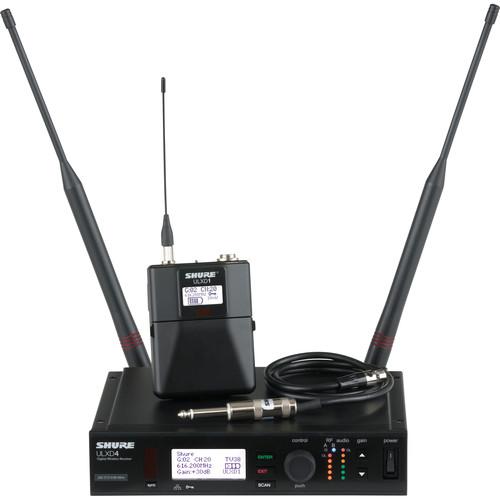

User Manual for Shure ULXD UHF Bodypack Instrument Kit Click to enlarge the picture
Contents of the user manual for the Shure ULXD UHF Bodypack Instrument Kit
- Product category: Wireless Systems Shure
- Brand: Shure
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Shure Wireless Systems
|
User manual for the Shure ULXD UHF Bodypack Instrument Kit contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Shure product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Shure user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Shure product will considerably shorten its lifespan!
|
Product description Giving guitarists and bassists the opportunity to roam the stage wirelessly, the Shure ULXD UHF Bodypack Instrument Kit from includes a ULXD4 wireless receiver, a ULXD1 bodypack transmitter, and a WA305 instrument cable for connecting a guitar, bass, or any instrument with a 1/4" output to the included transmitter. It is tuned to Shure's G50 frequency band between 470 and 534 MHz. The system features AES 256-bit encryption for secure transmission and reception. - Shure ULXD4 Digital Wireless Receiver (G50: 470 to 534 MHz) The ULXD4 Digital Wireless Receiver from Shure is designed for compatibility with Shure's ULX-D wireless systems. It is tuned to Shure's G50 frequency band that operates from 470 to 534 MHz. It features 256-bit AES encryption that allows for reception of secure signals. The unit's digital predictive switching diversity is designed to assure you have consistent reception.
-
- Predictive switching diversity
- High Density mode optimizes ULX-D systems to simultaneously operate significantly more channels in applications up to 30 meters
- Intelligent scanning automatically finds and deploys the cleanest frequencies to transmitters over IR sync
- Interference detection and alerts provided on both the receiver and Wireless Workbench 6
- Front-panel gain adjustment buttons provide up to 60 dB additional gain
- AES 256-bit encryption-enabled for applications where secure transmission is needed
- Ethernet networking provides streamlined setup across multiple receivers, Wireless Workbench 6 integration, and AMX/Crestron control
- Support for frequency coordination with the Axient Spectrum Manager
- Metal chassis
- Front-panel LCD menu and controls with lockout feature
- LCD with adjustable contrast and brightness
- Audio and RF LED meters with peak indicator
- Remoteable ½ wave antennas
- Furnished rack hardware
UPC: 042406214148 - Shure ULXD1 Wireless Bodypack Transmitter (G50: 470 to 534 MHz) The Shure ULXD1 Wireless Bodypack Transmitter is a lavalier, headworn microphone and instrument transmitter for hands-free wireless microphone and instrument operation (microphones and instrument cables sold separately). The ULXD1 is sold as part of the ULX-D Digital Wireless Microphone System, or may be purchased separately and used with an existing ULXD4 digital wireless receiver.The compact bodypack transmitter features a rugged metal housing, TA4F audio input, comprehensive LCD display, and much more. The ULXD1 features pristine, compandor-free digital transmission for uncompromising sound quality, range, and detail. Its 256-bit encryption keeps wireless transmissions secure, and its adjustable RF output power delivers maximum range wherever necessary. The ULXD1 operates on either alkaline AA batteries or Li-Ion rechargeable batteries for up to 12 hours.
- AES 256-bit encryption for applications requiring secure data transmission
- Proprietary Shure gain ranging optimizes the system's dynamic range for any input source, eliminating the need for transmitter gain adjustments
- Shure SB900 Lithium-ion rechargeable battery provides up to 12 hours of battery life, precision metering with 5-segment battery fuel gauge, and zero memory effect
- External charging contacts for docked charging (with the SBC200 dual-docking charger)
- Backlit LCD with easy to navigate menu and controls
- Rugged metal construction
- Detachable 1/4 wave antenna
- Frequency and power lockout
UPC: 042406214131 - Shure WA302 Intrument & Guitar Cable Instrument Cable, 2.5 foot (1.2 m), 4 Pin Mini Connector (TA4F) to 1/4-inch Connector, used with ULX, T1, SC1, LX1, U1, UC1 and UT1 Bodypack Transmitters UPC: 042406053174
In the Box - ULXD4 Digital Wireless Receiver (G50: 470 to 534 MHz)
- 2 x Remoteable 1/2 Wave Antennas
- Rack Hardware
- Power Supply
- Limited 2-Year Warranty
- ULXD1 Wireless Bodypack Transmitter (G50: 470 to 534 MHz)
- WA302 Intrument & Guitar Cable with 1/4" Phone and 4-pin Mini Connector for T1, UT1, SC1, LX1, ULX1, UC1 and U1 Body Pack Transmitters (2.5') (76.2cm)
Table of Contents
|
Upload User Manual
Have you got an user manual for the Shure ULXD UHF Bodypack Instrument Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - Shure ULXD4 Digital Wireless Receiver (G50: 470 to 534 MHz)
| | | Spurious Rejection | >80 dB, Typical | | Connector | BNC | | Impedance | 50 Ohms | | Bias Voltage(s) | 12 to 13 VDC, 170 mA Maximum, per Antenna | | | | Gain Adjustment Range | -18 to 42 dB in 1 dB Steps (Plus Mute Setting) | | Configuration | 1/4" / 6.3 mm: Impedance Balanced (Tip= Audio, Ring= No Audio, Sleeve= Ground)
XLR: Balanced (1= Ground, 2= Audio +, 3= Audio −) | | Impedance | 1/4" / 6.3 mm: 100 Ohms (50 Ohms Unbalanced)
XLR: 100 Ohms | | Full Scale Output | 1/4" / 6.3 mm: 12 dBV
XLR: LINE Setting= 18 dBV, MIC Setting= -12 dBV | | Mic/Line Switch | 30 dB Pad | | Phantom Power Protection | 1/4" / 6.3 mm: Yes
XLR: Yes | | | | PoE | No, Protected | | Network Interface | Single-Port Ethernet 10/100 Mb/s | | Network Addressing Capability | DHCP or Manual IP Address | | Maximum Cable Length | 328' / 100 m | | | | Housing | Steel | | Power Requirements | 15 VDC @ 0.6 A, Supplied by External Power Supply (Tip Positive) | | Dimensions (HxWxD) | 7.75 x 6.75 x 1.65" / 197 x 171 x 42 mm | | Weight | 2 lb / 913 g Without Antennas | | | | Box Dimensions (LxWxH) | 18.347 x 14.567 x 3.622" | - Shure ULXD1 Wireless Bodypack Transmitter (G50: 470 to 534 MHz)
| Connector | TA4F Connector
Unbalanced
1 MOhm | | Impedance | 50 Ohms | | Operating Range | 300' / 100 m | | Gain Range | 0 to 21 dB (in 3 dB Steps) | | Line Max Input Level | Pad Off: 8.5 dBV (7.5 V pp)
Pad On: 20.5 dBV (30 V pp) | | EIN | Preamplifier Equivalent Input Noise (EIN), System Gain Setting = +20: 120 dBV, A-Weighted, Typical | | RF Output | SMA | | Antenna | 1/4 Wave | | Bandwidth | Occupied Bandwidth: < 200 kHz | | Modulation | Shure Proprietary Digital | | Output Power | 1 mW, 10 mW, 20 mW | | Frequency Response | 20 Hz to 20 kHz (±1 dB), Flat
Note: Dependent on Microphone Type | | Battery | Shure SB900 Rechargeable Li-Ion or AA Batteries
Battery Runtime @ 10 mW: Shure SB900: > 12 Hours
Alkaline: 11 Hours | | Housing | Cast Aluminum | | Dimensions (HxWxD) | 3.4 x 2.6 x 0.9" / 86 x 66 x 23 mm | | Weight | 5.0 oz / 142 g, without Batteries | | | | Box Dimensions (LxWxH) | 12.6 x 4.8 x 3.3" | - Shure WA302 Intrument & Guitar Cable
| | | Box Dimensions (LxWxH) | 4.8 x 4.0 x 1.3" |
