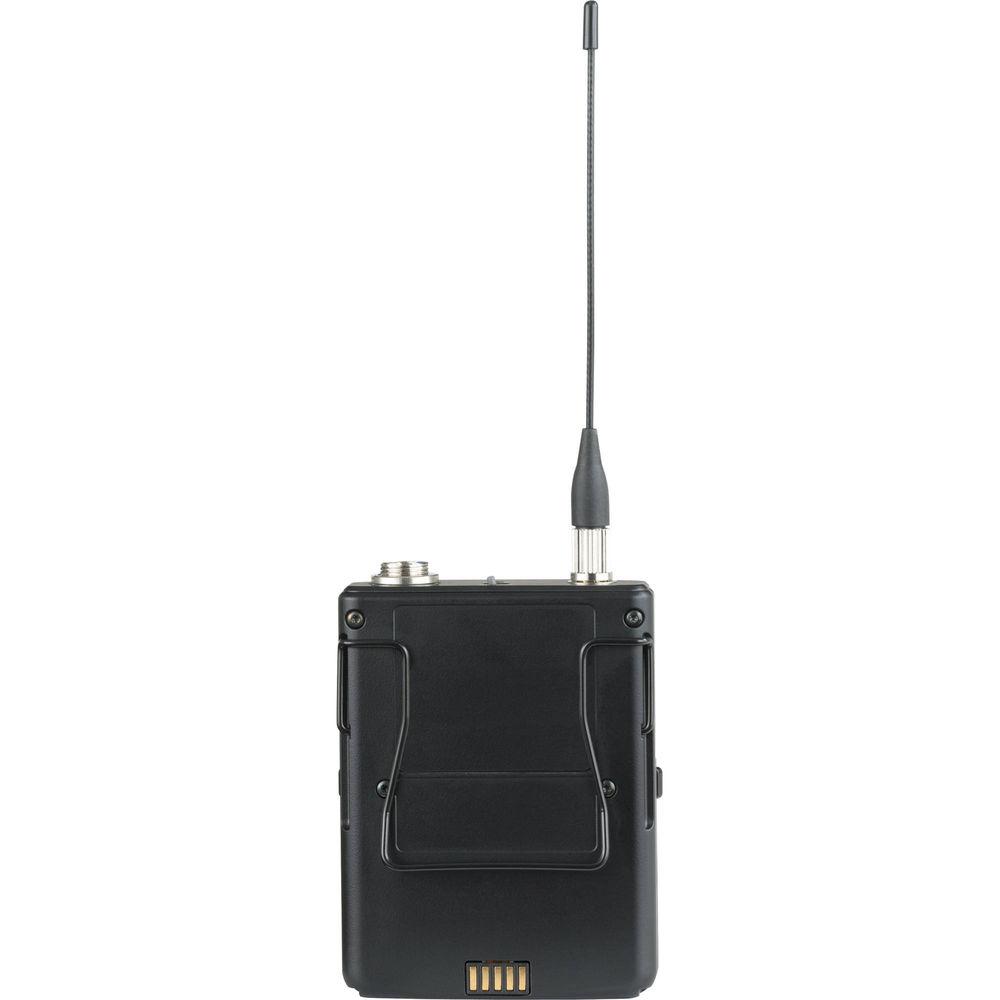

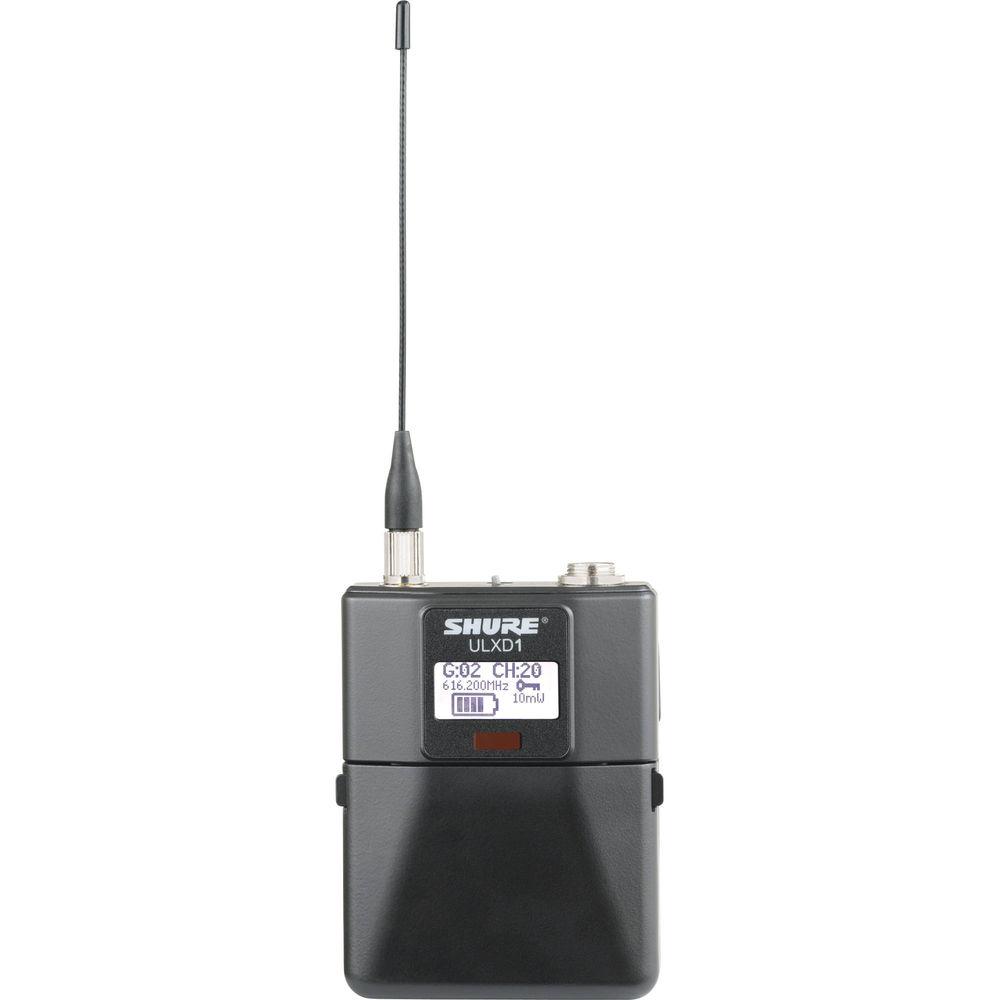

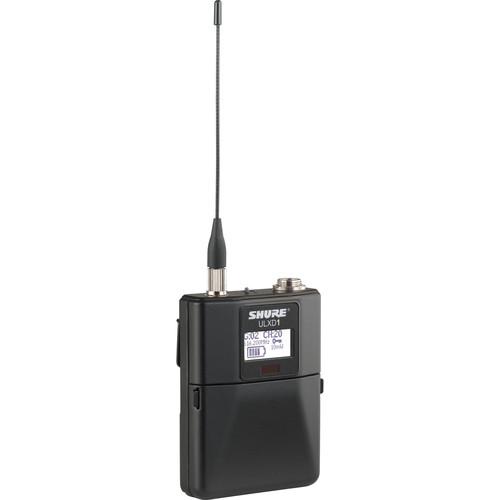

User Manual for Shure ULXD1 Wireless Bodypack Transmitter Click to enlarge the picture
Contents of the user manual for the Shure ULXD1 Wireless Bodypack Transmitter
- Product category: Wireless Transmitters Shure
- Brand: Shure
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Shure Wireless Transmitters
 |
User manual for the Shure ULXD1 Wireless Bodypack Transmitter contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Shure product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Shure user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Shure product will considerably shorten its lifespan!
|
Product description The Shure ULXD1 Wireless Bodypack Transmitter is a lavalier, headworn microphone and instrument transmitter for hands-free wireless microphone and instrument operation (microphones and instrument cables sold separately). The ULXD1 is sold as part of the ULX-D Digital Wireless Microphone System, or may be purchased separately and used with an existing ULXD4 digital wireless receiver.The compact bodypack transmitter features a rugged metal housing, TA4F audio input, comprehensive LCD display, and much more. The ULXD1 features pristine, compandor-free digital transmission for uncompromising sound quality, range, and detail. Its 256-bit encryption keeps wireless transmissions secure, and its adjustable RF output power delivers maximum range wherever necessary. The ULXD1 operates on either alkaline AA batteries or Li-Ion rechargeable batteries for up to 12 hours. - AES 256-bit encryption for applications requiring secure data transmission
- Proprietary Shure gain ranging optimizes the system's dynamic range for any input source, eliminating the need for transmitter gain adjustments
- Shure SB900 Lithium-ion rechargeable battery provides up to 12 hours of battery life, precision metering with 5-segment battery fuel gauge, and zero memory effect
- External charging contacts for docked charging (with the SBC200 dual-docking charger)
- Backlit LCD with easy to navigate menu and controls
- Rugged metal construction
- Detachable 1/4 wave antenna
- Frequency and power lockout
In the Box Shure ULXD1 Wireless Bodypack Transmitter (J50A: 572 to 608 + 614 to 616 MHz) Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Shure ULXD1 Wireless Bodypack Transmitter in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersShure ULXD1 Specs | Connector | TA4F Connector
Unbalanced
1 MOhm | | Impedance | 50 Ohms | | Operating Range | 300' / 100 m | | Gain Range | 0 to 21 dB (in 3 dB Steps) | | Line Max Input Level | Pad Off: 8.5 dBV (7.5 V pp)
Pad On: 20.5 dBV (30 V pp) | | EIN | Preamplifier Equivalent Input Noise (EIN), System Gain Setting = +20: 120 dBV, A-Weighted, Typical | | RF Output | SMA | | Antenna | 1/4 Wave | | Bandwidth | Occupied Bandwidth: < 200 kHz | | Modulation | Shure Proprietary Digital | | Output Power | 1 mW, 10 mW, 20 mW | | Frequency Response | 20 Hz to 20 kHz (±1 dB), Flat
Note: Dependent on Microphone Type | | Battery | Shure SB900 Rechargeable Li-Ion or AA Batteries
Battery Runtime @ 10 mW: Shure SB900: > 12 Hours
Alkaline: 11 Hours | | Housing | Cast Aluminum | | Dimensions (HxWxD) | 3.4 x 2.6 x 0.9" / 86 x 66 x 23 mm | | Weight | 5.0 oz / 142 g, without Batteries |
