User Manual for Shure ULXD1 Wireless Bodypack Transmitter - H50 534 to 598 MHz Click to enlarge the picture
Contents of the user manual for the Shure ULXD1 Wireless Bodypack Transmitter -
- Product category: Wireless Transmitters Shure
- Brand: Shure
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Shure Wireless Transmitters
 |
User manual for the Shure ULXD1 Wireless Bodypack Transmitter - contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Shure product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Shure user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Shure product will considerably shorten its lifespan!
|

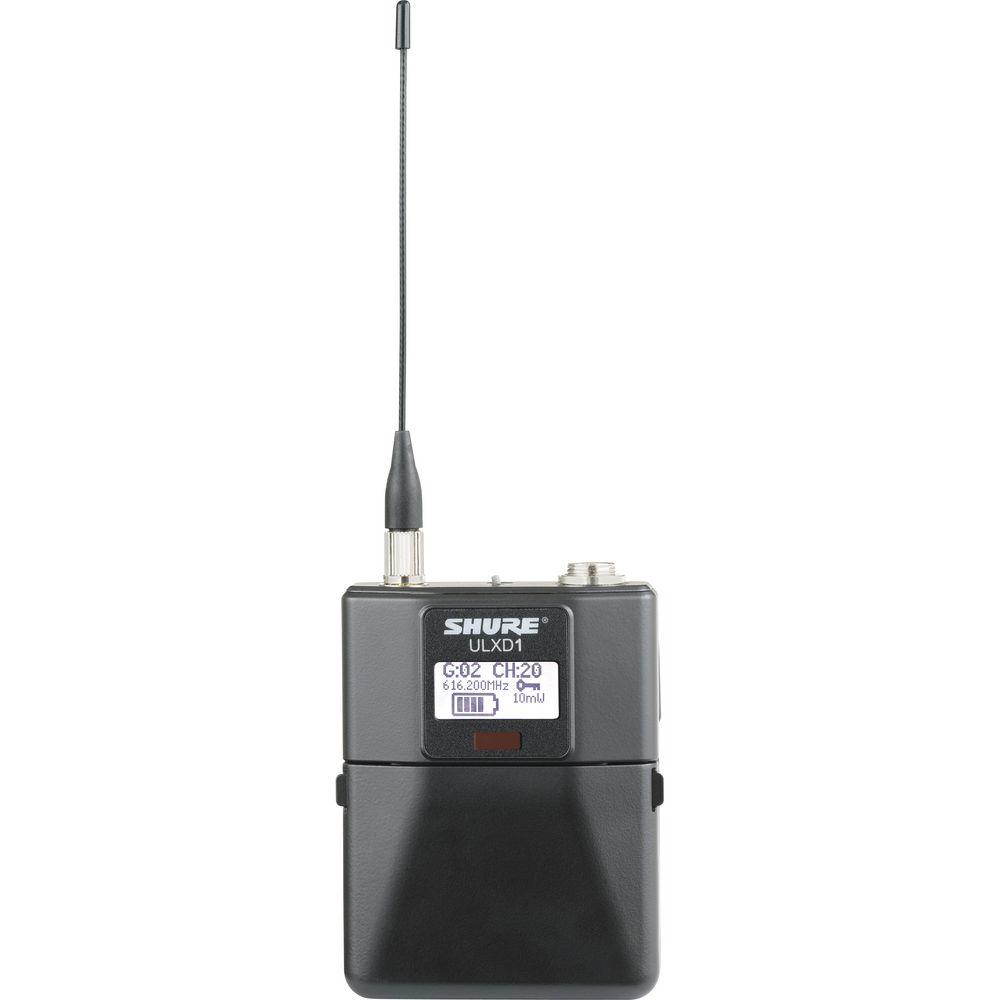

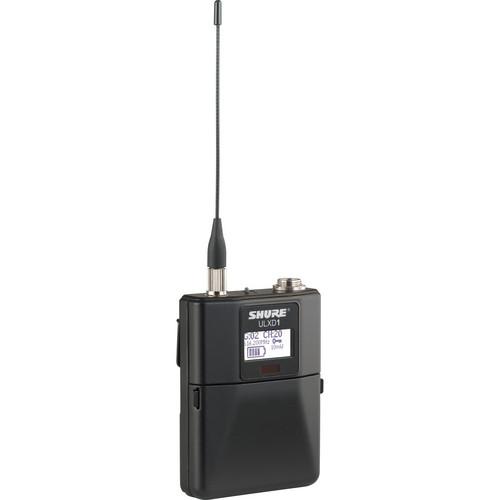

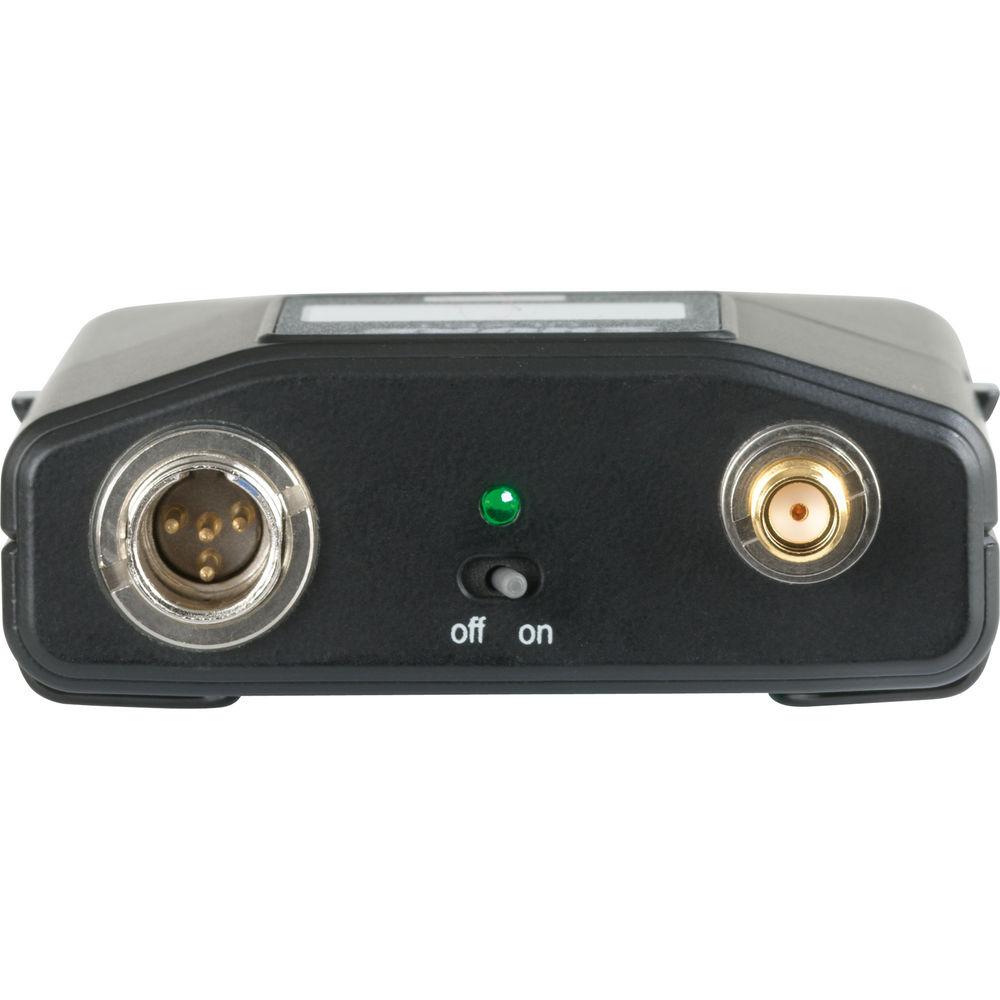

Product description The ULXD1 Wireless Bodypack Transmitter by Shure is for capturing audio. It can be used in various environments, when paired with a ULXD4 receiver for applications such as, theater, stage, broadcast TV, DJ setups, and more. The ULXD1 compact bodypack transmitter is enclosed in a rugged metal housing with a TA4-M (4-pin male) audio input connector and features a comprehensive LCD display.The ULXD1 features pristine, compandor-free digital transmission for uncompromising sound quality, range and detail. Its 256-bit encryption keeps wireless transmissions secure, and its adjustable RF output power delivers maximum range wherever necessary. The ULXD1 operates on either alkaline AA batteries or Li-Ion rechargeable batteries for up to 12 hours. - AES 256-bit encryption for applications requiring secure data transmission
- Proprietary Shure gain ranging optimizes the system's dynamic range for any input source, eliminating the need for transmitter gain adjustments
- Shure SB900 Lithium-Ion rechargeable battery provides up to 12 hours of battery life, precision metering with 5-segment battery fuel gauge, and zero memory effect

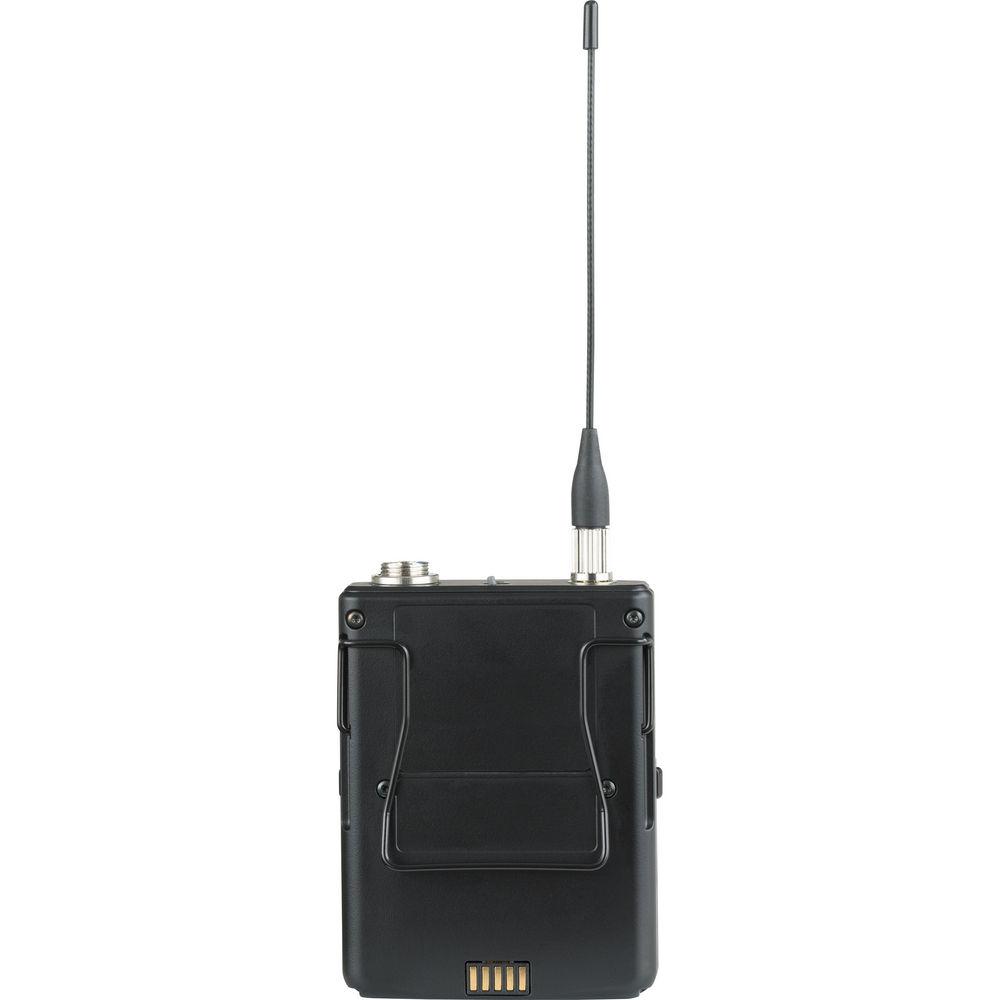

- External charging contacts for docked charging (with the SBC200 dual docking charger)
- Backlit LCD with easy to navigate menu and controls
- Rugged metal construction
- Detachable 1/4 wave antenna
- Frequency and power lockout
UPC: 042406339025 In the Box Shure ULXD1 Wireless Bodypack Transmitter - H50 / 534 to 598 MHz 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Shure ULXD1 Wireless Bodypack Transmitter - H50 534 to 598 MHz in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersShure ULXD2 Specs | Frequency Band | H50: 537 to 598 MHz | | Gain Offset Range | 0 to 21 dB (in 3 dB steps) | | Battery Type | Shure SB900 Rechargeable Li-Ion or AA batteries
Battery Runtime @ 10 mW:
Shure SB900: > 12 hours
Alkaline: 11 hours | | Housing | Cast aluminum | | Audio Input Connectors | 4-Pin male mini connector (TA4M)
Configuration: Unbalanced | | Impedance | 1 Mega ohm | | Maximum Input Level | Pad Off: 8.5 dBV (7.5 Vpp)
Pad On: 20.5 dBV (30 Vpp) | | EIN | Preamplifier Equivalent Input Noise (EIN), System Gain Setting = +20: 120 dBV, A-weighted, typical | | RF Output | SMA | | Antenna | 1/4 wave | | Impedance | 50 ohms | | Bandwidth | Occupied Bandwidth: < 200 kHz | | Modulation | Shure Proprietary Digital | | Power | 1 mW, 10 mW, 20 mW | | Operating Range | 300' (100m) | | Frequency Response | 20 Hz to 20 kHz (±1 dB), flat
Note: Dependent on microphone type | | Dimensions (HxWxD) | 3.4 x 2.6 x 0.9" (86 x 66 x 23 mm) | | Weight | 142 g (5.0 oz), without batteries | | | | Package Weight | 0.95 lb | | Box Dimensions (LxWxH) | 12.7 x 4.8 x 3.3" |
