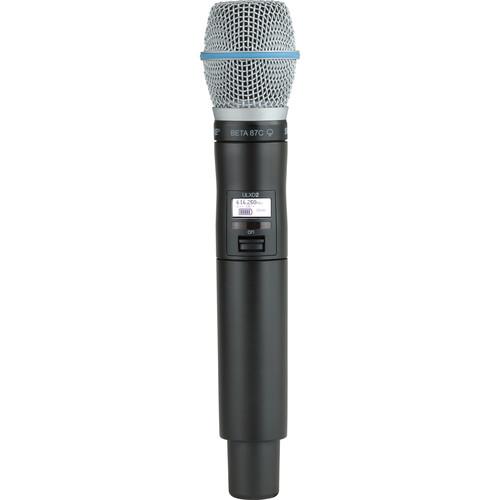

User Manual for Shure ULXD2 Beta87C Handheld Wireless Transmitter Click to enlarge the picture
Contents of the user manual for the Shure ULXD2 Beta87C Handheld Wireless Transmitter
- Product category: Wireless Transmitters Shure
- Brand: Shure
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Shure Wireless Transmitters
|
User manual for the Shure ULXD2 Beta87C Handheld Wireless Transmitter contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Shure product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Shure user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Shure product will considerably shorten its lifespan!
|
Product description For capturing audio, the ULXD2/Beta87C Handheld Wireless Microphone Transmitter by Shure is a good choice to get the job done. Featuring transparent 24-bit digital audio quality, it is used for wireless vocals in presentation spaces, music venues, houses of worship, DJ setups, and more. It features a 30 Hz to 20 kHz frequency response and has more than 120 dB dynamic range. Powered by 2 AA batteries, or the optional SB 900 lithium-ion rechargeable battery pack, the ULXD2 quickly syncs with a wireless receiver over IR at the push of a button and maintains clear, uninterrupted signal over its entire 100 m (328 ft.) range. All-metal construction ensures durability, and a wide selection of compatible microphone choices is ideal for your presentation. - For the Shure ULX-D wireless system
- Features interchangeable Shure microphone capsules
- AES 256-bit encryption for secure transmission
- Up to 11 hours continuous use with 2 x AA alkaline batteries
- Optional Shure SB900 lithium ion rechargeable battery (sold separately) provides up to 10 hours of continuous use and reports remaining runtime in hours and minutes
- Backlit LCD with easy to navigate menu and controls
- Selectable display mode showing group/channel, frequency, or battery runtime
- Rugged metal construction
- Transmitter has 328' (100 meter) line-of-sight operating range
- Features frequency and power lockout
In the Box Shure ULXD2/Beta87C Handheld Wireless Transmitter (X52: 902 to 928 MHz) 2 x AA Batteries Michophone Clip Zipper Bag Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Shure ULXD2 Beta87C Handheld Wireless Transmitter in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersShure ULXD2 Specs | RF Carrier Frequency Range | X52: 902 to 928 MHz | | Working Range | 328' (100 m) | | RF | Tuning Step Size: 25 kHz, varies by region | | Frequency Response | 30 Hz to 20 kHz | | Dynamic Range | >120 dB | | Mic Offset Range | 0 to 21 dB (in 3 dB steps) | | Audio Input | Configuration: unbalanced
Maximum Input Level 1 kHz at 1% THD: 145 dB SPL (SM58), typical
Note: Dependent on microphone type | | Maximum Input Level | 1 kHz at 1% THD: 145 dB SPL (SM58), typical
Note: Dependent on microphone type | | Capsule | Beta 87C | | RF Output | Antenna Type: Integrated single band helical
Occupied Bandwidth: Less than 200 kHz
Modulation Type: Shure proprietary digital
Power: 0.25, 10, or 20 mW (varies by region) | | Battery Type | Shure SB900 rechargeable Li-ion or AA batteries 1.5 V | | Battery Runtime | At 10 mW
Shure SB900: up to 10 hours
Alkaline: up to 11 hours | | Housing | Machined aluminum | | Operating Temperature Range | 0 to 122°F / -18 to 50°C
Note: Battery characteristics may limit this range. | | Storage Temperature Range | -20 to 165°F / -29 to 74°C)
Note: Battery characteristics may limit this range. | | Dimensions (L x Diam) | 10.1 x 1.5" / 256 x 37 mm | | Weight | 12.2 oz / 347 g without batteries |
