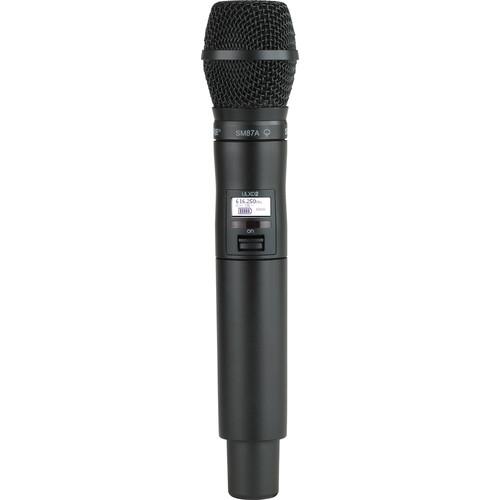

User Manual for Shure ULXD2 Handheld Transmitter with SM87A Microphone Capsule Click to enlarge the picture
Contents of the user manual for the Shure ULXD2 Handheld Transmitter with SM87A
- Product category: Wireless Transmitters Shure
- Brand: Shure
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Shure Wireless Transmitters
|
User manual for the Shure ULXD2 Handheld Transmitter with SM87A contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Shure product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Shure user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Shure product will considerably shorten its lifespan!
|
Product description The ULXD2 Handheld Transmitter with SM87A Microphone Capsule from Shure is designed for compatibility with Shure's ULX-D wireless systems. It has an interchangeable SM87A capsule and is set to Shure's J50A frequency band that operates between 572 to 608 + 614 to 616 MHz.
The ULXD2 has AES 256-bit encryption that keeps your signal secure. Featuring Shure's proprietary Gain Ranging, the ULXD2's dynamic range is optimized based on the input source and eliminates the need for transmitter gain adjustments. It has a lightweight, 12-ounce metal body with a backlit LCD menu with frequency and power lockout to avoid accidental setting changes. Powered by two AA batteries or the optional SB900 rechargeable battery pack, the ULXD2 has external charging contacts and is compatible with SBC200 dual docking charger. In the Box Shure ULXD2 Handheld Transmitter with SM87A Microphone Capsule (J50A) Mic Clip Zipper Bag 2 x AA Alkaline Batteries Battery Contact Cover Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Shure ULXD2 Handheld Transmitter with SM87A Microphone Capsule in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersShure ULXD2/SM87-J50A Specs | | | Mic Offset Range | 0 to 21 dB (in 3 dB Steps) | | Frequency Band | J50A: 572 to 608 + 614 to 616 MHz | | Audio Input | Configuration: Unbalanced | | Maximum Input Level | 1 kHz @ 1% THD | | RF Output | Antenna Type: Integrated Single-Band Helical
Occupied Bandwidth: <200 khz
Modulation Type: Shure Proprietary Digital
Power: 1 mW, 10 mW, 20 mW (Varies by Region) | | Battery Type | 2x LR6 AA Batteries 1.5 V
Shure SB900 Rechargeable Li-Ion | | Battery Life | Shure SB900: >11 Hours @ 10 mW
Alkaline Batteries: >11 Hours @ 10 mW | | Housing | Machined Aluminum | | Dimensions (Ø x L) | 2 x 10.1" / 51 x 256 mm | | Weight | 12 oz / 340 g | | | | Type | Condenser | | Frequency Response | 50 Hz to 20 kHz | | Polar Pattern | Supercardioid | | Sensitivity | Open Circuit Voltage: -52.5 dBV/Pa (2.4 mV) (1 Pa = 94 dB SPL) at 1 kHz | | Output Clipping Level | 1-kOhm Load at 1 kHz: -6 dBV (0.5 V) | | Maximum SPL | 140.5 dB @ 1 kHz @ 1% THD, 1-kOhm load | | Self Noise | 24 dB Typical, A-Weighted
26 dB Typical, Weighted per DIN 45 405 | | Dynamic Range | 116.5 dB (Maximum SPL to A-Weighted Noise Level), @ 1 kOhm | | Signal to Noise Ratio | 70 dB Referenced @ 94 dB SPL @ 1 kHz (S/N Ratio Is Difference between 94 dB SPL and Equivalent SPL of Self Noise, A-Weighted) |
