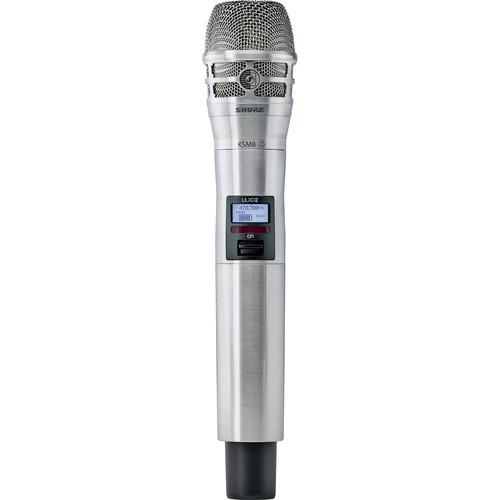

User Manual for Shure ULXD2 K8N Handheld Transmitter with KSM8 Mic Capsule Click to enlarge the picture
Contents of the user manual for the Shure ULXD2 K8N Handheld Transmitter with
- Product category: Wireless Transmitters Shure
- Brand: Shure
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Shure Wireless Transmitters
|
User manual for the Shure ULXD2 K8N Handheld Transmitter with contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Shure product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Shure user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Shure product will considerably shorten its lifespan!
|
Product description Unveiled: Shure KSM8 Microphones Read More The nickel ULXD2 Handheld Transmitter with KSM8 Microphone Capsule from Shure is designed for compatibility with Shure's ULX-D wireless systems. It has an interchangeable KSM8 capsule and is set to Shure's G50 frequency band that operates between 470.120 to 533.920 MHz.
The ULXD2 has AES 256-bit encryption that keeps your signal secure. Featuring Shure's proprietary Automatic Gain Ranging, the ULXD2's dynamic range is optimized based on the input source and eliminates the need for transmitter gain adjustments. It has a lightweight, 12-ounce metal body with a backlit LCD menu with frequency and power lockout to avoid accidental setting changes. Powered by two AA batteries or the optional SB900A rechargeable battery pack, the ULXD2 has external charging contacts and is compatible with the SBC200 dual docking charger. - Patented cartridge design featuring two ultra-thin diaphragms (one active and one passive) and groundbreaking inverted airflow system
- Exceptional control of proximity effect vastly increases working distance without on-axis coloration
- Accurate frequency response due to controlled proximity effect which allows for neutral mid-and-high frequency reproduction
- Off-axis attenuation is flat and broad resulting in superior quality of rejection of unwanted sound sources for increased vocal clarity
- Shock Mount design for exceptional rejection of handling noise without any loss of low frequency response
- Dent-resistant, hardened carbon-steel grille design lined with hydrophobic woven fabric provides exceptional plosive and wind protection, while offering virtually waterproof protection
UPC: 042406465410 In the Box Shure ULXD2/K8N Handheld Transmitter with KSM8 Mic Capsule (G50: 470.120 to 533.920 MHz, Nickel) Mic Clip Zippered Bag Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Shure ULXD2 K8N Handheld Transmitter with KSM8 Mic Capsule in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersShure ULXD2 Specs | | | Frequency Band | G50: 470.120 to 533.920 MHz | | Gain Offset Range | 0 to 21 dB (in 3 dB Steps) | | Audio Input | Configuration: Unbalanced | | RF Output | Antenna Type: Integrated Single Band Helical
Occupied Bandwidth: <200 khz
Modulation Type: Shure Proprietary Digital
Power: 1 mW, 10 mW, 20 mW (Varies by Region) | | Battery Type | 2 x LR6 AA Batteries 1.5 V
Shure SB900A Rechargeable Li-Ion | | Battery Life | Shure SB900A: >11 Hours @ 10 mW
Alkaline Batteries: 11 Hours @ 10 mW | | Housing | Machined Aluminum | | Dimensions (Ø x L) | 2 x 10.1" / 51 x 256 mm | | Weight | 12 oz / 340 g | | | | Type | Dual-Diaphragm Dynamic (Moving Coil) | | Frequency Response | 40 Hz to 16 kHz | | Polar Pattern | Cardioid | | Sensitivity | -51.5 dBV/Pa (2.66 mV) @ 1 kHz Open-Circuit Voltage | | | | Package Weight | 1.65 lb | | Box Dimensions (LxWxH) | 12.7 x 4.9 x 3.4" |
