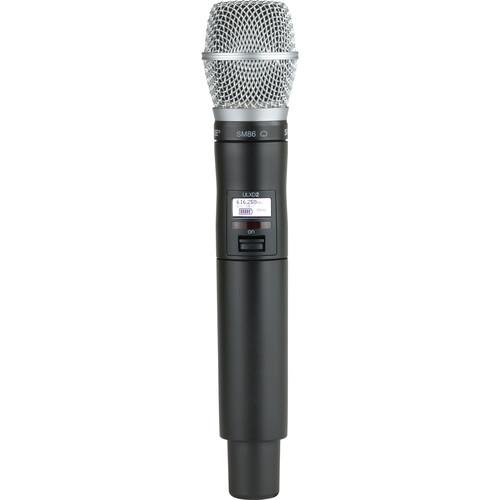

User Manual for Shure ULXD2 VHF Handheld Transmitter with SM86 Microphone Capsule Click to enlarge the picture
Contents of the user manual for the Shure ULXD2 VHF Handheld Transmitter with
- Product category: Wireless Transmitters Shure
- Brand: Shure
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Shure Wireless Transmitters
|
User manual for the Shure ULXD2 VHF Handheld Transmitter with contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Shure product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Shure user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Shure product will considerably shorten its lifespan!
|
Product description The ULXD2 VHF Handheld Transmitter with SM86 Microphone Capsule from Shure is designed for compatibility with Shure's ULX-D wireless systems. It has an interchangeable SM86 capsule and is set to Shure's G50 frequency band that operates between 174 to 216 MHz.
The ULXD2 has AES 256-bit encryption that keeps your signal secure. Featuring Shure's proprietary Gain Ranging, the ULXD2's dynamic range is optimized based on the input source and eliminates the need for transmitter gain adjustments. It has a lightweight, 12-ounce metal body with a backlit LCD menu with frequency and power lockout to avoid accidental setting changes. Powered by two AA batteries or the optional SB900 rechargeable battery pack, the ULXD2 has external charging contacts and is compatible with SBC200 dual docking charger. UPC: 042406463041 In the Box Shure ULXD2 VHF Handheld Transmitter with SM86 Microphone Capsule (V50) Mic Clip Zipper Bag 2 x AA Alkaline Batteries Battery Contact Cover Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Shure ULXD2 VHF Handheld Transmitter with SM86 Microphone Capsule in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersShure ULXD2 Specs | | | Mic Offset Range | 0 to 21 dB (in 3 dB Steps) | | Frequency Band | V50: 174 to 216 MHz | | Audio Input | Configuration: Unbalanced | | Maximum Input Level | 1 kHz @ 1% THD | | RF Output | Antenna Type: Integrated Single-Band Helical
Occupied Bandwidth: < 200 kHz
Modulation Type: Shure Proprietary Digital
Power: 1 mW, 10 mW, 20 mW (Varies by Region) | | Battery Type | 2x LR6 AA Batteries 1.5 V
Shure SB900 Rechargeable Li-Ion | | Battery Life | Shure SB900: > 11 Hours @ 10 mW
Alkaline Batteries: > 11 Hours @ 10 mW | | Housing | Machined Aluminum | | Dimensions (Ø x L) | 2 x 10.1" / 51 x 256 mm | | Weight | 12 oz / 340 g | | | | Type | Condenser | | Frequency Response | 50 Hz to 18 kHz | | Polar Pattern | Cardioid | | Sensitivity | -50 dBV/Pa (3.15 mV) 1 Pa = 94 dB SPL; @ 1 kHz Open-Circuit Voltage | | Maximum SPL | 147 dB (1% THD), 1-kOhm Load @ 1 kHz | | Dynamic Range | 124 dB (Maximum SPL to A-Weighted Noise Level), 1 kOhm | | Signal to Noise Ratio | 71 dB at 94 dB SPL (IEC 651)
S/N Ratio Is Difference between 94 dB SPL and Equivalent SPL of Self Noise A-Weighted | | Self Noise | 23 dB (Typical, Equivalent SPL; A-Weighted) |
