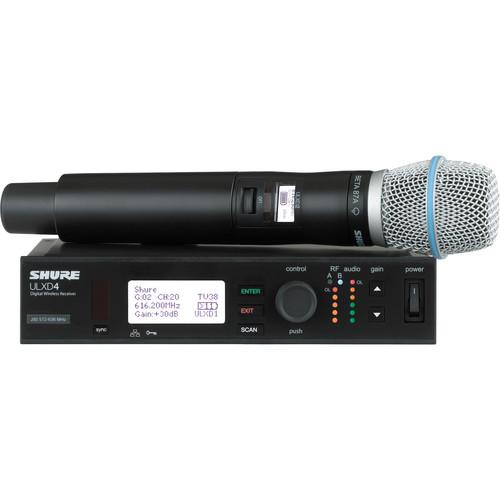

User Manual for Shure ULXD24 B87A Handheld Wireless System Click to enlarge the picture
Contents of the user manual for the Shure ULXD24 B87A Handheld Wireless System
- Product category: Wireless Systems Shure
- Brand: Shure
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Shure Wireless Systems
|
User manual for the Shure ULXD24 B87A Handheld Wireless System contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Shure product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Shure user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Shure product will considerably shorten its lifespan!
|
Product description The Shure ULXD24/B87A Handheld Wireless System features 24-bit audio clarity, efficient RF performance, and AES-256 encryption, ULX-D Digital Wireless Systems set a new standard for professional sound reinforcement. Optional rechargeable accessories are available.
The set includes the ULXD2 handheld transmitter with a BETA87A supercardioid condenser capsule, ULXD4 single-channel receiver, microphone clip, zipper bag, two AA batteries, power supply, two 1/2 wave antennas, two 2' BNC cables, 2 BNC bulkhead adapters, rackmount kit, and a 5' ethernet cable. - Shure ULXD4 Digital Wireless Receiver (H50: 534 to 598 MHz) The ULXD4 Digital Wireless Receiver from Shure is designed for compatibility with Shure's ULX-D wireless systems. It is tuned to Shure's H50 frequency band that operates from 534 to 598 MHz. It features 256-bit AES encryption that allows for reception of secure signals. The unit's digital predictive switching diversity is designed to assure you have consistent reception.
-
- Predictive switching diversity
- High Density mode optimizes ULX-D systems to simultaneously operate significantly more channels in applications up to 30 meters
- Intelligent scanning automatically finds and deploys the cleanest frequencies to transmitters over IR sync
- Interference detection and alerts provided on both the receiver and Wireless Workbench 6
- Front-panel gain adjustment buttons provide up to 60 dB additional gain
- AES 256-bit encryption-enabled for applications where secure transmission is needed
- Ethernet networking provides streamlined setup across multiple receivers, Wireless Workbench 6 integration, and AMX/Crestron control
- Support for frequency coordination with the Axient Spectrum Manager
- Metal chassis
- Front-panel LCD menu and controls with lockout feature
- LCD with adjustable contrast and brightness
- Audio and RF LED meters with peak indicator
- Remoteable ½ wave antennas
- Furnished rack hardware
UPC: 042406338998 - Shure ULXD2 Handheld Transmitter with Beta 87A Microphone Capsule (H50) The ULXD2 Handheld Transmitter with Beta 87A Microphone Capsule from Shure is designed for compatibility with Shure's ULX-D wireless systems. It has an interchangeable Beta 87A capsule and is set to Shure's H50 frequency band that operates between 534 to 598 MHz.
The ULXD2 has AES 256-bit encryption that keeps your signal secure. Featuring Shure's proprietary Gain Ranging, the ULXD2's dynamic range is optimized based on the input source and eliminates the need for transmitter gain adjustments. It has a lightweight, 12-ounce metal body with a backlit LCD menu with frequency and power lockout to avoid accidental setting changes. Powered by two AA batteries or the optional SB900 rechargeable battery pack, the ULXD2 has external charging contacts and is compatible with SBC200 dual docking charger. UPC: 042406339049 In the Box - ULXD4 Digital Wireless Receiver (H50: 534 to 598 MHz) tzbsfczweuuttqarvuuvbsueuftzrbdxdvreev
- 2 x Remoteable 1/2 Wave Antennas
- Rack Hardware
- Power Supply
- Limited 2-Year Warranty
- ULXD2 Handheld Transmitter with Beta 87A Microphone Capsule (H50)
Table of Contents
|
Upload User Manual
Have you got an user manual for the Shure ULXD24 B87A Handheld Wireless System in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - Shure ULXD4 Digital Wireless Receiver (H50: 534 to 598 MHz)
| | | Spurious Rejection | >80 dB, Typical | | Connector | BNC | | Impedance | 50 Ohms | | Bias Voltage(s) | 12 to 13 VDC, 170 mA Maximum, per Antenna | | | | Gain Adjustment Range | -18 to 42 dB in 1 dB Steps (Plus Mute Setting) | | Configuration | 1/4" / 6.3 mm: Impedance Balanced (Tip= Audio, Ring= No Audio, Sleeve= Ground)
XLR: Balanced (1= Ground, 2= Audio +, 3= Audio −) | | Impedance | 1/4" / 6.3 mm: 100 Ohms (50 Ohms Unbalanced)
XLR: 100 Ohms | | Full Scale Output | 1/4" / 6.3 mm: 12 dBV
XLR: LINE Setting= 18 dBV, MIC Setting= -12 dBV | | Mic/Line Switch | 30 dB Pad | | Phantom Power Protection | 1/4" / 6.3 mm: Yes
XLR: Yes | | | | PoE | No, Protected | | Network Interface | Single-Port Ethernet 10/100 Mb/s | | Network Addressing Capability | DHCP or Manual IP Address | | Maximum Cable Length | 328' / 100 m | | | | Housing | Steel | | Power Requirements | 15 VDC @ 0.6 A, Supplied by External Power Supply (Tip Positive) | | Dimensions (HxWxD) | 7.75 x 6.75 x 1.65" / 197 x 171 x 42 mm | | Weight | 2 lb / 913 g Without Antennas | | | | Box Dimensions (LxWxH) | 18.346 x 14.882 x 3.622" | - Shure ULXD2 Handheld Transmitter with Beta 87A Microphone Capsule (H50)
| | | Mic Offset Range | 0 to 21 dB (in 3 dB Steps) | | Frequency Band | H50: 534 to 598 MHz | | Audio Input | Configuration: Unbalanced | | Maximum Input Level | 1 kHz @ 1% THD | | RF Output | Antenna Type: Integrated Single-Band Helical
Occupied Bandwidth: < 200 kHz
Modulation Type: Shure Proprietary Digital
Power: 1 mW, 10 mW, 20 mW (Varies by Region) | | Battery Type | 2x LR6 AA Batteries 1.5 V
Shure SB900 Rechargeable Li-Ion | | Battery Life | Shure SB900: > 11 Hours @ 10 mW
Alkaline Batteries: > 11 Hours @ 10 mW | | Housing | Machined Aluminum | | Dimensions (Ø x L) | 2 x 10.1" / 51 x 256 mm | | Weight | 12 oz / 340 g | | | | Type | Condenser (Electret Biased) | | Frequency Response | 50 Hz to 20 kHz | | Polar Pattern | Supercardioid | | Sensitivity | -52.5 dBV/Pa (2 mV), 1 Pascal=94 dB SPL @ 1 kHz, Open-Circuit Voltage | | Maximum SPL | 140.5 dB @ 1 kHz @ 1% THD, 1-kOhm Load | | Signal to Noise Ratio | 70.5 dB Referenced @ 94 dB SPL @ 1 kHz (S/N Ratio Is Difference between 94 dB SPL and Equivalent SPL of Self Noise, A-Weighted) | | Dynamic Range | 117 dB @ 1 kHz @ 1-kOhm Load | | Clipping Level | -6 dBV (0.5 V), @ 1 kHz @ 0.25% THD, 1-kOhm Load | | Self Noise | 23.5 dB (Typical, Equivalent SPL; A-Weighted) | | | | Box Dimensions (LxWxH) | 12.6 x 4.7 x 3.2" |
