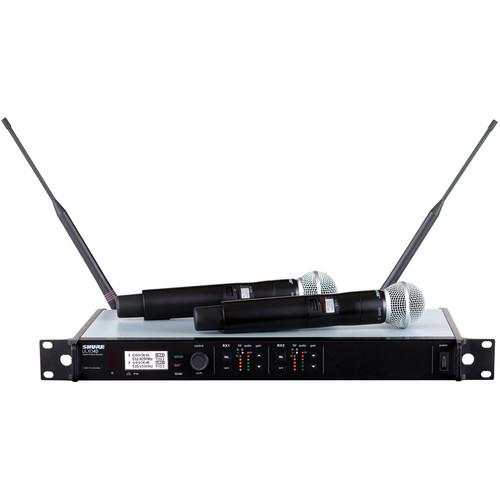

Product description The ULXD24D/SM58 Dual Channel Handheld Digital Wireless Microphone System from Shure includes two ULXD2 handheld transmitters with SM58 cartridges and the ULXD4D dual-channel digital receiver. It is designed to accommodate up to two speakers or singers for a multitude of situations that call for wireless miking. The ULXD2 handheld transmitter is housed in aluminum body that is designed to be rugged yet lightweight. It runs on two AA batteries or on the optional Shure SB900 rechargeable battery pack. Designed for use onstage, the ULXD2 is fitted with an SM58 microphone cartridge with a cardioid polar pattern. It features an integrated antenna as well as external charging contacts for use with the optional SBC200 Dual Docking Charger. It also features a backlit LCD display for visibility onstage, and a lock button to prevent settings from being changed while you are performing. The ULXD4D dual receiver delivers 24-bit/48 kHz digital audio and is capable of supporting both ULXD2 handheld transmitters simultaneously. Housed in an all-metal chassis, it can be installed into a single rack space. The receiver features dual XLR outputs for discrete routing of each channel into your mixer, as well as automatic frequency scanning for finding the strongest available signal. Additionally, the ULXD4D employs AES 256-bit encryption which delivers secure wireless transmission for applications that call for privacy. - Shure ULXD4D Dual-Channel Wireless Receiver (G50: 470 to 534 MHz) The ULXD4D Dual-Channel Wireless Receiver from Shure is designed for compatibility with Shure's ULX-D wireless systems. It is tuned to Shure's G50 frequency band that operates from 470 to 534 MHz. It features 256-bit AES encryption that allows for reception of secure signals. The unit's digital predictive switching diversity is designed to assure you have consistent reception.
The ULX4D is compatible with Dante audio over Ethernet networks. Its digital distribution can be controlled via the Wireless Workbench software. -
- Two receivers in a 1RU metal chassis with internal power supply
- Individual gain controls, LED meters, and XLR outputs for each channel
- Up to 64 MHz tuning range (region dependent)
- Digital predictive switching diversity
- High Density mode optimizes ULX-D systems to simultaneously operate more channels in applications up to 30 meters
- RF cascade ports allow distribution of RF signal to another unit
- Optimized scanning automatically finds, prioritizes, and deploys the cleanest frequencies to transmitters over IR sync
- Bodypack frequency diversity ensures uninterrupted audio for mission-critical applications
- AES 256-bit encryption-enabled for secure transmission
- Audio summing routes both audio channels to each XLR receiver output
- Dante digital networked audio over Ethernet
- Up to 60 dB independently adjustable gain for each channel
- Ethernet networking for streamlined frequency coordination and deployment across multiple receivers
- Wireless Workbench 6 (WWB6) software integration for advanced coordination, monitoring, and control
- Interference detection and alerts provided on both the receiver and WWB6
- AMX/Crestron control
- AXT600 Axient Spectrum Manager compatible
- Intuitive front-panel LCD menu and controls with lockout feature
- Audio and RF LED meters with peak indicator
- XLR connectors with switchable mic/line output level
- Remoteable 1/2 wave antennas
UPC: 042406214155 - 2 x Shure ULXD2 Handheld Transmitter with SM58 Microphone Capsule (G50: 470 to 534 MHz) The ULXD2 Handheld Transmitter with SM58 Microphone Capsule from Shure is designed for compatibility with Shure's ULX-D wireless systems. It has an interchangeable SM58 capsule and is set to Shure's G50 frequency band that operates between 470 to 534 MHz.
The ULXD2 has AES 256-bit encryption that keeps your signal secure. Featuring Shure's proprietary Gain Ranging, the ULXD2's dynamic range is optimized based on the input source and eliminates the need for transmitter gain adjustments. It has a lightweight, 12-ounce metal body with a backlit LCD menu with frequency and power lockout to avoid accidental setting changes. Powered by two AA batteries or the optional SB900 rechargeable battery pack, the ULXD2 has external charging contacts and is compatible with the SBC200 dual docking charger. UPC: 042406214179 In the Box - ULXD4D Dual-Channel Wireless Receiver (G50: 470 to 534 MHz) tbvbfdqrxyqywxxzecqwa
- 2 x 1/2 Wave Antennas
- Hardware Kit
- 2 x BNC Cables
- 2 x BNC Bulkhead Adapters
- 3' Ethernet Cable
- Power Cable
- Limited 2-Year Warranty
- 2 x ULXD2 Handheld Transmitter with SM58 Microphone Capsule (G50: 470 to 534 MHz)
Table of Contents
|
Upload User Manual
Have you got an user manual for the Shure ULXD24D SM58 Dual Channel Handheld Digital Wireless Microphone System in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - Shure ULXD4D Dual-Channel Wireless Receiver (G50: 470 to 534 MHz)
| | | Spurious Rejection | >80 dB, Typical | | Connector | BNC | | Impedance | 50 Ohms | | Bias Voltage(s) | 12-13 VDC, 150 mA Maximum, per Antenna | | | | Gain Range | -18 to 42 dB in 1 dB Steps (Plus Mute Setting) | | Configuration | XLR: Balanced (1= Ground, 2= Audio +, 3= Audio -) | | Impedance | 100 Ohms | | Full Scale Output | Line: 18 dBV
Mic: -12 dBV | | Switch | Mic/Line: 30 dB Pad | | Phantom Power Protection | Yes | | | | Network Interface | Dual-Port Ethernet 10/100 Mb/s, 1 Gb/s | | Network Addressing Capability | DHCP or Manual IP | | Ethernet | Maximum Cable Length: 328' / 100 m | | Cascade Output | Connector Type: BNC
Configuration: Unbalanced, Passive
Impedance: 50 Ohms | | | | Power Requirements | 100 to 240 VAC, 50-60 Hz, 0.26 A Maximum | | Dimensions (H x W x D) | 1.73 x 18.97 x 10.79" / 44 x 482 x 274 mm | | Weight | 7.4 lb / 3.36 kg | | | | Box Dimensions (LxWxH) | 27.5 x 17.5 x 3.0" | - 2 x Shure ULXD2 Handheld Transmitter with SM58 Microphone Capsule (G50: 470 to 534 MHz)
| | | Mic Offset Range | 0 to 21 dB (in 3 dB Steps) | | Frequency Band | G50: 470 to 534 MHz | | Audio Input | Configuration: Unbalanced | | Maximum Input Level | 145 dB SPL (1 kHz @ 1% THD) | | RF Output | Antenna Type: Integrated Single Band Helical
Occupied Bandwidth: < 200 kHz
Modulation Type: Shure Proprietary Digital
Power: 1 mW, 10 mW, 20 mW (Varies by Region) | | Battery Type | 2x LR6 AA Batteries 1.5 V
Shure SB900 Rechargeable Li-Ion | | Battery Life | Shure SB900: > 11 Hours @ 10 mW
Alkaline Batteries: 11 Hours @ 10 mW | | Housing | Machined Aluminum | | Dimensions (Ø x L) | 2 x 10.1" / 51 x 256 mm | | Weight | 12 oz / 340 g | | | | Type | Dynamic | | Frequency Response | 50 Hz to 15 kHz | | Polar Pattern | Cardioid | | Sensitivity | -54.5 dBV/Pa (1.85 mV) 1 Pa = 94 dB SPL; @ 1 kHz Open Circuit Voltage | | Self Noise | 23.5 dB (Typical, Equivalent SPL; A-Weighted) | | | | Box Dimensions (LxWxH) | 12.7 x 4.8 x 3.4" |
