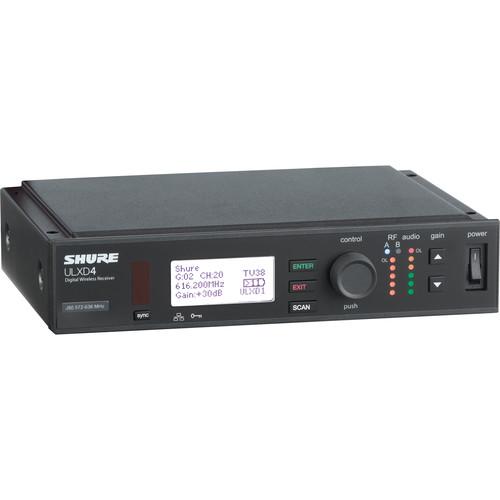

User Manual for Shure ULXD4 VHF Digital Wireless Receiver Click to enlarge the picture
Contents of the user manual for the Shure ULXD4 VHF Digital Wireless Receiver
- Product category: Wireless Receivers Shure
- Brand: Shure
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Shure Wireless Receivers
|
User manual for the Shure ULXD4 VHF Digital Wireless Receiver contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Shure product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Shure user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Shure product will considerably shorten its lifespan!
|
Product description The ULXD4 VHF Digital Wireless Receiver from Shure is designed for compatibility with Shure's ULX-D wireless systems. It is tuned to Shure's V50 frequency band that operates from 174 to 216 MHz. It features 256-bit AES encryption that allows for reception of secure signals. The unit's digital predictive switching diversity is designed to assure you have consistent reception. -
- Predictive switching diversity
- High Density mode optimizes ULX-D systems to simultaneously operate significantly more channels in applications up to 30 meters
- Intelligent scanning automatically finds and deploys the cleanest frequencies to transmitters over IR sync
- Interference detection and alerts provided on both the receiver and Wireless Workbench 6
- Front-panel gain adjustment buttons provide up to 60 dB additional gain
- AES 256-bit encryption-enabled for applications where secure transmission is needed
- Ethernet networking provides streamlined setup across multiple receivers, Wireless Workbench 6 integration, and AMX/Crestron control
- Support for frequency coordination with the Axient Spectrum Manager
- Metal chassis
- Front-panel LCD menu and controls with lockout feature
- LCD with adjustable contrast and brightness
- Audio and RF LED meters with peak indicator
- Remoteable ½ wave antennas
- Furnished rack hardware
UPC: 042406463065 In the Box Shure ULXD4 VHF Digital Wireless Receiver (V50: 174 to 216 MHz) 2 x Remoteable 1/2 Wave Antennas Rack Hardware Power Supply Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Shure ULXD4 VHF Digital Wireless Receiver in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersShure ULXD4 Specs | | | Spurious Rejection | >80 dB, Typical | | Connector | BNC | | Impedance | 50 Ohms | | Bias Voltage(s) | 12 to 13 VDC, 170 mA Maximum, per Antenna | | | | Gain Adjustment Range | -18 to 42 dB in 1 dB Steps (Plus Mute Setting) | | Configuration | 1/4" / 6.3 mm: Impedance Balanced (Tip= Audio, Ring= No Audio, Sleeve= Ground)
XLR: Balanced (1= Ground, 2= Audio +, 3= Audio −) | | Impedance | 1/4" / 6.3 mm: 100 Ohms (50 Ohms Unbalanced)
XLR: 100 Ohms | | Full Scale Output | 1/4" / 6.3 mm: 12 dBV
XLR: LINE Setting= 18 dBV, MIC Setting= -12 dBV | | Mic/Line Switch | 30 dB Pad | | Phantom Power Protection | 1/4" / 6.3 mm: Yes
XLR: Yes | | | | PoE | No, Protected | | Network Interface | Single-Port Ethernet 10/100 Mb/s | | Network Addressing Capability | DHCP or Manual IP Address | | Maximum Cable Length | 328' / 100 m | | | | Housing | Steel | | Power Requirements | 15 VDC @ 0.6 A, Supplied by External Power Supply (Tip Positive) | | Dimensions (HxWxD) | 7.75 x 6.75 x 1.65" / 197 x 171 x 42 mm | | Weight | 2 lb / 913 g Without Antennas | | | | Package Weight | 6.7 lb | | Box Dimensions (LxWxH) | 18.2 x 14.6 x 3.7" |
