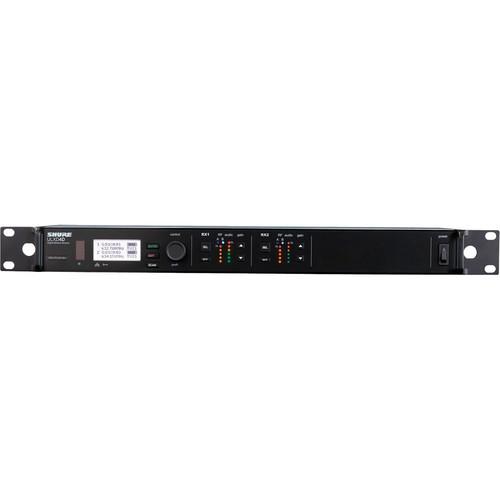

User Manual for Shure ULXD4D Dual-Channel Wireless Receiver Click to enlarge the picture
Contents of the user manual for the Shure ULXD4D Dual-Channel Wireless Receiver
- Product category: Wireless Receivers Shure
- Brand: Shure
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Shure Wireless Receivers
|
User manual for the Shure ULXD4D Dual-Channel Wireless Receiver contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Shure product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Shure user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Shure product will considerably shorten its lifespan!
|
Product description The ULXD4D Dual-Channel Wireless Receiver from Shure is designed for compatibility with Shure's ULX-D wireless systems. It is tuned to Shure's J50A frequency band that operates from 572 to 608 + 614 to 616 MHz. It features 256-bit AES encryption that allows for reception of secure signals. The unit's digital predictive switching diversity is designed to assure you have consistent reception.
The ULX4D is compatible with Dante audio over Ethernet networks. Its digital distribution can be controlled via the Wireless Workbench software. -
- Two receivers in a 1RU metal chassis with internal power supply
- Individual gain controls, LED meters, and XLR outputs for each channel
- Up to 64 MHz tuning range (region dependent)
- Digital predictive switching diversity
- High Density mode optimizes ULX-D systems to simultaneously operate more channels in applications up to 30 meters
- RF cascade ports allow distribution of RF signal to another unit
- Optimized scanning automatically finds, prioritizes, and deploys the cleanest frequencies to transmitters over IR sync
- Bodypack frequency diversity ensures uninterrupted audio for mission-critical applications
- AES 256-bit encryption-enabled for secure transmission
- Audio summing routes both audio channels to each XLR receiver output
- Dante digital networked audio over Ethernet
- Up to 60 dB independently adjustable gain for each channel
- Ethernet networking for streamlined frequency coordination and deployment across multiple receivers
- Wireless Workbench 6 (WWB6) software integration for advanced coordination, monitoring, and control
- Interference detection and alerts provided on both the receiver and WWB6
- AMX/Crestron control
- AXT600 Axient Spectrum Manager compatible
- Intuitive front-panel LCD menu and controls with lockout feature
- Audio and RF LED meters with peak indicator
- XLR connectors with switchable mic/line output level
- Remoteable 1/2 wave antennas
UPC: 042406540728 In the Box Shure ULXD4D Dual-Channel Wireless Receiver (J50A: 572 to 608 + 614 to 616 MHz) 2 x 1/2 Wave Antennas Hardware Kit 2 x BNC Cables 2 x BNC Bulkhead Adapters 3' Ethernet Cable Power Cable Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Shure ULXD4D Dual-Channel Wireless Receiver in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersShure ULXD4D-J50A Specs | | | Spurious Rejection | >80 dB, Typical | | Connector | BNC | | Impedance | 50 Ohms | | Bias Voltage(s) | 12-13 VDC, 150 mA Maximum, per Antenna | | | | Gain Range | -18 to 42 dB in 1 dB Steps (Plus Mute Setting) | | Configuration | XLR: Balanced (1= Ground, 2= Audio +, 3= Audio -) | | Impedance | 100 Ohms | | Full Scale Output | Line: 18 dBV
Mic: -12 dBV | | Switch | Mic/Line: 30 dB Pad | | Phantom Power Protection | Yes | | | | Network Interface | Dual-Port Ethernet 10/100 Mb/s, 1 Gb/s | | Network Addressing Capability | DHCP or Manual IP | | Ethernet | Maximum Cable Length: 328' / 100 m | | Cascade Output | Connector Type: BNC
Configuration: Unbalanced, Passive
Impedance: 50 Ohms | | | | Power Requirements | 100 to 240 VAC, 50-60 Hz, 0.26 A Maximum | | Dimensions (H x W x D) | 1.73 x 18.97 x 10.79" / 44 x 482 x 274 mm | | Weight | 7.4 lb / 3.36 kg | | | | Package Weight | 12.05 lb | | Box Dimensions (LxWxH) | 23.0 x 18.0 x 3.0" |
