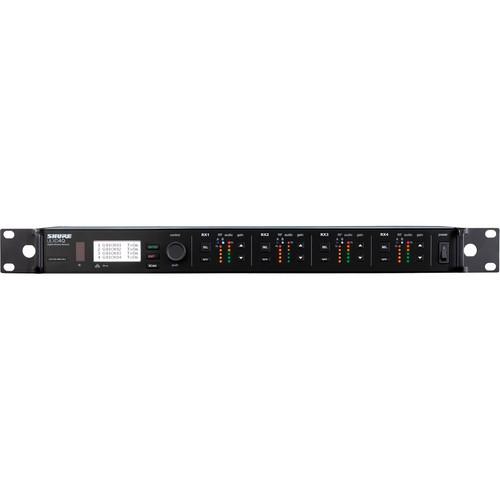

Product description The ULXD4Q Quad-Channel Digital Wireless Receiver from Shure features 4 wireless channels with independent gain control, LED meters, and XLR outputs. It is tuned to operate in Shure's H50 band from 534 to 598 MHz. The ULXD4Q is capable of handling 24-bit/48 kHz audio and can provide AES-256-bit encryption to assure your wireless signal is kept secure.
The dual Ethernet ports allow multiple units to share RF signal as well as be networked together and controlled via Shure's Wireless Workbench 6 Software. The Ethernet ports also provide compatibility with the Dante digital networking system. Each of the four channels can provide up to 60 dB of adjustable gain. The dual antennas are capable of digital predictive switching diversity to reduce interference and signal dropouts. The unit can be rack mounted with the included rack hardware. - Four receivers in a 1RU metal chassis with internal power supply
- Individual gain controls, LED meters, and XLR outputs for each channel
- Up to 64 MHz tuning range (region dependent)
- Digital predictive switching diversity
- High Density mode optimizes ULX-D systems to simultaneously operate significantly more channels in applications up to 30 meters
- RF cascade ports allow distribution of RF signal to another unit
- Optimized scanning automatically finds, prioritizes, and deploys the cleanest frequencies to transmitters over IR sync
- Bodypack frequency diversity ensures uninterrupted audio for mission-critical applications
- Audio summing routes two or more audio channels to combinations of receiver outputs. Use each channel's gain adjustment to reach the desired mix
- Ethernet networking for streamlined frequency coordination and deployment across multiple receivers
- Interference detection and alerts provided on both the receiver and WWB6
- Wireless Workbench 6 (WWB6) software integration for advanced coordination, monitoring, and control
- Compatible with the AXT600 Axient Spectrum Manager
- Intuitive front panel LCD menu and controls with lockout feature
- Upgraded LCD with adjustable contrast and brightness
- Audio and RF LED meters with peak indicator
- Switchable mic/line output level
- Remoteable 1/2 wave antennas
UPC: 042406339018 In the Box Shure ULXD4Q Quad-Channel Digital Wireless Receiver (H50: 534 to 598 MHz) Rack Hardware Power Supply 2 x 1/2 Wave Antennas Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Shure ULXD4Q Quad-Channel Digital Wireless Receiver in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersShure ULXD4Q Specs | | | RF Input | Spurious Rejection: > 80 dB, Typical
Connector Type: BNC
Impedance: 50 Ohms
Bias Voltage: 12 to 13 V DC, 150 mA Maximum, Per Antenna | | Cascade Output | Connector Type: BNC (For Connecting of One Additional Receiver in the Same Band)
Configuration: Unbalanced, Passive
Impedance: 50 Ohms
Insertion Loss: 0 dB | | Audio Output | Gain Adjustment Range: -18 to 42 dB (in 1 dB Steps, Plus Mute Setting)
4x Balanced XLR Outputs
Impedance: 100 Ohms
Line Setting: 18 dBV
Mic Setting: -12 dBV
Mic/Line Switch: 30 dB Pad
Phantom Power Protection: Yes | | Network | Network Interface: Dual Port Ethernet 10/100 Mbps, 1 Gbps, Dante Digital Audio
Network Addressing Capability: DHCP or Manual IP Address
Maximum Cable Length: 328' (100 m) | | Power Requirement | 100 to 240 V AC, 50 to 60 Hz, 0.32 A Maximum | | Dimensions (H x W x D) | 1.7 x 18.9 x 10.7" (44 x 482 x 274 mm) | | Weight | 7.6 lb (3.45 kg) | | | | Package Weight | 14.25 lb | | Box Dimensions (LxWxH) | 27.0 x 17.7 x 3.6" |
