User Manual for Shure ULXD8 Wireless Gooseneck Microphone Base and Transmitter Click to enlarge the picture
Contents of the user manual for the Shure ULXD8 Wireless Gooseneck Microphone Base
- Product category: Wireless Transmitters Shure
- Brand: Shure
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Shure Wireless Transmitters
 |
User manual for the Shure ULXD8 Wireless Gooseneck Microphone Base contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Shure product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Shure user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Shure product will considerably shorten its lifespan!
|

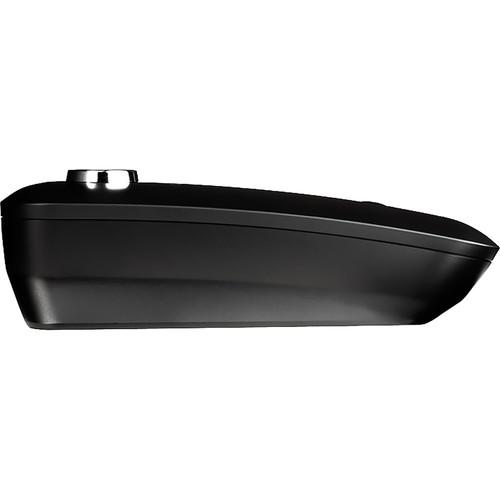

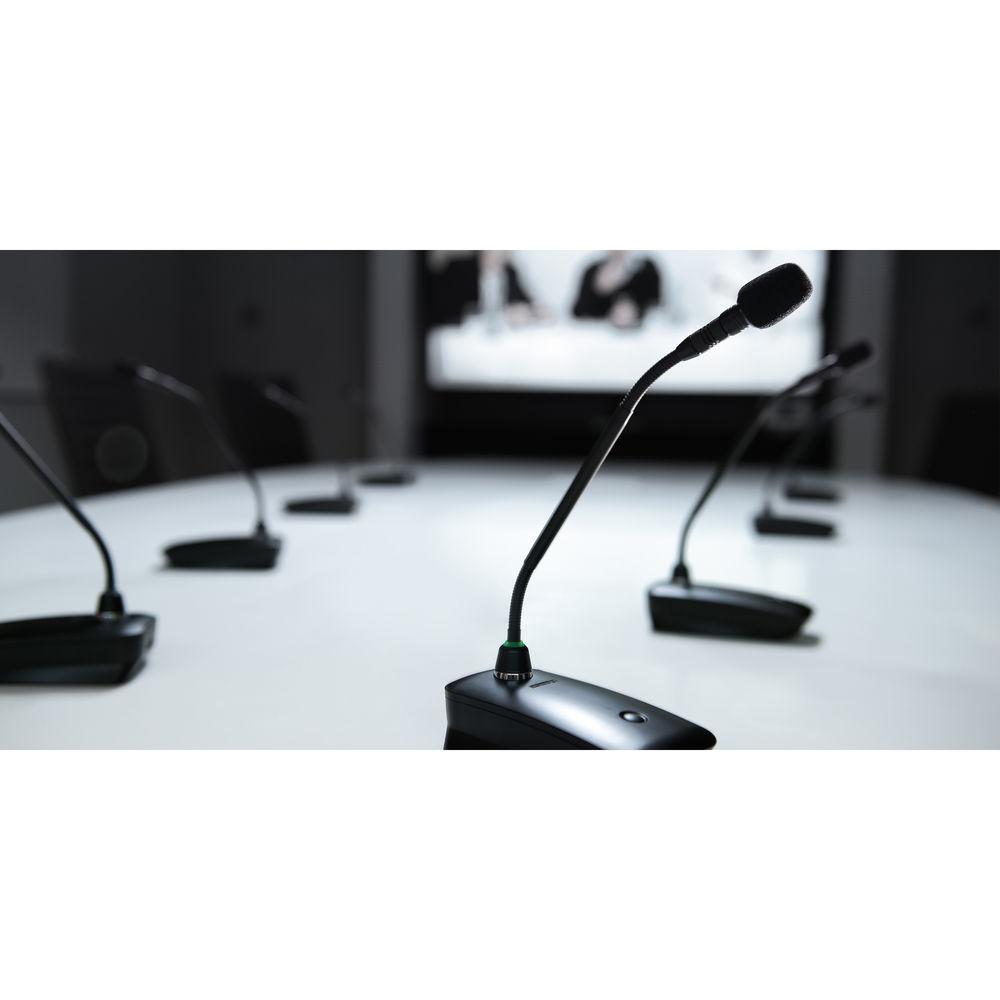

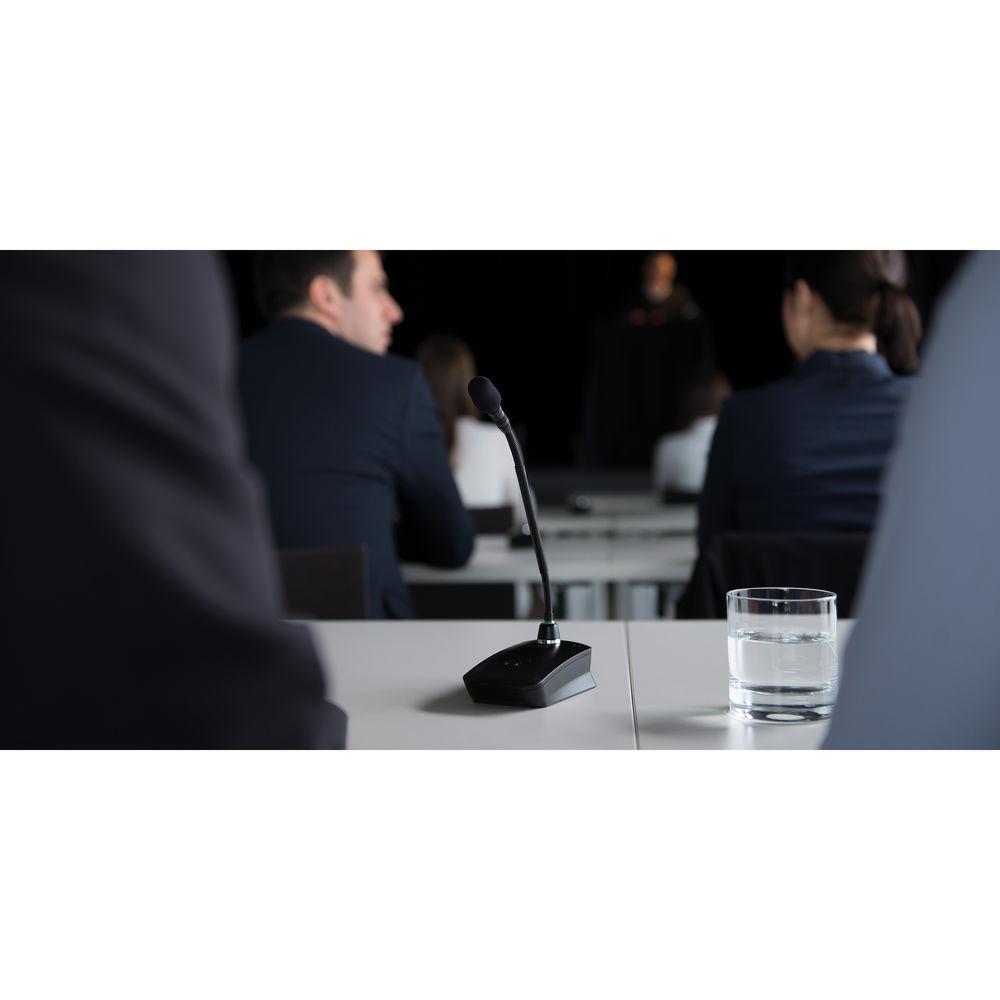

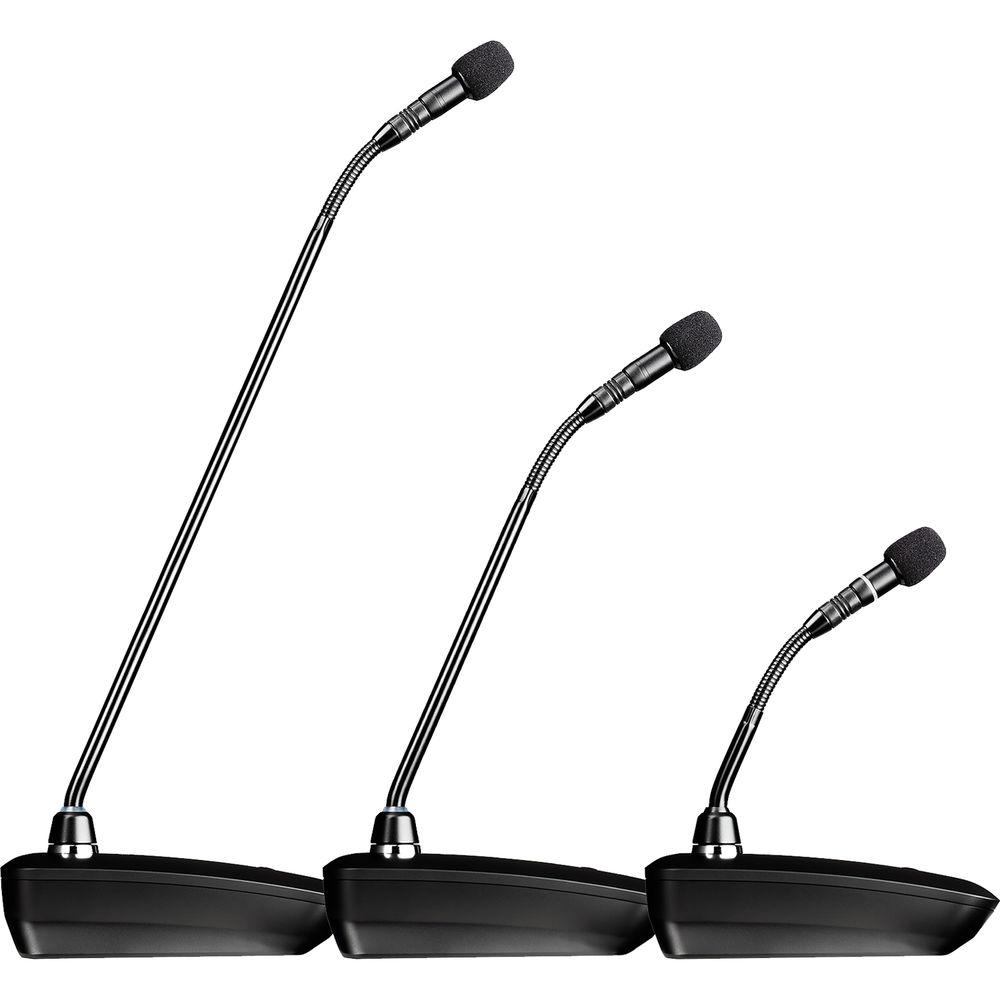

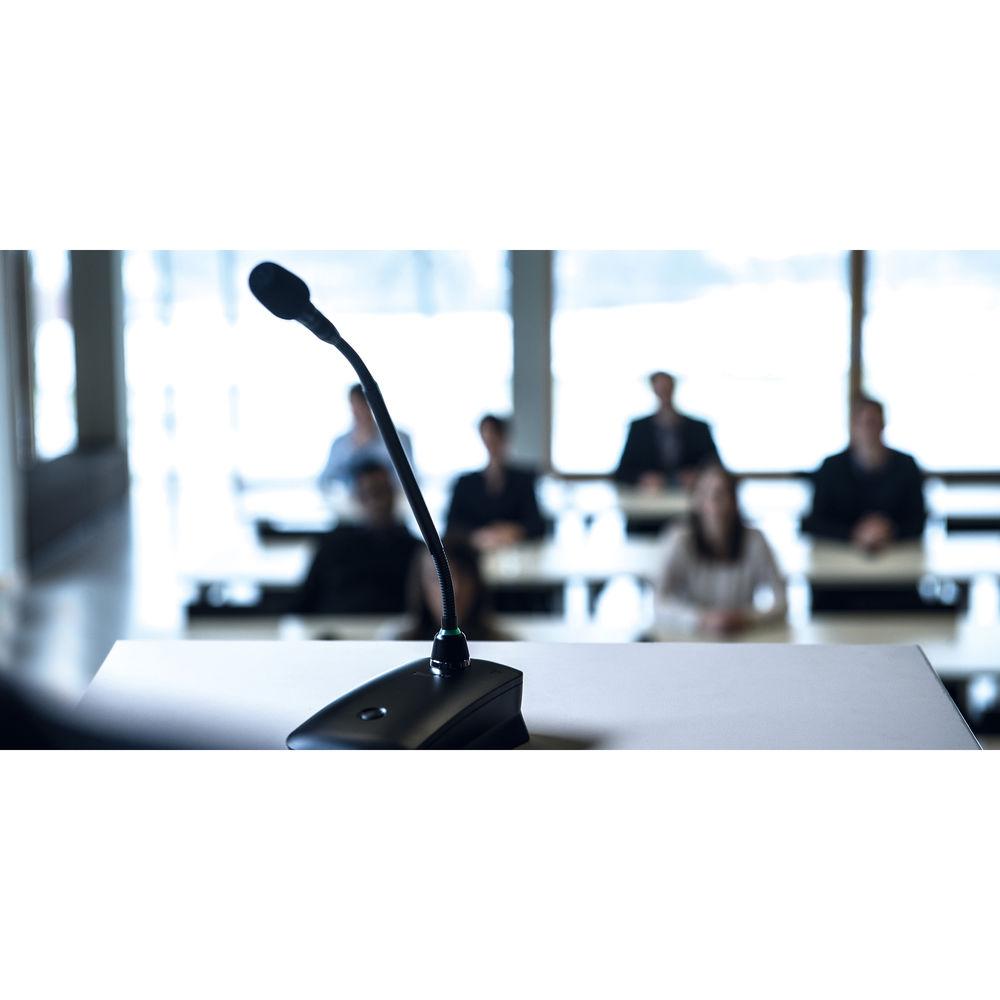

Product description The ULXD8 Wireless Gooseneck Microphone Base and Transmitter from Shure is a low-profile transmitter that offers low latency, long transmission range, and runs on two AA alkaline or rechargeable batteries. It can be used when paired with a ULX-D or QLX-D digital receiver and a Microflex gooseneck microphone to capture audio for meetings, conferences, or other live sound reinforcement applications.Featuring AES 256-bit encryption transmission, the ULXD8 has adjustable RF power, a high-pass filter, and power lock settings. It is designed for quick setup and tear down. Other features include a configurable Mute button (Toggle, Push-to-Mute, Push-to-Talk, Disabled) and Mute LED indicator.In addition, with a long transmission range, up to 300', and a wide selection of antenna distribution components, the ULXD8 is suitable for use in very large meetings at conference and convention centers. Equipped with a choice of (optional) rechargeable battery packs or (included) standard AA batteries, this transmitter provides all-day run time. - Designed for use with Shure's Microflex MX405, MX410, and MX415 gooseneck microphones, as well as Microflex MX410DF and MX415DF Dualflex gooseneck microphones
- Very low latency makes the ULXD8 ideal for meetings that require live sound reinforcement
- Long transmission range (up to 300') for reliable performance in very large meetings at conference and convention centers
- Compatible with the full line of Shure's antennas and distribution components, allowing up to 200 ULXD8 gooseneck base transmitters to be used with just one pair of receiving antennas for efficient setup
- Compatible with ULX-D and QLX-D digital receivers
- Optional SB900A rechargeable batteries provide up to 9 hours of runtime
- Compatible with standard AA alkaline batteries
- Optional SBC450 (4-bay) and SBC850 (8-bay) Networked Charging Stations allow convenient docking and charging when transmitters are not in use
- Configurable Mute button (Toggle, Push-to-Mute, Push-to-Talk, disabled) and Mute LED behavior
- Adjustable RF power, high-pass filter, and power lock settings
In the Box Shure ULXD8 Wireless Gooseneck Microphone Base and Transmitter (X52: 902 to 928 MHz) 2 x AA Batteries Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Shure ULXD8 Wireless Gooseneck Microphone Base and Transmitter in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersShure ULXD8 Specs | | | Frequency Band | X52: 902 to 928 MHz | | Gain Offset Range | 0 to 21 dB (in 3 dB Steps) | | Battery Type | Shure SB900A Rechargeable Li-Ion or AA Batteries 1.5 V | | Battery Run Time | @ 10 mW
Shure SB900: Up to 9 Hours
AA Batteries: Up to 8 Hours 20 Minutes | | Housing | Molded Plastic | | | | Connector | 6-Pin Connector for Shure MX405, MX410, and MX415 | | Configuration | Unbalanced | | Impedance | >20 kOhms | | | | Antenna Type | Integrated PIFA | | Impedance | 50 Ohms | | Occupied Bandwidth | <200 kHz | | Modulation Type | Shure Proprietary Digital | | Power | 1 mW, 10 mW, and 20 mW | | Dimensions (H x W x D) | 5.4 x 3.1 x 1.6" / 137 x 78 x 41 mm | | Weight | 10.3 oz / 293 g with 2 AA Batteries |
Rating90% users recommend this product to others. And what about you?
This product has already been rated by 26 owners. Add your rating and experience with the product.
