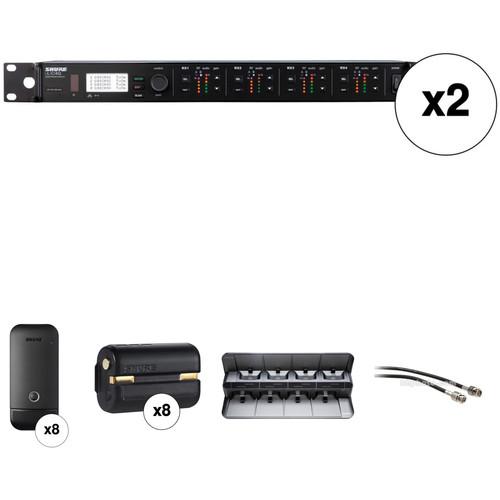

User Manual for Shure ULXDQ 8-Channel Wireless Receiver and Cardioid Boundary Microphone Kit

• Product category: Wireless Systems Shure
• Brand: Shure
• Description and content of package
• Technical information and basic settings
• Frequently asked questions – FAQ
• Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
• Authorized service for Shure Wireless Systems

Product description

• 2 x Shure ULXD4Q Quad-Channel Digital Wireless Receiver (H50: 534 to 598 MHz) The ULXD4Q Quad-Channel Digital Wireless Receiver from Shure features 4 wireless channels with independent gain control, LED meters, and XLR outputs. It is tuned to operate in Shure's H50 band from 534 to 598 MHz. The ULXD4Q is capable of handling 24-bit/48 kHz audio and can provide AES-256-bit encryption to assure your wireless signal is kept secure.

  The dual Ethernet ports allow multiple units to share RF signal as well as be networked together and controlled via Shure's Wireless Workbench 6 Software. The Ethernet ports also provide compatibility with the Dante digital networking system. Each of the four channels can provide up to 60 dB of adjustable gain. The dual antennas are capable of digital predictive switching diversity to reduce interference and signal dropouts. The unit can be rack mounted with the included rack hardware.
  • Four receivers in a 1RU metal chassis with internal power supply
  • Individual gain controls, LED meters, and XLR outputs for each channel
  • Up to 64 MHz tuning range (region dependent)
  • Digital predictive switching diversity
  • High Density mode optimizes ULX-D systems to simultaneously operate significantly more channels in applications up to 30 meters
  • RF cascade ports allow distribution of RF signal to another unit
  • Optimized scanning automatically finds, prioritizes, and deploys the cleanest frequencies to transmitters over IR sync
  • Bodypack frequency diversity ensures uninterrupted audio for mission-critical applications
  • Audio summing routes two or more audio channels to combinations of receiver outputs. Use each channel's gain adjustment to reach the desired mix
  • Ethernet networking for streamlined frequency coordination and deployment across multiple receivers
  • Interference detection and alerts provided on both the receiver and WWB6
  • Wireless Workbench 6 (WWB6) software integration for advanced coordination, monitoring, and control
  • AMX/Crestron control
  • Compatible with the AXT600 Axient Spectrum Manager
  • Intuitive front panel LCD menu and controls with lockout feature
  • Upgraded LCD with adjustable contrast and brightness
  • Audio and RF LED meters with peak indicator
  • Switchable mic/line output level
  • Remoteable 1/2 wave antennas
  UPC: 042406339018
• 8 x Shure ULXD6/C-H50 Cardioid Wireless Boundary Microphone Transmitter (H50: 534 to 598 MHz) The ULXD6/C-H50 Cardioid Wireless Boundary Microphone Transmitter from Shure is a low-profile boundary microphone that offers low latency, long transmission range, and runs on two AA alkaline or rechargeable batteries. It can be used when paired with a ULX-D or QLX-D digital receiver to capture audio for meetings, conferences or other live-sound reinforcement applications. Featuring AES 256-bit encryption transmission, the ULXD6 has adjustable RF power, a high-pass filter, and power lock settings. It is designed for quick setup and tear down. Other features include a configurable Mute button (Toggle, Push-to-Mute, Push-to-Talk, Disabled) and Mute LED indicator. In addition, with a long transmission range, up to 300', and a wide selection of (optional) antenna distribution components, the ULXD6 is suitable for use in very large meetings at conference and convention centers. Equipped with the choice of (separately available) rechargeable battery packs or standard AA batteries, this transmitter provides all-day run time.
  • Very low latency makes the ULXD6 ideal for meetings that require live sound reinforcement
  • Long transmission range (up to 300') for reliable performance in very large meetings at conference and convention centers
  • Compatible with the full line of Shure's antennas and distribution components, allowing up to 200 ULXD6 boundary microphone transmitters to be used with just one pair of receiving antennas for efficient setup
  • Compatible with ULX-D and QLX-D digital receivers
  • Optional SB900A rechargeable batteries provide up to 9 hours of runtime
  • Compatible with standard AA alkaline batteries
  • Optional SBC450 (4-bay) and SBC850 (8-bay) Networked Charging Stations allow convenient docking and charging when transmitters are not in use
  • Configurable Mute button (Toggle, Push-to-Mute, Push-to-Talk, disabled) and Mute LED behavior
  • Adjustable RF power, high-pass filter, and power lock settings
  UPC: 042406493529
• 8 x Shure SB900A Lithium-Ion Rechargeable Battery Replacing the previous model, this Shure SB900A Lithium-Ion Rechargeable Battery is the rechargeable powering option for the P3RA and P9RA professional wireless bodypack receivers, as well as the PSM1000 and UR5 portable diversity receivers. It also works with QLX-D and ULX-D digital wireless systems. UPC: 042406469784
• Shure SBC850US 8-Bay Networked Charging Station with Power Supply The SBC850US 8-Bay Networked Charging Station with Power Supply from Shure allows up to 8 ULXD6 or ULXD8 transmitters, equipped with the SB900A rechargeable battery, to be charged quickly and conveniently. The transmitters slide into the charger and the bi-color LEDs confirm the charging status. It is not necessary to remove the SB900A battery. In addition, when connected to a network, the charging status of each transmitter can be viewed remotely. Transmitter settings or firmware can be updated while the transmitters are in the charger using Shure's Wireless Workbench or SystemOn software, or through a third-party room control system.
  • Compatible with ULXD6 and ULXD8 transmitters using Shure rechargeable batteries.
  • Easily adjust transmitter settings using Shure's control software such as Wireless Workbench and external control systems such as AMX or Crestron.
  • Monitor rechargeable battery information such as health, temperature, charge, and cycle using control software.
  • Update transmitter and charger software using Shure's Update Utility.
  UPC: 042406496995
• Shure UA802 Coaxial Antenna Cable Coaxial Antenna Cable, BNC-BNC, RG58C/U type, 2' (0.6m). UPC: 042406053204

• 2 x ULXD4Q Quad-Channel Digital Wireless Receiver (H50: 534 to 598 MHz) zdzcfaqbsxfrwdvrfxtyxs
• Rack Hardware
• Power Supply
• 2 x 1/2 Wave Antennas
• Limited 2-Year Warranty

• 8 x ULXD6/C-H50 Cardioid Wireless Boundary Microphone Transmitter (H50: 534 to 598 MHz)

• 8 x SB900A Lithium-Ion Rechargeable Battery

• SBC850US 8-Bay Networked Charging Station with Power Supply

• UA802 2' BNC-to-BNC Coaxial Antenna Cable

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• 2 x Shure ULXD4Q Quad-Channel Digital Wireless Receiver (H50: 534 to 598 MHz)

  RF Input	Spurious Rejection: > 80 dB, Typical Connector Type: BNC Impedance: 50 Ohms Bias Voltage: 12 to 13 V DC, 150 mA Maximum, Per Antenna
  Cascade Output	Connector Type: BNC (For Connecting of One Additional Receiver in the Same Band) Configuration: Unbalanced, Passive Impedance: 50 Ohms Insertion Loss: 0 dB
  Audio Output	Gain Adjustment Range: -18 to 42 dB (in 1 dB Steps, Plus Mute Setting) 4x Balanced XLR Outputs Impedance: 100 Ohms Line Setting: 18 dBV Mic Setting: -12 dBV Mic/Line Switch: 30 dB Pad Phantom Power Protection: Yes
  Network	Network Interface: Dual Port Ethernet 10/100 Mbps, 1 Gbps, Dante Digital Audio Network Addressing Capability: DHCP or Manual IP Address Maximum Cable Length: 328' (100 m)
  Power Requirement	100 to 240 V AC, 50 to 60 Hz, 0.32 A Maximum
  Dimensions (H x W x D)	1.7 x 18.9 x 10.7" (44 x 482 x 274 mm)
  Weight	7.6 lb (3.45 kg)

  Box Dimensions (LxWxH)	27.0 x 17.7 x 3.6"

• 8 x Shure ULXD6/C-H50 Cardioid Wireless Boundary Microphone Transmitter (H50: 534 to 598 MHz)

  Frequency Band	H50: 534 to 598 MHz
  Polar Pattern	Cardioid
  Gain Offset Range	0 to 21 dB (in 3 dB Steps)
  Battery Type	Shure SB900A Rechargeable Li-Ion or AA Batteries 1.5 V
  Battery Run Time	At 10 mW Shure SB900: Up to 9 Hours 20 Minutes AA Batteries: Up to 8 Hours 40 Minutes
  Housing	Molded Plastic

  Connector	6-Pin Connector for Shure MX405, MX410, and MX415
  Configuration	Unbalanced
  Impedance	>20 kOhms

  Antenna Type	Integrated PIFA
  Impedance	50 Ohms
  Occupied Bandwidth	<200 kHz
  Modulation Type	Shure Proprietary Digital
  Power	1 mW, 10 mW, and 20 mW
  Dimensions (H x W x D)	4.5 x 2.4 x 1.4" / 114 x 62 x 34 mm
  Weight	8.5 oz / 241 g with Batteries

  Box Dimensions (LxWxH)	6.7 x 4.4 x 3.4"

• 8 x Shure SB900A Lithium-Ion Rechargeable Battery

  Box Dimensions (LxWxH)	4.8 x 3.3 x 2.3"

• Shure SBC850US 8-Bay Networked Charging Station with Power Supply

  Charge Time	ULXD6 and ULXD8: 15 minutes = 1 hour runtime; 1 hour = 50% charged; 3 hours = 100% charged
  Network Interface	10/100 Mbps Ethernet
  Power Requirement	15 VDC @ 4.0 A maximum, supplied by external power supply (tip positive)
  Material of Construction	Molded plastic and cast zinc alloy
  Operating Temperature Range	32 to 113°F (0 to 45°C)
  Storage Temperature Range	-20 to 165°F (-29 to 74°C)
  Dimensions (H x W x D)	3.23 x 15.43 x 7.56" (82 x 391.9 x 192.0 mm)
  Weight	5.9 lb ( 2.7 kg)

  Box Dimensions (LxWxH)	17.8 x 14.9 x 4.0"

• Shure UA802 Coaxial Antenna Cable

  Box Dimensions (LxWxH)	6.0 x 6.0 x 1.5"
