User Manual for Shure VP82 End-Address Shotgun Condenser Microphone Click to enlarge the picture
Contents of the user manual for the Shure VP82 End-Address Shotgun Condenser Microphone
- Product category: Shotgun Microphones Shure
- Brand: Shure
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Shure Shotgun Microphones
|
User manual for the Shure VP82 End-Address Shotgun Condenser Microphone contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Shure product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Shure user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Shure product will considerably shorten its lifespan!
|

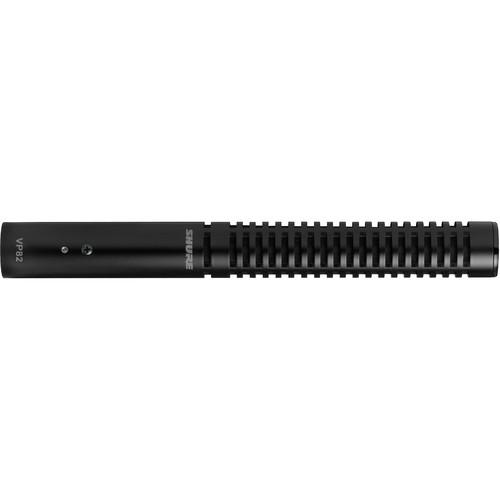

Product description The Shure VP82 End-Address Shotgun Condenser Microphone is compact, lightweight and exhibits natural off-axis sound rejection. The microphone's size, side noise rejection and overall sound are a tailored fit for camera mounted applications, small A/V field recordings and other applications requiring a compact, high-quality shotgun microphone. The microphone ships with a zippered pouch and windscreen. - Integrated preamplifier design (not modular)
- Wide aperture for near-field sound sources
- Provides natural off-axis rejection
- Zipper pouch and foam windscreen (included)
- Compatible with VP89S premium accessories
- Rugged, roadworthy construction
UPC: 042406219167 In the Box Shure VP82 End-Address Shotgun Condenser Microphone Zipper Pouch Foam Windscreen Limited 2-Year Warranty User Manual PDF 12.3mb Table of Contents
|
Upload User Manual
Have you got an user manual for the Shure VP82 End-Address Shotgun Condenser Microphone in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersShure VP82 End-Address Specs | Transducer | Electret Condenser | | Polar Pattern | Supercardioid / lobar | | Frequency Response | 150 to 20,000 Hz | | Dynamic Range (Typical) | @ 1kHz
500 Ω load: 122.5dB 1000 Ω load: 116.5dB | | Clipping Level | @ 1 kHz, 1% THD
2500 Ω load: 7.0 dBV 1000 Ω load: 0.0 dBV | | Signal-to-Noise Ratio | Self Noise (equivalent SPL, A-weighted, typical)
15.0 dB SPL-A | | CMR | 20 to 20,000 Hz
≥ 55 dB | | Operating Temperature | Operating: 0 - 135°F (-18 to 57°C) | | Relative Humidity | 0 to 95% | | Power Requirements | 11-52 V DC phantom power (IEC-61938), < 2.0 mA | | Output Impedance | 144 Ω | | Polarity | Positive pressure on diaphragm produces positive voltage on pin 2 with respect to pin 3 | | Housing | Satin-black vinyl painted aluminum alloy with stainless steel screen | | Weight | 2.9 oz (76g) | | | | Package Weight | 0.8 lb | | Box Dimensions (LxWxH) | 10.0 x 4.9 x 3.4" |
Rating96% users recommend this product to others. And what about you?
This product has already been rated by 19 owners. Add your rating and experience with the product.
