Product description Hands-On Review: the Shure VP83 LensHopper Shotgun Microphones Read More - Shure VP83 LensHopper Shotgun Microphones
- Product Demo

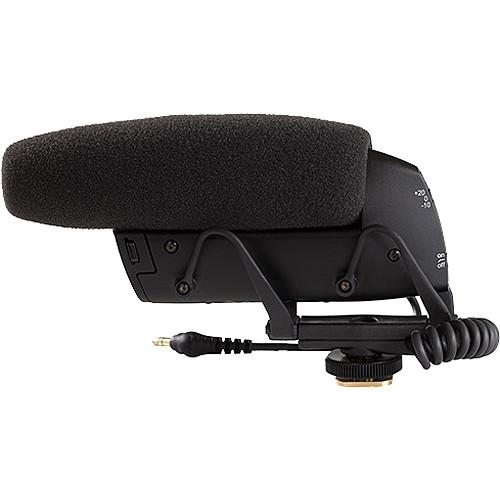

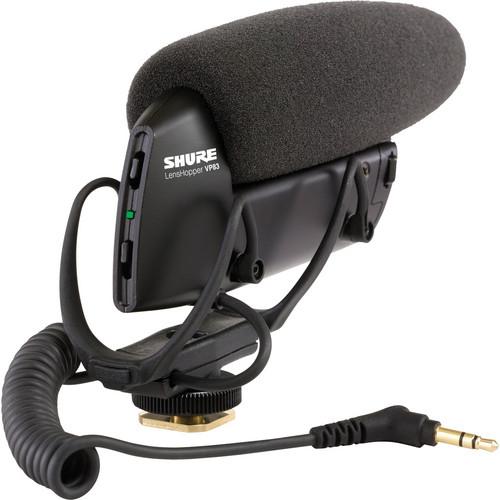

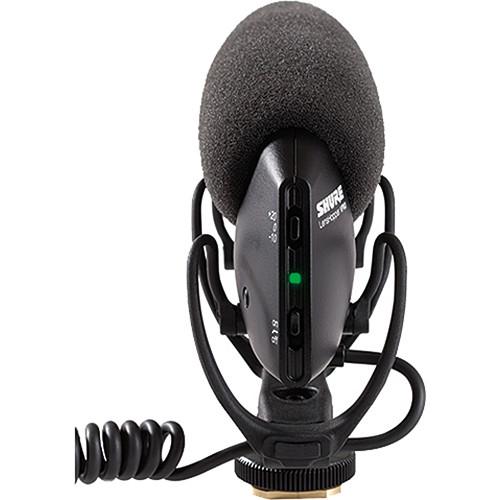

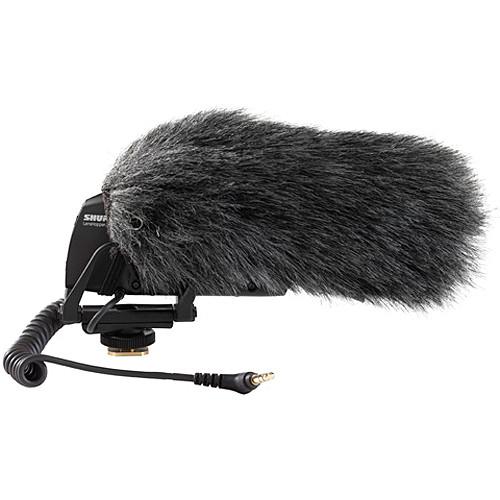

The VP83 LensHopper Shotgun Microphone from Shure is a compact camera-mount condenser that provides detailed, high-definition audio with DSLR cameras and camcorders. An integrated Rycote Lyre shock mounting system provides isolation from vibration and mechanical noise.

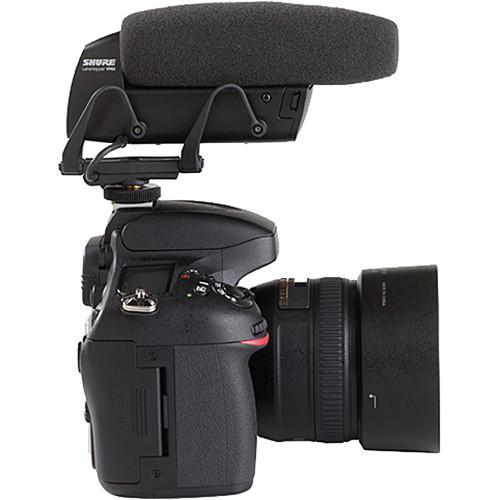

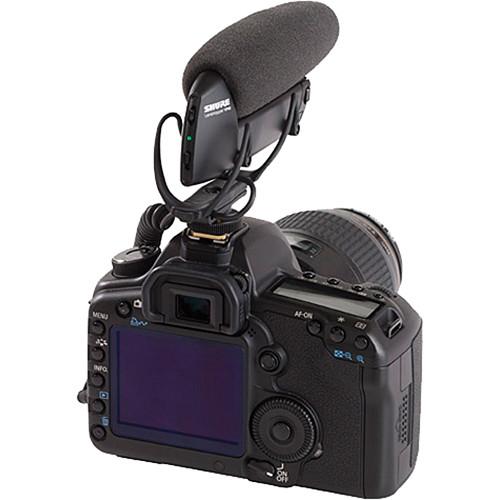

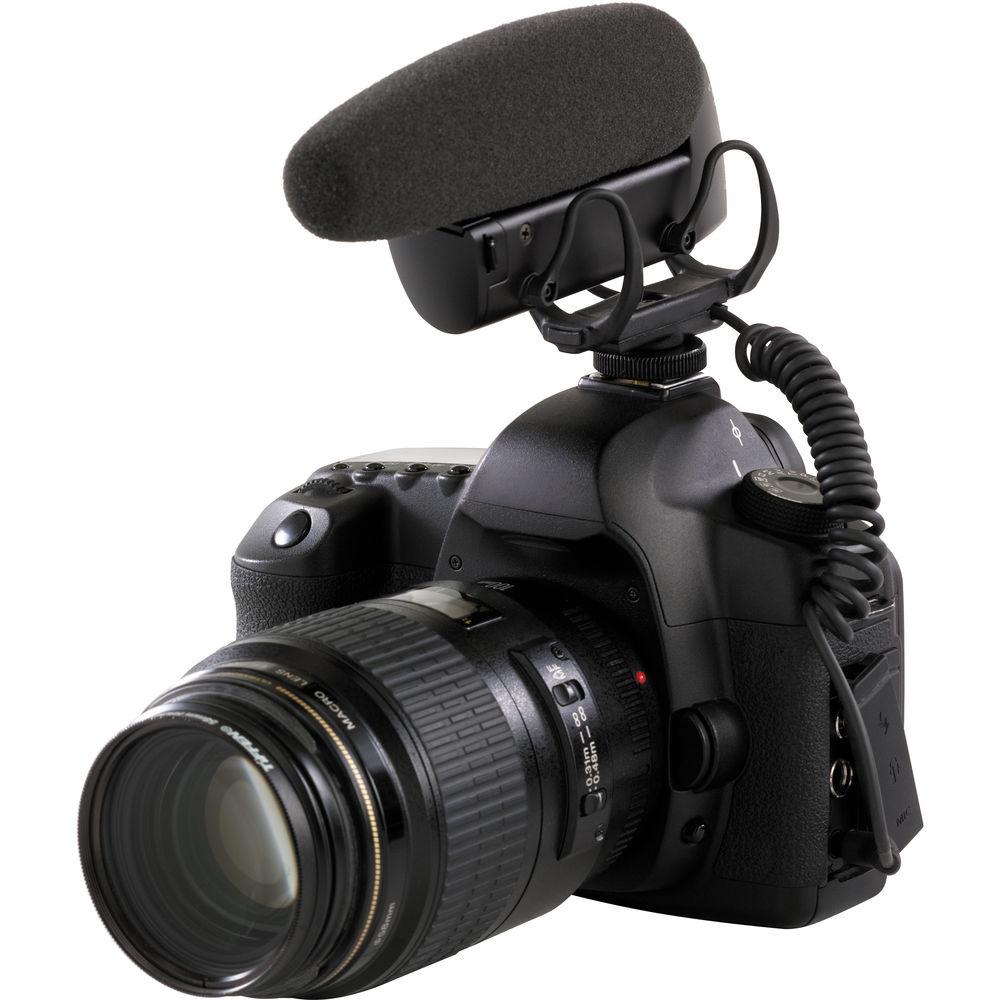

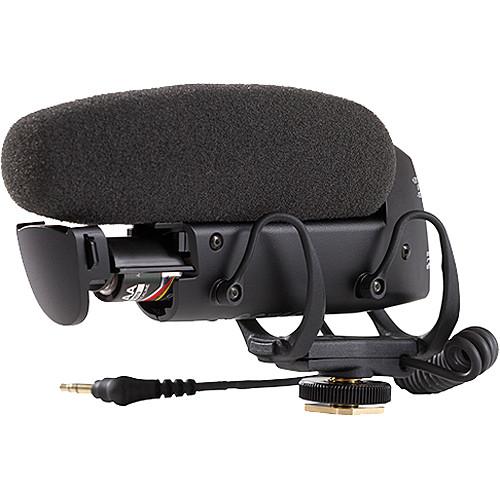

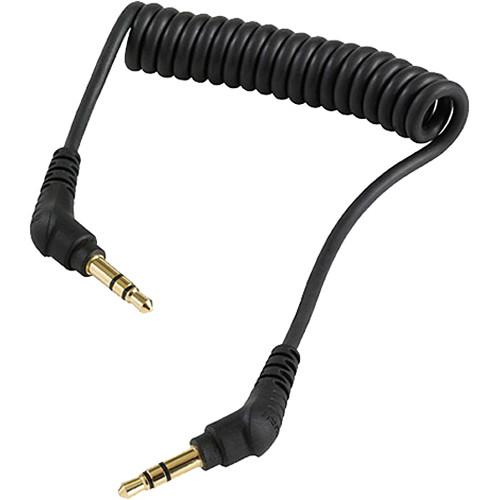

The VP83 LensHopper features an easily accessible three-position gain adjustment and low-cut filter, allowing it to adapt for different recording environments. Its lightweight, yet durable, metal construction provides dependability and long-life. The VP83 easily mounts to a standard-size camera shoe or a 1/4" threaded stand. The convenient, attached 3.5mm cable connects to your camera's audio input. Its efficient operation boasts 130 hours of battery life on just one AA alkaline battery. A foam windscreen is included to guard against wind and environmental noise. - Capture Detailed, Accurate Audio
-
- Full low-end response
- High sensitivity
- Low self-noise
- Wide frequency range
- Highly directional polar pattern
- Effective RF immunity
UPC: 042406276993 In the Box Shure VP83 LensHopper Shotgun Microphone Foam Windscreen Alkaline AA Battery Limited 2-Year Warranty User Manual PDF 2.3mbyveesfaubvxwcq Table of Contents
|
Upload User Manual
Have you got an user manual for the Shure VP83 LensHopper Shotgun Microphone in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersShure VP83 LensHopper Specs | Cartridge Type | Mono Electret condenser | | Frequency Response | 50 Hz to 20 kHz | | Polar Pattern | Supercardioid / lobar | | Output Impedance | 171 Ω | | Sensitivity | Open circuit voltage, @ 1 kHz, typical:
-36.5 dBV/Pa (14.9 mV) | | Maximum SPL | 1000 Ω Load: 129 dB SPL, 1 kHz @ 1% THD | | Signal to Noise Ratio | 76.6 dB | | Dynamic Range | 1000 Ω load: 111.6 dB @ 1 kHZ | | Clipping Level | 1000 Ω load: -2.7 dBV @ 1 kHz, 1% THD | | Self Noise | 17.4 dB SPL-A, equivalent SPL, A-weighted, typical | | Operating Temperature Range | 0 to 135°F (-18 to 57°C) | | Storage Temperature Range | -20 to 165°F (-29 to 75°C) | | Relative Humidity | 0 to 95% | | Polarity | Positive pressure on diaphragm produces positive voltage on the tip and ring relative the sleeve | | Audio Connector | Integrated cable with 1/8" (3.5 mm) TRS connector | | Construction | Aluminum Alloy | | Shock Protection | Integrated Rycote Lyre | | Mounting Compatibility | Standard camera shoe mount
1/4" threaded base | | Battery Requirements | 1 x AA battery | | Battery Life | 130 hours | | Weight | 4.7 oz (133 g) | | | | Package Weight | 1.35 lb | | Box Dimensions (LxWxH) | 10.1 x 5.3 x 4.3" |
Rating94% users recommend this product to others. And what about you?
This product has already been rated by 08 owners. Add your rating and experience with the product.
