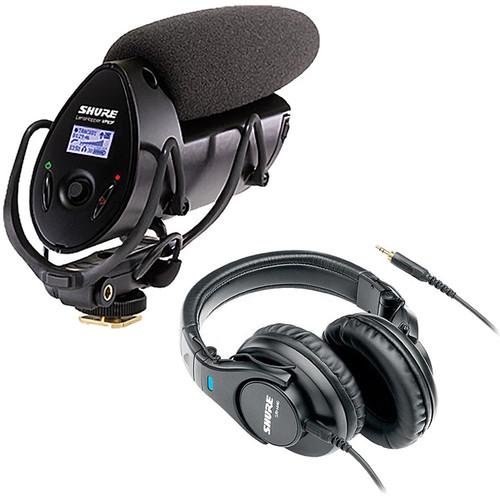

User Manual for Shure VP83F LensHopper Shotgun Mic, Flash Recorder & SRH440 Headphone Kit Click to enlarge the picture
Contents of the user manual for the Shure VP83F LensHopper Shotgun Mic, Flash
- Product category: Shotgun Microphones Shure
- Brand: Shure
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Shure Shotgun Microphones
|
User manual for the Shure VP83F LensHopper Shotgun Mic, Flash contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Shure product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Shure user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Shure product will considerably shorten its lifespan!
|
Product description The Shure VP83F LensHopper Shotgun Mic, Flash Recorder & SRH440 Headphone Kit from includes a compact Shure VP83F camera-mount condenser shotgun with an integrated 24-bit/48 kHz flash recorder and Shure SRH440 around-ear headphones. In addition, a Rycote Lyre shockmount system is also included with the microphone and provides isolation from vibration and mechanical noises. Featuring a one-button recording and an intuitive operating menu, the VP83F easily mounts to a standard-size camera shoe or a 1/4" threaded stand. The backlit LCD screen offers complete activity monitoring from its home screen and includes indicators for the following: audio and battery metering, track information, headphone volume, mic gain, low-cut filter, and remaining recording time. Furthermore, the kit's headphones provide high-quality audio for applications such as studio monitoring or DJ mixing and the large drivers provide clear, detailed audio with a wide frequency response. The closed-backed design helps to reduce ambient noise while the swivel earcups provide easy single-ear monitoring. Finally, the adjustable headband is generously padded and can fit virtually any head size. - Shure VP83F LensHopper Shotgun Microphone with Integrated Flash Recorder
- Shure - VP83F LensHopper Shotgun Microphone
- Product Demo
The VP83F LensHopper Shotgun Microphone with Integrated Flash Recorder from Shure is a compact camera-mount condenser that provides detailed, high-definition audio with DSLR cameras and camcorders. It records 24-bit/48kHz WAV audio files to MicroSDHC cards, supporting capacities up to 32GB. The VP83F also features one-button recording and an intuitive operating menu, making it easy to use. Additionally, an integrated Rycote Lyre shock mounting system provides isolation from vibration and mechanical noise.
The VP83F LensHopper features a 60dB gain range, adjustable in 1dB increments, as well as a low-cut filter for adapting to different recording environments. Its lightweight, yet durable, metal construction provides dependability and long-life. The VP83F easily mounts to a standard-size camera shoe or a 1/4" threaded stand. The detachable 3.5mm cable connects to your camera's audio input, while the stereo headphone output allows you to monitor incoming audio. Despite its extensive functionality, the VP83F offers 10 hours of battery life on two AA alkaline batteries. A foam windscreen is included to guard against wind and environmental noise. - Easy-to-Read Menu Display
- The backlit LCD screen features complete activity monitoring from its home screen, including indicators for audio and battery metering, track information, headphone volume, mic gain, low-cut filter and remaining recording time.
- Joystick Control
- The VP83F has a five-position joystick that provides advanced user controls for headphone monitoring, low-cut filter and mic gain adjustments, track management, and playback.
UPC: 042406277006 - Shure SRH440 Professional Around-Ear Stereo Headphones
- Shure - VP83F LensHopper Shotgun Microphone
- Product Demo
The SRH440 around-ear headphones from Shure provide high-quality audio ideal for professional applications, such as studio monitoring or DJ mixing. The headphones have large drivers that provide clear, detailed audio with a wide frequency response. The closed-back design helps to reduce ambient noise while the swivel earcups provide easy single-ear monitoring. The headphones can also fold down for easy storage in the included carrying bag.
The thick around-ear cushions provide long-lasting comfort and are easily replaced. The adjustable headband is generously padded and can fit virtually any head size. The coiled, single-sided cable provides a variable amount of slack and is resistant to tangles. It can also be detached for easy replacement, and has a bayonet clip to keep it securely attached to the earcup. The gold-plated 3.5mm mini plug and 1/4" adapter provide wide compatibility with MP3 players, CD players, computers, and more. - Ideal for professional applications such as studio monitoring or DJ mixing
- Foldable design for easy transportation
- Swivel earcups for single-ear monitoring
- Closed-back design for excellent noise isolation
- Thick around-ear cushions provide long-lasting comfort and can be easily replaced
- Adjustable, padded headband fits virtually any head size
- Single-sided coiled cable provides a variable amount of slack and can be detached for easy replacement. A bayonet clip keeps the cable attached securely to the earcup
- Gold-plated 3.5mm stereo mini plug with 1/4" adapter for wide compatibility
UPC: 042406168601 In the Box - VP83F LensHopper Shotgun Microphone with Integrated Flash Recorder
- Foam Windscreen
- Gold-Plated 1/8" (3.5mm) Audio Cable
- 2 x Alkaline AA Battery
- Limited 2-Year Warranty
- SRH440 Professional Around-Ear Stereo Headphones
Table of Contents
|
Upload User Manual
Have you got an user manual for the Shure VP83F LensHopper Shotgun Mic, Flash Recorder & SRH440 Headphone Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - Shure VP83F LensHopper Shotgun Microphone with Integrated Flash Recorder
| Cartridge Type | Electret condenser | | Frequency Response | 50 Hz to 20 kHz | | Recording Format | 24-bit / 48 kHz WAV files | | Polar Pattern | Supercardioid / lobar | | Output Impedance | Camera Output: 47 Ω
Headphone Output: 5 Ω | | Sensitivity | Open circuit voltage, @ 1 kHz, typical:
0 dB gain selection: -35.8 dBV/Pa (16.2 mV)
+30 dB gain selection: -5.8 dBV/Pa (512.9 mV) | | Maximum SPL | 0 dB gain selection, 1 kHz at 1% THD, 1000Ω load:
129 dB SPL | | Signal to Noise Ratio | +30 dB gain selection:
78 dB | | Self Noise | Equivalent SPL, A-weighted, typical, +30 dB gain selection:
15.6 dB SPL-A | | Operating Temperature | 0 to 145°F (-18 to 60°C) | | Storage Temperature | -20 to 165°F (-29 to 74°C) | | Relative Humidity | 0 to 95% | | Audio Connector | Detachable cable with 1/8" (3.5 mm) TRS connector
dual mono, unbalanced | | Output | Camera Connector: 1 x 1/8" (3.5 mm) dual mono unbalanced
Headphone Connector: 1 x 1/8" (3.5 mm) dual mono | | Shock Protection | Integrated Rycote Lyre | | Mounting Compatibility | Standard camera shoe mount
1/4" threaded base | | Battery Requirements | 2 x AA battery (alkaline, NiMH, rechargeable Li-Ion) | | Battery Life | 10 hours (record mode) | | Housing | Cast aluminum | | Weight | 7.6 oz (215 g) | | | | Box Dimensions (LxWxH) | 10.0 x 5.8 x 4.5" | - Shure SRH440 Professional Around-Ear Stereo Headphones
| | | Driver Type | Dynamic | | Design | Over-Ear (Circumaural) | | Earcup Style | Closed-Back | | | | Frequency Response | 10 Hz to 22 kHz | | Sensitivity | 105 dB | | Impedance | 44 Ohms | | Maximum Power Handling | 500 mW | | | | Audio Connector | 1/8" (3.5 mm) TRS | | Connector Plating | Gold | | | | Cable Length | 9.8' / 2.99 m | | | | Box Dimensions (LxWxH) | 9.5 x 8.7 x 4.6" |
